API Keys and Credentials

Api keys and other credentials will be used for the merchant to connect Pesaswap services like REST API, card payment checkout pages and woocommerce plugins from several payment processors.

How to view API Keys and Credentials?

Description	Screenshot
1.) Goto Profile and Click "API Keys and Credentials"
2.) You can now see "API Keys and Credentials". Note: Merchant can only view the credentials after required docs submission.

Account Balance

An API intended to show your actual payment processor balance. Note: typically the query might take up to 30 seconds before it can fully process the request and give back the response from mpesa. It is due to mpesa asynchronous approach. we never know exactly when they send us back the response. So the query will ping the backend and will check if the callback has been received, and then show it to the merchant.

Mpesa Account Balance Request Parameters

Method: POST

Parameter	Description	Mandatory
consumer_key	This serves as an api username. You can request this key from administrator or please contact us for more details.	Yes
api_key	This serves as an api user password. You can request this key from administrator or please contact us for more details.	Yes
PartyA	Paybill Number	Yes
paybill_description	Every api must have an admin settings. You can request this key from administrator or please contact us for more details.	Yes

How to connect into Pesaswap MPesa Account Balance API?

You needed the API and Consumer Key as well as the Paybill Description.

Sandbox: https://devpesaswap.azurewebsites.net/api/mpesa/account-balance

Production: https://www.pesaswap.com/api/mpesa/account-balance

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

											$url = BASE URL;

											$curl_init();

											curl_setopt($curl, CURLOPT_URL, $url);
											curl_setopt($curl, CURLOPT_HTTPHEADER, array('Content-Type:application/json'));

											$curl_post_data = array(

											'consumer_key' => '',

											'api_key' => '',

											'PartyA' => '',

											'paybill_description' => '',

											);

											$data_string = json_encode($curl_post_data);

											curl_setopt($curl, CURLOPT_RETURNTRANSFER, true);

											curl_setopt($curl, CURLOPT_POST, true);

											curl_setopt($curl, CURLOPT_POSTFIELDS, $data_string);

											$curl_response = curl_exec($curl);

											$response = json_decode($curl_response,true);

Mpesa Account Balance Request Response - successful request

Name	Description	Sample Value
Mpesa balance	Mpesa balance	{ "Result": { "ResultType": 0, "ResultCode": 0, "ResultDesc": "The service request is processed successfully.", "OriginatorConversationID": "29757-156200000-1", "ConversationID": "AG_20210621_000079a8af797ec69XXX", "TransactionID": "PFL0000000", "ResultParameters": { "ResultParameter": [ { "Key": "AccountBalance", "Value": "Working Account\|KES\|0.00\|0.00\|0.00\|0.00&Utility Account\|KES\|17167162.00\|17167162.00\|0.00\|0.00&Charges Paid Account\|KES\|0.00\|0.00\|0.00\|0.00&Organization Settlement Account\|KES\|0.00\|0.00\|0.00\|0.00" }, { "Key": "BOCompletedTime", "Value": 20210621142339 } ] }, "ReferenceData": { "ReferenceItem": { "Key": "QueueTimeoutURL", "Value": "https://internalapi.safaricom.co.ke/mpesa/abresults/v1/submit" } } } }

Mpesa Account Balance Error Response

Name	Description	Sample Value
error	An error will be shown if parameter is not correct.	{ "error": "Invalid Credentials. Please Check your consumer_key and api_key." }
error	Invalid PartyA	{ "requestId": "81477-15653648-1", "errorCode": "400.002.02", "errorMessage": "Bad Request - Invalid PartyA" }

Note: To be discarded anytime sooner. We recommend for new users to use our latest API to benefit the more enhanced security feature. Lastest AIRTEL API here.

Airtel Collection Payment API

Steps on how to connect Airtel Collection Payment API

Please login to production site or sandbox site portal as merchant.

To view the consumer and api keys, click the user icon on upper right menu and select API Key
- Note: Merchant needs to submit all the required documents first for KYC purposes before it can access the api and consumer keys.

Please see sample code below and parameter's definition.

Sandbox: https://devpesaswap.azurewebsites.net/api/airtel-collection-payment

Production: https://www.pesaswap.com/api/airtel-collection-payment

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

												$url = BASE URL;

												$curl_init();

												curl_setopt($curl, CURLOPT_URL, $url);
												curl_setopt($curl, CURLOPT_HTTPHEADER, array('Content-Type:application/json'));




												$curl_post_data = array(

												'consumer_key' => '',

												'api_key' => '',

												'transaction_external_id' => '',

												'msisdn' => '',

												'amount' => '',

												'country' => 'KE',

												'currency' => 'KES'

												);



												$data_string = json_encode($curl_post_data);

												curl_setopt($curl, CURLOPT_RETURNTRANSFER, true);

												curl_setopt($curl, CURLOPT_POST, true);

												curl_setopt($curl, CURLOPT_POSTFIELDS, $data_string);

												$curl_response = curl_exec($curl);

												$response = json_decode($curl_response,true);





Airtel Collection Payment API Parameters Definition

Method: POST

Parameter	Description	Mandatory
consumer_key	This serves as an api username. You can request this key from administrator or please contact us for more details.	Yes
api_key	This serves as an api user password. You can request this key from administrator or please contact us for more details.	Yes
transaction_external_id	Ideally a GUID / UUID format. This will be used for future queries like knowing what's the actual status of your payment transaction. We have three(3) transaction statuses. Pending, Completed and Failed.	Yes
msisdn	Receiver's paybill.	Yes
amount	Amount.	Yes
country	Country code.	Yes
currency	Money currency code.	Yes

Airtel Collection Payment API Success Response

Description	Sample Value
You will receive a json format showing success result.	{ "data": { "transaction": { "id": "UdYjGxLgDKwkyHpzkfSr", "status": "Success." } }, "status": { "code": "200", "success": true, "result_code": "ESB000010", "message": "Success." } }

Airtel Collection Payment API Error Response

Description	Sample Value
You will receive a json format showing error result.	{ "status": { "code": "500", "success": false, "result_code": "ESB000033", "message": "Invalid msisdn. It should be of 9 digits only." } }

Airtel Collection Refund API

Steps on how to connect Airtel Collection Refund API

Please login to production site or sandbox site portal as merchant.

To view the consumer and api keys, click the user icon on upper right menu and select API Key
- Note: Merchant needs to submit all the required documents first for KYC purposes before it can access the api and consumer keys.

Please see sample code below and parameter's definition.

Sandbox: https://devpesaswap.azurewebsites.net/api/airtel-collection-refund

Production: https://www.pesaswap.com/api/airtel-collection-refund

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

												$url = BASE URL;

												$curl_init();

												curl_setopt($curl, CURLOPT_URL, $url);
												curl_setopt($curl, CURLOPT_HTTPHEADER, array('Content-Type:application/json'));

												$curl_post_data = array(

												'consumer_key' => '',

												'api_key' => '',

												'transaction_external_id' => '',

												'original_transaction_external_id' => ''

												);

												$data_string = json_encode($curl_post_data);

												curl_setopt($curl, CURLOPT_RETURNTRANSFER, true);

												curl_setopt($curl, CURLOPT_POST, true);

												curl_setopt($curl, CURLOPT_POSTFIELDS, $data_string);

												$curl_response = curl_exec($curl);

												$response = json_decode($curl_response,true);

Airtel Collection Refund API Parameters Definition

Method: POST

Parameter	Description	Mandatory
consumer_key	This serves as an api username. You can request this key from administrator or please contact us for more details.	Yes
api_key	This serves as an api user password. You can request this key from administrator or please contact us for more details.	Yes
transaction_external_id	Ideally a GUID / UUID format. This will be used for future queries like knowing what's the actual status of your payment transaction. We have three(3) transaction statuses. Pending, Completed and Failed.	Yes
original_transaction_external_id	The original collection payment that you want to refund.	Yes

Airtel Collection Refund API Success Response

Description	Sample Value
You will receive a json format showing success result.	{ "data": { "transaction": { "airtel_money_id": "24510493008", "status": "SUCCESS" } }, "status": { "code": "200", "success": true, "result_code": "ESB000010", "message": "SUCCESS" } }

Airtel Collection Refund API Error Response

Description	Sample Value
You will receive a json format showing error result.	{ "status": { "code": "500", "success": false, "result_code": "1132", "message": "The Request ID is invalid/Already processed." } }

Airtel Collection Transaction Inquiry API

Steps on how to connect Airtel Collection Transaction Inquiry API

Please login to production site or sandbox site portal as merchant.

To view the consumer and api keys, click the user icon on upper right menu and select API Key
- Note: Merchant needs to submit all the required documents first for KYC purposes before it can access the api and consumer keys.

Please see sample code below and parameter's definition.

Sandbox: https://devpesaswap.azurewebsites.net/api/airtel-collection-transaction-inquiry

Production: https://www.pesaswap.com/api/airtel-collection-transaction-inquiry

1
2
3
4
5

6
7
8
9
10
11
12
13
14

											$url = BASE URL;

											$dataArray = array('consumer_key'=>'',

											'api_key'=>'',

											'transaction_external_id'=>''

											);

											$ch = curl_init();

											$data = http_build_query($dataArray);

											$getUrl = $url."?".$data;

											curl_setopt($ch, CURLOPT_SSL_VERIFYPEER, FALSE);

											curl_setopt($ch, CURLOPT_FOLLOWLOCATION, TRUE);

											curl_setopt($ch, CURLOPT_RETURNTRANSFER, TRUE);

											curl_setopt($ch, CURLOPT_URL, $getUrl);

											curl_setopt($ch, CURLOPT_TIMEOUT, 80);

											$response = curl_exec($ch);

Airtel Collection Transaction Inquiry API Parameters Definition

Method: GET

Parameter	Description	Mandatory
consumer_key	This serves as an api username. You can request this key from administrator or please contact us for more details.	Yes
api_key	This serves as an api user password. You can request this key from administrator or please contact us for more details.	Yes
transaction_external_id	The transaction_external_id of the original transaction you want to view.	Yes

Airtel Collection Transaction Inquiry API Success Response

Description	Sample Value
You will receive a json format showing success result.	{ "data": { "transaction": { "airtel_money_id": "24510509168", "id": "o3ZOkWCuvJBmCzNbLRcp", "message": "Your transaction has been successfully processed", "status": "TS" } }, "status": { "code": "200", "success": true, "result_code": "ESB000010", "message": "SUCCESS" } }

Airtel Collection Transaction Inquiry API Error Response

Description	Sample Value
You will receive a json format showing error result.	{ "error": "Invalid Credentials. Please Check your consumer_key and api_key." }

Airtel Disbursement Payment API

Steps on how to connect Airtel Disbursement Payment API

Please login to production site or sandbox site portal as merchant.

To view the consumer and api keys, click the user icon on upper right menu and select API Key
- Note: Merchant needs to submit all the required documents first for KYC purposes before it can access the api and consumer keys.

Please see sample code below and parameter's definition.

Sandbox: https://devpesaswap.azurewebsites.net/api/airtel-disburse-payment

Production: https://www.pesaswap.com/api/airtel-disburse-payment

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

												$url = BASE URL;

												$curl_init();

												curl_setopt($curl, CURLOPT_URL, $url);
												curl_setopt($curl, CURLOPT_HTTPHEADER, array('Content-Type:application/json'));




												$curl_post_data = array(

												'consumer_key' => '',

												'api_key' => '',

												'transaction_external_id' => '',

												'msisdn' => '',

												'amount' => '',

												'country' => 'KE',

												'currency' => 'KES'

												);



												$data_string = json_encode($curl_post_data);

												curl_setopt($curl, CURLOPT_RETURNTRANSFER, true);

												curl_setopt($curl, CURLOPT_POST, true);

												curl_setopt($curl, CURLOPT_POSTFIELDS, $data_string);

												$curl_response = curl_exec($curl);

												$response = json_decode($curl_response,true);





Airtel Disbursement Payment API Parameters Definition

Method: POST

Parameter	Description	Mandatory
consumer_key	This serves as an api username. You can request this key from administrator or please contact us for more details.	Yes
api_key	This serves as an api user password. You can request this key from administrator or please contact us for more details.	Yes
transaction_external_id	Ideally a GUID / UUID format. This will be used for future queries like knowing what's the actual status of your payment transaction. We have three(3) transaction statuses. Pending, Completed and Failed.	Yes
msisdn	Receiver's paybill.	Yes
amount	Amount.	Yes
country	Country code.	Yes
currency	Money currency code.	Yes

Airtel Disbursement Payment API Success Response

Description	Sample Value
You will receive a json format showing success result.	{ "data": { "transaction": { "reference_id": "24510509419", "airtel_money_id": "disburs-G54PSUOEUS-94REsO5Yt9jscp97qSpN", "id": "94REsO5Yt9jscp97qSpN" } }, "status": { "code": "200", "success": true, "result_code": "ESB000010", "message": "24XXXXXXXXX. Ksh 150 deposited to fname lastname 07XXXXXXXX on 18/08/21 at 01:36 PM. New float balance is Ksh 57,804." } }

Airtel Disbursement Payment API Error Response

Description	Sample Value
You will receive a json format showing error result.	{ "status": { "code": "500", "success": false, "result_code": "0000900", "message": "Invalid Msisdn Length. Msisdn Length should be 9" } }

Airtel Disbursement Refund API

Steps on how to connect Airtel Disbursement Refund API

Please login to production site or sandbox site portal as merchant.

To view the consumer and api keys, click the user icon on upper right menu and select API Key
- Note: Merchant needs to submit all the required documents first for KYC purposes before it can access the api and consumer keys.

Please see sample code below and parameter's definition.

Sandbox: https://devpesaswap.azurewebsites.net/api/airtel-disburse-refund

Production: https://www.pesaswap.com/api/airtel-disburse-refund

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

												$url = BASE URL;

												$curl_init();

												curl_setopt($curl, CURLOPT_URL, $url);
												curl_setopt($curl, CURLOPT_HTTPHEADER, array('Content-Type:application/json'));

												$curl_post_data = array(

												'consumer_key' => '',

												'api_key' => '',

												'transaction_external_id' => '',

												'source_disburse_transaction_external_id' => ''

												);

												$data_string = json_encode($curl_post_data);

												curl_setopt($curl, CURLOPT_RETURNTRANSFER, true);

												curl_setopt($curl, CURLOPT_POST, true);

												curl_setopt($curl, CURLOPT_POSTFIELDS, $data_string);

												$curl_response = curl_exec($curl);

												$response = json_decode($curl_response,true);

Airtel Disbursement Refund API Parameters Definition

Method: POST

Parameter	Description	Mandatory
consumer_key	This serves as an api username. You can request this key from administrator or please contact us for more details.	Yes
api_key	This serves as an api user password. You can request this key from administrator or please contact us for more details.	Yes
transaction_external_id	Ideally a GUID / UUID format. This will be used for future queries like knowing what's the actual status of your payment transaction. We have three(3) transaction statuses. Pending, Completed and Failed.	Yes
source_disburse_transaction_external_id	The original disbursement payment that you want to refund.	Yes

Airtel Disbursement Refund API Success Response

Description	Sample Value
You will receive a json format showing success result.	{ "data": { "transaction": { "airtel_money_id": "disburs-G54PSUOEUS-1jiXGaJr3APcomnhCKgB" } }, "status": { "code": "200", "success": true, "result_code": "ESB000010", "message": "Success" } }

Airtel Collection Refund API Error Response

Description	Sample Value
You will receive a json format showing error result.	{ "status": { "code": "500", "success": false, "result_code": "0000900", "message": "The Request ID is invalid/Already processed." } }

Airtel Disbursement Transaction Inquiry API

Steps on how to connect Airtel Disbursement Transaction Inquiry API

Please login to production site or sandbox site portal as merchant.

To view the consumer and api keys, click the user icon on upper right menu and select API Key
- Note: Merchant needs to submit all the required documents first for KYC purposes before it can access the api and consumer keys.

Please see sample code below and parameter's definition.

Sandbox: https://devpesaswap.azurewebsites.net/api/airtel-disburse-transaction-inquiry

Production: https://www.pesaswap.com/api/airtel-disburse-transaction-inquiry

1
2
3
4
5

6
7
8
9
10
11
12
13
14

											$url = BASE URL;

											$dataArray = array('consumer_key'=>'',

											'api_key'=>'',

											'transaction_external_id'=>''

											);

											$ch = curl_init();

											$data = http_build_query($dataArray);

											$getUrl = $url."?".$data;

											curl_setopt($ch, CURLOPT_SSL_VERIFYPEER, FALSE);

											curl_setopt($ch, CURLOPT_FOLLOWLOCATION, TRUE);

											curl_setopt($ch, CURLOPT_RETURNTRANSFER, TRUE);

											curl_setopt($ch, CURLOPT_URL, $getUrl);

											curl_setopt($ch, CURLOPT_TIMEOUT, 80);

											$response = curl_exec($ch);

Airtel Disbursement Transaction Inquiry API Parameters Definition

Method: GET

Parameter	Description	Mandatory
consumer_key	This serves as an api username. You can request this key from administrator or please contact us for more details.	Yes
api_key	This serves as an api user password. You can request this key from administrator or please contact us for more details.	Yes
transaction_external_id	The transaction_external_id of the original transaction you want to view.	Yes

Airtel Disbursement Transaction Inquiry API Success Response

Description	Sample Value
You will receive a json format showing success result.	{ "data": { "transaction": { "id": "4SbPZrvhd60WM1Gk39Yq", "message": "Success", "status": "TS" } }, "status": { "code": "200", "success": true, "result_code": "ESB000010", "message": "SUCCESS" } }

Airtel Disbursement Transaction Inquiry API Error Response

Description	Sample Value
You will receive a json format showing error result.	{ "status": { "code": "500", "success": false, "result_code": "0000900", "message": "Internal server error" } }

Airtel API - Recommended

Download the AIRTEL API postman collection here.

Header Tokenization API Call

Steps on how to generate header token.

Please login to production site or sandbox site portal as merchant.

To view the consumer and api keys and other credentials, click the user icon on upper right menu and select API Keys and Credentials
- Note: Merchant needs to submit all the required documents first for KYC purposes before it can access the api and consumer keys.

Please see sample code below and parameter's definition.

Header Tokenization Request Parameter - JSON Body

Sandbox: https://devpesaswap-csharp.azurewebsites.net/api/tokenization
Production: https://api.pesaswap.com/api/tokenization

Method: POST

Parameter	Description	Mandatory
ConsumerKey	This serves as an api username. You can request this key from administrator or please contact us for more details.	Yes
ApiKey	This serves as an api user password. You can request this key from administrator or please contact us for more details.	Yes

Sample Body in JSON

Description	Value
Body: JSON RAW Parameter	{ "ConsumerKey":"your-ConsumerKey", "ApiKey":"your-ApiKey" }

Successful request

Description	Sample Value
Success response	{ "accessToken": "eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJodHRwOi8vc2NoZW1hcy54bWxzb2FwLm9yZy93cy8yMDA1LzA1L2lkZW50aXR5L2NsYWltcy9uYW1lIjoiUG93ZXJlZCBCeSBKV1QgVGVjaG5vbG9neSIsImV4cCI6MTY0NzUyOTUxMSwiaXNzIjoiaHR0cHM6Ly9kZXZwZXNhc3dhcC1jc2hhcnAuYXp1cmV3ZWJzaXRlcy5uZXQvIiwiYXVkIjoiaHR0cHM6Ly9kZXZwZXNhc3dhcC1jc2hhcnAuYXp1cmV3ZWJzaXRlcy5uZXQvIn0.aDQLlboozcqWFiUsMF25HdWua3QDITDqS3VmZsyVQQA", "expiry": "Thu, 01 Dec 2022 15:05:11 UTC" }
Token Expiration	1 Hour

Description

Sample Value

Success response

{
"accessToken": "eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJodHRwOi8vc2NoZW1hcy54bWxzb2FwLm9yZy93cy8yMDA1LzA1L2lkZW50aXR5L2NsYWltcy9uYW1lIjoiUG93ZXJlZCBCeSBKV1QgVGVjaG5vbG9neSIsImV4cCI6MTY0NzUyOTUxMSwiaXNzIjoiaHR0cHM6Ly9kZXZwZXNhc3dhcC1jc2hhcnAuYXp1cmV3ZWJzaXRlcy5uZXQvIiwiYXVkIjoiaHR0cHM6Ly9kZXZwZXNhc3dhcC1jc2hhcnAuYXp1cmV3ZWJzaXRlcy5uZXQvIn0.aDQLlboozcqWFiUsMF25HdWua3QDITDqS3VmZsyVQQA",
"expiry": "Thu, 01 Dec 2022 15:05:11 UTC"
}

Token Expiration

1 Hour

Error Response

Description	Sample Value
Unauthorized	Http error 401

AIRTEL Collection Payment API Call

Steps on how to connect AIRTEL Collection Payment API.

AIRTEL Collection Payment API - JSON Body

Sandbox: https://devpesaswap-csharp.azurewebsites.net/api/airtel-collection-payment
Production: https://api.pesaswap.com/api/airtel-collection-payment

Method: POST

Parameter	Description	Mandatory
MerchantIdentifier	your-MerchantIdentifier	Yes
TransactionExternalId	TransactionExternalId	Yes
Msisdn	Airtel phonenumber.	Yes
Amount	1	Yes
Country	KE	Yes
Currency	KES	Yes

Sample Body in JSON

Description	Value
Body: JSON RAW Parameter	{ "MerchantIdentifier":"MerchantIdentifier", "TransactionExternalId":"TransactionExternalId", "Msisdn":"123456789", "Amount": "1", "Country": "KE", "Currency": "KES" }

Sample Header

Description	Value
Content-Type	application/json
Authorization	Bearer eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJodHRwOi8vc2NoZW1hcy54bWxzb2FwLm9yZy93cy8yMDA1LzA1L2lkZW50aXR5L2NsYWltcy9uYW1lIjoiUG93ZXJlZCBCeSBKV1QgVGVjaG5vbG9neSIsImV4cCI6MTY0NzE0ODU1NCwiaXNzIjoiaHR0cHM6Ly9hcGkucGVzYXN3YXAuY29tLyIsImF1ZCI6Imh0dHBzOi8vYXBpLnBlc2Fzd2FwLmNvbS8ifQ.iNVIYmsGj10V5gjUPbEF7OPYfsodgp63DIiJaxEeyWY

Successful request

Description	Sample Value
Success response	{ "responseDescription": "Success." }

Error Response

Description	Sample Value
Error response	{ "error": "Duplicate transaction_external_id." }

AIRTEL Collection Refund API Call

Steps on how to connect AIRTEL Collection Refund API.

AIRTEL Collection Refund API - JSON Body

Sandbox: https://devpesaswap-csharp.azurewebsites.net/api/airtel-collection-refund
Production: https://api.pesaswap.com/api/airtel-collection-refund

Method: POST

Parameter	Description	Mandatory
MerchantIdentifier	your-MerchantIdentifier	Yes
OriginalTransactionExternalId	OriginalTransactionExternalId	Yes
TransactionExternalId	TransactionExternalId	Yes

Sample Body in JSON

Description	Value
Body: JSON RAW Parameter	{ "MerchantIdentifier":"MerchantIdentifier", "OriginalTransactionExternalId":"OriginalTransactionExternalId", "TransactionExternalId":"TransactionExternalId" }

Sample Header

Description	Value
Content-Type	application/json
Authorization	Bearer eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJodHRwOi8vc2NoZW1hcy54bWxzb2FwLm9yZy93cy8yMDA1LzA1L2lkZW50aXR5L2NsYWltcy9uYW1lIjoiUG93ZXJlZCBCeSBKV1QgVGVjaG5vbG9neSIsImV4cCI6MTY0NzE0ODU1NCwiaXNzIjoiaHR0cHM6Ly9hcGkucGVzYXN3YXAuY29tLyIsImF1ZCI6Imh0dHBzOi8vYXBpLnBlc2Fzd2FwLmNvbS8ifQ.iNVIYmsGj10V5gjUPbEF7OPYfsodgp63DIiJaxEeyWY

Successful request

Description	Sample Value
Success response	{ "responseDescription": "Success." }

Error Response

Description	Sample Value
Error response	{ "error": "Duplicate transaction_external_id." }

AIRTEL Collection Transaction Inquiry API Call

Steps on how to connect AIRTEL Collection Transaction Inquiry API.

AIRTEL Collection Transaction Inquiry API - JSON Body

Sandbox: https://devpesaswap-csharp.azurewebsites.net/api/airtel-collection-transaction-inquiry
Production: https://api.pesaswap.com/api/airtel-collection-transaction-inquiry

Method: GET

Parameter	Description	Mandatory
TransactionExternalId	TransactionExternalId	Yes

Sample Body in JSON

Description	Value
Body: JSON RAW Parameter	{ "TransactionExternalId":"TransactionExternalId" }

Sample Header

Description	Value
Content-Type	application/json
Authorization	Bearer eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJodHRwOi8vc2NoZW1hcy54bWxzb2FwLm9yZy93cy8yMDA1LzA1L2lkZW50aXR5L2NsYWltcy9uYW1lIjoiUG93ZXJlZCBCeSBKV1QgVGVjaG5vbG9neSIsImV4cCI6MTY0NzE0ODU1NCwiaXNzIjoiaHR0cHM6Ly9hcGkucGVzYXN3YXAuY29tLyIsImF1ZCI6Imh0dHBzOi8vYXBpLnBlc2Fzd2FwLmNvbS8ifQ.iNVIYmsGj10V5gjUPbEF7OPYfsodgp63DIiJaxEeyWY

Successful request

Description	Sample Value
Success response	{ "responseDescription": "{\"data\":{\"transaction\":{\"airtel_money_id\":\"null\",\"id\":\"aE9U97Hbm7Gw4UWvL0tH\",\"message\":\"The Request ID is invalid/Already processed.\",\"status\":\"TF\"}},\"status\":{\"response_code\":\"DP00800001006\",\"code\":\"200\",\"success\":true,\"result_code\":\"ESB000010\",\"message\":\"SUCCESS\"}}" }

Error Response

Description	Sample Value
Unauthorized	Http error 401

AIRTEL Disbursement Payment API Call

Steps on how to connect AIRTEL Disbursement Payment API.

AIRTEL Disbursement Payment API - JSON Body

Sandbox: https://devpesaswap-csharp.azurewebsites.net/api/airtel-disburse-payment
Production: https://api.pesaswap.com/api/airtel-disburse-payment

Method: POST

Parameter	Description	Mandatory
MerchantIdentifier	your-MerchantIdentifier	Yes
TransactionExternalId	TransactionExternalId	Yes
Msisdn	Airtel phonenumber.	Yes
Amount	1	Yes
Country	KE	Yes
Currency	KES	Yes

Sample Body in JSON

Description	Value
Body: JSON RAW Parameter	{ "MerchantIdentifier":"MerchantIdentifier", "TransactionExternalId":"TransactionExternalId", "Msisdn":"123456789", "Amount": "1", "Country": "KE", "Currency": "KES" }

Sample Header

Description	Value
Content-Type	application/json
Authorization	Bearer eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJodHRwOi8vc2NoZW1hcy54bWxzb2FwLm9yZy93cy8yMDA1LzA1L2lkZW50aXR5L2NsYWltcy9uYW1lIjoiUG93ZXJlZCBCeSBKV1QgVGVjaG5vbG9neSIsImV4cCI6MTY0NzE0ODU1NCwiaXNzIjoiaHR0cHM6Ly9hcGkucGVzYXN3YXAuY29tLyIsImF1ZCI6Imh0dHBzOi8vYXBpLnBlc2Fzd2FwLmNvbS8ifQ.iNVIYmsGj10V5gjUPbEF7OPYfsodgp63DIiJaxEeyWY

Successful request

Description	Sample Value
Success response	{ "responseDescription": "24510993434. Ksh 1 deposited to Hellen kimanza 0751435103 on 18/03/22 at 02:28 PM. New float balance is Ksh 57,610." }

Error Response

Description	Sample Value
Error response	{ "error": "Duplicate transaction_external_id." }

AIRTEL Disbursement Refund API Call

Steps on how to connect AIRTEL Disbursement Refund API.

AIRTEL Disbursement Refund API - JSON Body

Sandbox: https://devpesaswap-csharp.azurewebsites.net/api/airtel-disburse-refund
Production: https://api.pesaswap.com/api/airtel-disburse-refund

Method: POST

Parameter	Description	Mandatory
MerchantIdentifier	your-MerchantIdentifier	Yes
OriginalTransactionExternalId	OriginalTransactionExternalId	Yes
TransactionExternalId	TransactionExternalId	Yes

Sample Body in JSON

Description	Value
Body: JSON RAW Parameter	{ "MerchantIdentifier":"MerchantIdentifier", "OriginalTransactionExternalId":"OriginalTransactionExternalId", "TransactionExternalId":"TransactionExternalId" }

Sample Header

Description	Value
Content-Type	application/json
Authorization	Bearer eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJodHRwOi8vc2NoZW1hcy54bWxzb2FwLm9yZy93cy8yMDA1LzA1L2lkZW50aXR5L2NsYWltcy9uYW1lIjoiUG93ZXJlZCBCeSBKV1QgVGVjaG5vbG9neSIsImV4cCI6MTY0NzE0ODU1NCwiaXNzIjoiaHR0cHM6Ly9hcGkucGVzYXN3YXAuY29tLyIsImF1ZCI6Imh0dHBzOi8vYXBpLnBlc2Fzd2FwLmNvbS8ifQ.iNVIYmsGj10V5gjUPbEF7OPYfsodgp63DIiJaxEeyWY

Successful request

Description	Sample Value
Success response	{ "responseDescription": "Success." }

Error Response

Description	Sample Value
Error response	{ "error": "Original transaction did not exist." }

AIRTEL Disbursement Transaction Inquiry API Call

Steps on how to connect AIRTEL Disbursement Transaction Inquiry API.

AIRTEL Disbursement Transaction Inquiry API - JSON Body

Sandbox: https://devpesaswap-csharp.azurewebsites.net/api/airtel-disburse-disburse-inquiry
Production: https://api.pesaswap.com/api/airtel-disburse-transaction-inquiry

Method: GET

Parameter	Description	Mandatory
TransactionExternalId	TransactionExternalId	Yes

Sample Body in JSON

Description	Value
Body: JSON RAW Parameter	{ "TransactionExternalId":"TransactionExternalId" }

Sample Header

Description	Value
Content-Type	application/json
Authorization	Bearer eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJodHRwOi8vc2NoZW1hcy54bWxzb2FwLm9yZy93cy8yMDA1LzA1L2lkZW50aXR5L2NsYWltcy9uYW1lIjoiUG93ZXJlZCBCeSBKV1QgVGVjaG5vbG9neSIsImV4cCI6MTY0NzE0ODU1NCwiaXNzIjoiaHR0cHM6Ly9hcGkucGVzYXN3YXAuY29tLyIsImF1ZCI6Imh0dHBzOi8vYXBpLnBlc2Fzd2FwLmNvbS8ifQ.iNVIYmsGj10V5gjUPbEF7OPYfsodgp63DIiJaxEeyWY

Successful request

Description	Sample Value
Success response	{ "responseDescription": "{\"data\":{\"transaction\":{\"id\":\"aF7ZmdcZfQVp40JlYjpW\",\"message\":\"The Request ID is invalid/Already processed.\",\"status\":\"TF\"}},\"status\":{\"response_code\":\"DP00900001000\",\"code\":\"200\",\"success\":true,\"result_code\":\"ESB000010\",\"message\":\"SUCCESS\"}}" }

Error Response

Description	Sample Value
Unauthorized	Http error 401

Azure Function API

An azure functions API's serves as a utility API's for the gateway.

Iveri Tokenization API

How to connect Pesaswap Iveri Tokenization API?

You needed the Endpoint(Live or Sandbox), API Key, Consumer Key.

Iveri Tokenization API is a specialized azure function API that will generate digital signature needed for queries.

Iveri Tokenization API Request Parameters

Method: POST

Parameter	Description	Mandatory
code	This serves as a network credential which will only be found in azure function admin dashboard.	Yes
place it in the body	{ "url":"https://portal.host.iveri.com/api/transactions?applicationid=merchant-app-id", "password":"iveri password" }	Yes

How to connect into Pesaswap Iveri Tokenization API?

You needed the API and Consumer Key.

Production: https://iveri-tokenization.azurewebsites.net/api/iveri-token-function?code={code}

1
2
3
4
5
6
7
8
9
10

											$url = BASE URL;

											$curl = curl_init();

											curl_setopt($curl, CURLOPT_URL, $azure_function_endpoint);
											curl_setopt($curl, CURLOPT_HTTPHEADER, array('Content-Type:application/json'));


											$curl_post_data = array( 'url' => $ViewTransactionRequestEndpoint.$request_id, 'password' =>$ViewTransactionPassword );(


											$data_string = json_encode($curl_post_data);

											curl_setopt($curl, CURLOPT_RETURNTRANSFER, true);

											curl_setopt($curl, CURLOPT_POST, true);

											curl_setopt($curl, CURLOPT_POSTFIELDS, $data_string);

											$curl_response = curl_exec($curl);



Iveri Tokenization API Response - successful request

Sample Value
20210401095145658:gJ52HsfRP8gkVvHJv0jLhaiSGkJMazWynSbTNBIYWNg=

Iveri Tokenization API Error Response

Name	Description	Sample Value
error	An error will be shown if parameter is not correct.	{ "error": "Invalid Credentials. Please Check your consumer_key and api_key." }

Azure Function Upload File

How to connect Pesaswap Azure Function Upload API?

You needed the Endpoint(Live or Sandbox), API Key, Consumer Key.

Azure Function Upload API is an api to upload mpesa imported transaction record directly to azure blob folder needed for http trigger azure functions which import the record into sql database.

Azure Function Upload File API Request Parameters

Method: POST

Parameter	Description	Mandatory
code	This serves as a network credential which will only be found in azure function admin dashboard.	Yes
file	browse mpesa imported transaction	Yes

How to connect into Azure Function Upload File API?

You needed the API and Consumer Key.

Production: https://uploadfiletoblobstorage.azurewebsites.net/api/upload-file?code={code}

1
2
3
4
5
6
7
8
9
10
11
12
13
14

											$url = BASE URL;

											$curl_init();

											curl_setopt($curl, CURLOPT_URL, $url);
											curl_setopt($curl, CURLOPT_HTTPHEADER, array('Content-Type:application/json'));

											$curl_post_data = array(

											'file' => 'browse mpesa imported excel record'

											);

											$data_string = json_encode($curl_post_data);

											curl_setopt($curl, CURLOPT_RETURNTRANSFER, true);

											curl_setopt($curl, CURLOPT_POST, true);

											curl_setopt($curl, CURLOPT_POSTFIELDS, $data_string);

											$curl_response = curl_exec($curl);

											$response = json_decode($curl_response,true);

Azure Function Upload File API Response - successful request

Sample Value
success

Azure Function Upload File API - Error Response

Name	Description	Sample Value
error	An http error will be shown if azure function code is invalid.	401: Unauthorized

Pesaswap API Postman Collection

Note: To be discarded anytime sooner. We recommend for new users to use our latest API to benefit the more enhanced security feature. Lastest Mpesa API here.

Download our RESTful API Collection here.

Mpesa Mobile Banking API

Steps on how to connect Mpesa Mobile Banking API

Please login to production site or sandbox site portal as merchant.

To view the consumer and api keys, click the user icon on upper right menu and select API Key
- Note: Merchant needs to submit all the required documents first for KYC purposes before it can access the api and consumer keys.

To view the paybill description:
1. Click [Mobile Banking] sidebar menu
2. Click [Settings]
3. Click [eye] icon on Mpesa Settings list
4. Look for [Paybill Description] field.

Please see sample code below and parameter's definition.

C2B Version 2 Request Parameters

Method: POST

Parameter	Description	Mandatory
method	c2b	Yes
consumer_key	This serves as an api username. You can request this key from administrator or please contact us for more details.	Yes
api_key	This serves as an api user password. You can request this key from administrator or please contact us for more details.	Yes
paybill_description	Every api must have an admin settings. You can request this key from administrator or please contact us for more details.	Yes
CommandID	CustomerPayBillOnline or CustomerBuyGoodsOnline	Yes
Msisdn	Customer’s mobile number	Yes
Amount	Actual amount to be paid	Yes
transaction_external_id	A GUID / UUID format. This will be used for future queries like knowing what's the actual status of your payment transaction. We have three(3) transaction statuses. Pending, Completed and Failed.	Yes
BillRefNumber	Generate your own BillRefNumber for c2b transaction.	Yes
customer_external_id	Must be GUID/UUID. Though it is optional, we strongly suggest to include this on api call for you to monitor the payment from your specific customers.	No

How to connect into Pesaswap Mobile Banking API?

You needed the API and Consumer Key as well as the Paybill Description.

Sandbox: https://devpesaswap.azurewebsites.net/api/pesaswap/mobile-payment/v2

Production: https://www.pesaswap.com/api/pesaswap/mobile-payment/v2

1
2
3
4

5
6
7
8
9
10
11
12
13
14
15
16

17
18
19
20
21
22

												$url = BASE URL;

												$curl_init();

												curl_setopt($curl, CURLOPT_URL, $url);
												curl_setopt($curl, CURLOPT_HTTPHEADER, array('Content-Type:application/json'));

												$curl_post_data = array(

												'method' => 'c2b',

												'consumer_key' => '',

												'api_key' => '',

												'Amount' => '',

												'CommandID' => '',

												'Msisdn' => '',

												'paybill_description' => '',

												'transaction_external_id' => '',

												'BillRefNumber' => '',

												'customer_external_id' => ''

												);

												$data_string = json_encode($curl_post_data);

												curl_setopt($curl, CURLOPT_RETURNTRANSFER, true);

												curl_setopt($curl, CURLOPT_POST, true);

												curl_setopt($curl, CURLOPT_POSTFIELDS, $data_string);

												$curl_response = curl_exec($curl);

												$response = json_decode($curl_response,true);

C2B Version 2 Request Response - successful request

Name	Description	Sample Value
ResponseDescription	Success response	{ "ResponseDescription": "Success. Request accepted for processing" }

C2B Version 2 Error Response

Name	Description	Sample Value
error	An error will be shown if parameter is not correct.	{ "error": "Invalid Credentials. Please Check your consumer_key and api_key." }

C2B Validation Request Parameters

This api call will be used to reconcile the manual C2B payment using the mpesa portal directly. The process must be 1.) Customer will immediately use the C2B payment portal. if successful, customer will receive the confirmation code or mpesa transaction id together with other mpesa payment details 2.) Using the confirmation code or mpesa transaction id, customer should validate the payment to the merchant portal. Please refer to the api requirement below.

Method: POST

Parameter	Description	Mandatory
consumer_key	This serves as an api username. You can request this key from administrator or please contact us for more details.	Yes
api_key	This serves as an api user password. You can request this key from administrator or please contact us for more details.	Yes
transaction_external_id	Ideally a GUID / UUID format. This will be used for future queries like knowing what's the actual status of your payment transaction. We have three(3) transaction statuses. Pending, Completed and Failed.	Yes
confirmation_code	A.K.A mpesa transaction id	Yes
amount	Actual amount paid	Yes

How to connect into Pesaswap C2B Validation API?

You needed the API and Consumer Key as well as the Paybill Description.

Sandbox: https://devpesaswap.azurewebsites.net/api/mobile-payment/validate-c2b

Production: https://www.pesaswap.com/api/mobile-payment/validate-c2b

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

												$url = BASE URL;

												$curl_init();

												curl_setopt($curl, CURLOPT_URL, $url);
												curl_setopt($curl, CURLOPT_HTTPHEADER, array('Content-Type:application/json'));




												$curl_post_data = array(

												'consumer_key' => '',

												'api_key' => '',

												'transaction_external_id' => '',

												'confirmation_code' => '',

												'amount' => '',

												);



												$data_string = json_encode($curl_post_data);

												curl_setopt($curl, CURLOPT_RETURNTRANSFER, true);

												curl_setopt($curl, CURLOPT_POST, true);

												curl_setopt($curl, CURLOPT_POSTFIELDS, $data_string);

												$curl_response = curl_exec($curl);

												$response = json_decode($curl_response,true);





C2B Validation Request Response - successful request

Name	Description	Sample Value
success	Success response	{ "success": "Payment has been succeeded." }

C2B Validation Error Response

Name	Description	Sample Value
error	An error will be shown if parameter is not correct.	{ "error": "Invalid Credentials. Please Check your consumer_key and api_key." }
error	Mismatch amount. Higher than c2b amount.	{ "error": "Amount 222.00 did not match. Higher than C2B amount." }
error	Mismatch amount. Lower than c2b amount.	{ "error": "Amount 1.00 did not match. Lower than C2B amount." }
error	Transaction with transaction_external_id was already validated.	{ "error": "Transaction 123456789374 has been validated." }

C2B Validation Link Color Meaning

Note: Technically the transaction already completed in mpesa dashboard via manual c2b payment. The colors will determine if the customer executed validation via merchant api call.

Name	Color	Photo
Success	Dodger blue
Pending	Orange
Failed	Red

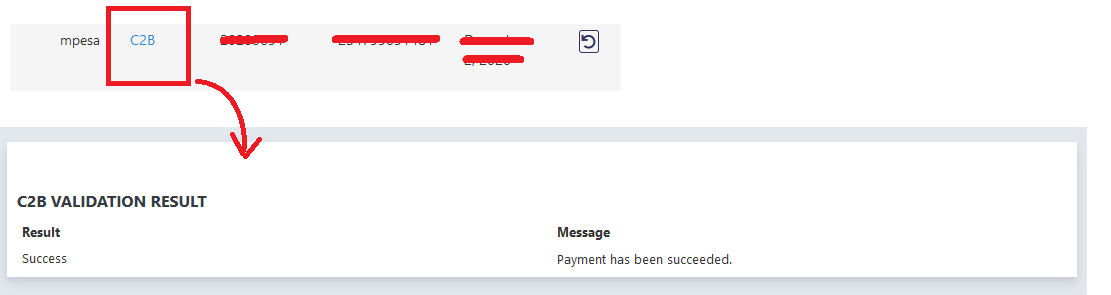

C2B Validation Message

Note: Under method column, CLICK the 'C2B' link to view the validation message.

Name	Photo
Validation Message

Lipa / Mpesa Express Version 2 Request Parameter

Method: POST

Parameter	Description	Mandatory
method	op	Yes
consumer_key	This serves as an api username. You can request this key from administrator or please contact us for more details.	Yes
api_key	This serves as an api user password. You can request this key from administrator or please contact us for more details.	Yes
paybill_description	Every api must have an admin settings. You can request this key from administrator or please contact us for more details.	Yes
PhoneNumber	Customer’s mobile number	Yes
Amount	Actual amount to be paid	Yes
transaction_external_id	A GUID / UUID format. This will be used for future queries like knowing what's the actual status of your payment transaction. We have three(3) transaction statuses. Pending, Completed and Failed.	Yes
customer_external_id	Must be GUID/UUID. Though it is optional, we strongly suggest to include this on api call for you to monitor the payment from your specific customers.	No
code_type	till for tillcode, leave blank for shortcode	No

How to connect into Pesaswap Mobile Banking API?

You needed the API and Consumer Key as well as the Paybill Description.

Sandbox: https://devpesaswap.azurewebsites.net/api/pesaswap/mobile-payment/v2

Production: https://www.pesaswap.com/api/pesaswap/mobile-payment/v2

1
2
3
4

5
6
7
8
9
10
11
12
13
14

15
16
17
18
19
20

											$url = BASE URL;

											$curl_init();

											curl_setopt($curl, CURLOPT_URL, $url);
											curl_setopt($curl, CURLOPT_HTTPHEADER, array('Content-Type:application/json'));

											$curl_post_data = array(

											'method' => 'op',

											'consumer_key' => '',

											'api_key' => '',

											'PhoneNumber' => '',

											'Amount' => '',

											'paybill_description' => '',

											'transaction_external_id' => '',

											'customer_external_id' => ''

											);

											$data_string = json_encode($curl_post_data);

											curl_setopt($curl, CURLOPT_RETURNTRANSFER, true);

											curl_setopt($curl, CURLOPT_POST, true);

											curl_setopt($curl, CURLOPT_POSTFIELDS, $data_string);

											$curl_response = curl_exec($curl);

											$response = json_decode($curl_response,true);

Lipa / Mpesa Express Version 2 Request Response - successful request

Name	Description	Sample Value
ResponseDescription	Success response	{ "ResponseDescription": "Success. Request accepted for processing" }

Lipa / MPesa Express Version 2 Error Response

Name	Description	Sample Value
error	An error will be shown if parameter is not correct.	{ "error": "Invalid Credentials. Please Check your consumer_key and api_key." }

B2C Version 2 Request Parameters

Method: POST

Parameter	Description	Mandatory
method	b2c	Yes
consumer_key	This serves as an api username. You can request this key from administrator or please contact us for more details.	Yes
api_key	This serves as an api user password. You can request this key from administrator or please contact us for more details.	Yes
paybill_description	Every api must have an admin settings. You can request this key from administrator or please contact us for more details.	Yes
CommandID	Also known as transaction type. We have three options for b2c 1.)SalaryPayment 2.)BusinessPayment 3.)PromotionPayment	Yes
PartyB	Receiver’s mobile number	Yes
Amount	Actual amount to be paid	Yes
transaction_external_id	A GUID / UUID format. This will be used for future queries like knowing what's the actual status of your payment transaction. We have three(3) transaction statuses. Pending, Completed and Failed.	Yes
customer_external_id	Must be GUID/UUID. Though it is optional, we strongly suggest to include this on api call for you to monitor the payment from your specific customers.	No

How to connect into Pesaswap Mobile Banking API?

You needed the API and Consumer Key as well as the Paybill Description.

Sandbox: https://devpesaswap.azurewebsites.net/api/pesaswap/mobile-payment/v2

Production: https://www.pesaswap.com/api/pesaswap/mobile-payment/v2

1
2
3
4

5
6
7
8
9
10
11
12
13
14
15

16
17
18
19
20
21

											$url = BASE URL;

											$curl_init();

											curl_setopt($curl, CURLOPT_URL, $url);
											curl_setopt($curl, CURLOPT_HTTPHEADER, array('Content-Type:application/json'));

											$curl_post_data = array(

											'method' => 'b2c',

											'consumer_key' => '',

											'api_key' => '',

											'CommandID' => '',

											'PartyB' => '',

											'Amount' => '',

											'paybill_description' => '',

											'transaction_external_id' => '',

											'customer_external_id' => ''

											);

											$data_string = json_encode($curl_post_data);

											curl_setopt($curl, CURLOPT_RETURNTRANSFER, true);

											curl_setopt($curl, CURLOPT_POST, true);

											curl_setopt($curl, CURLOPT_POSTFIELDS, $data_string);

											$curl_response = curl_exec($curl);

											$response = json_decode($curl_response,true);

B2C Version 2 Request Response - successful request

Name	Description	Sample Value
ResponseDescription	Success response	{ "ResponseDescription": "Success. Request accepted for processing" }

B2C Version 2 Error Response

Name	Description	Sample Value
error	An error will be shown if parameter is not correct.	{ "error": "Invalid Credentials. Please Check your consumer_key and api_key." }

Reprocess B2C API

This API is intended to reprocess Failed B2C transactions particularly if the reason is due to Mpesa network issues such as timeout, busy server and other related matter. Note: this is only intended for the existing b2c failed transactions which parameters are considerably correct and only experiencing the issues mentioned above. Wrong recorded parameters like Invalid PartyB (Phone) is not included in the scope.

Reprocess B2C API Request Parameters

Method: POST

Parameter	Description	Mandatory
consumer_key	This serves as an api username. You can request this key from administrator or please contact us for more details.	Yes
api_key	This serves as an api user password. You can request this key from administrator or please contact us for more details.	Yes
transaction_external_id	Must be the existing transaction_external_id of your failed b2c transaction.	Yes

How to connect into Pesaswap Reprocess B2C API?

You needed the API and Consumer Key as well as the Paybill Description.

Sandbox: https://devpesaswap.azurewebsites.net/api/reprocess-b2c

Production: https://www.pesaswap.com/api/reprocess-b2c

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

											$url = BASE URL;

											$curl_init();

											curl_setopt($curl, CURLOPT_URL, $url);
											curl_setopt($curl, CURLOPT_HTTPHEADER, array('Content-Type:application/json'));

											$curl_post_data = array(

											'consumer_key' => '',

											'api_key' => '',

											'transaction_external_id' => ''

											);

											$data_string = json_encode($curl_post_data);

											curl_setopt($curl, CURLOPT_RETURNTRANSFER, true);

											curl_setopt($curl, CURLOPT_POST, true);

											curl_setopt($curl, CURLOPT_POSTFIELDS, $data_string);

											$curl_response = curl_exec($curl);

											$response = json_decode($curl_response,true);

Reprocess B2C API Request Response - successful request

Name	Description	Sample Value
ResponseDescription	Success response	{ "ResponseDescription": "Success. Request accepted for processing" }

Reprocess B2C API Error Response

Name	Description	Sample Value
error	An error will be shown if parameter is not correct.	{ "error": "Invalid Credentials. Please Check your consumer_key and api_key." }

Reversal Request Parameters

Method: POST

Parameter	Description	Mandatory
method	rp	Yes
consumer_key	This serves as an api username. You can request this key from administrator or please contact us for more details.	Yes
api_key	This serves as an api user password. You can request this key from administrator or please contact us for more details.	Yes
paybill_description	Every api must have an admin settings. You can request this key from administrator or please contact us for more details.	Yes
Amount	Actual amount to refund	Yes
ReceiverParty	Organization receiving the transaction, Shortcode (6 digits)	Yes
TransactionID	Unique key generated after payment has been completed.	Yes
transaction_external_id	This will serve as the primary key for transaction's query. Pesaswap assumed that user's saved and inlcude this key after sending any of those mobile banking api payment request.	Yes

How to connect into Pesaswap Mobile Banking API?

You needed the API and Consumer Key as well as the Paybill Description.

Sandbox: https://devpesaswap.azurewebsites.net/api/pesaswap/mobile-payment

Production: https://www.pesaswap.com/api/pesaswap/mobile-payment

1
2
3
4

5
6
7
8
9
10
11
12
13

14
15
16
17
18
19

											$url = BASE URL;

											$curl_init();

											curl_setopt($curl, CURLOPT_URL, $url);
											curl_setopt($curl, CURLOPT_HTTPHEADER, array('Content-Type:application/json'));

											$curl_post_data = array(

											'method' => 'rp',

											'consumer_key' => '',

											'api_key' => '',

											'Amount' => '',

											'ReceiverParty' => '',

											'TransactionID' => '',

											'paybill_description' => '',

											'transaction_external_id' => ''

											);

											$data_string = json_encode($curl_post_data);

											curl_setopt($curl, CURLOPT_RETURNTRANSFER, true);

											curl_setopt($curl, CURLOPT_POST, true);

											curl_setopt($curl, CURLOPT_POSTFIELDS, $data_string);

											$curl_response = curl_exec($curl);

											$response = json_decode($curl_response,true);

Reversal Request Response - successful request

Name	Description	Sample Value
OriginatorConversationID	An Originator Conversation ID from mpesa.	15772-2120045-1
ConversationID	Conversation ID from mpesa.	AG_20191011_00006c6617e36862f7b9
ResponseCode	Response code from mpesa. IE. 0 means successful.	0
ResponseDescription	Actual message from mpesa endpoint.	Accept the service request successfully

Reversal Error Response

Name	Description	Sample Value
error	An error will be shown if parameter is not correct.	{ "error": "Invalid Credentials. Please Check your consumer_key and api_key." }.

Reversal Error Response - mpesa exception

Name	Description	Sample Value
requestId	From mpesa endpoint.	26967-2138090-1
errorCode	From mpesa endpoint.	400.002.02
errorMessage	Actual error message from mpesa endpoint.	Bad Request - Invalid ReceiverParty

Mpesa Test Creds

Note: This credentials will only works in devsite or sandbox [https://devpesaswap.azurewebsites.net] endpoint.

Name	Value
consumer_key	rDBCp10qm0
api_key	YEl40QSXo0M3N8G9pXKkuJo2U
paybill_description	CC689940-EB4A-11E9-B56F-012AAE5B409B
PhoneNumber	254708374149

Mpesa API - Recommended

Download the MPESA API postman collection here.

Header Tokenization API Call

Steps on how to generate header token.

Please login to production site or sandbox site portal as merchant.

To view the consumer and api keys and other credentials, click the user icon on upper right menu and select API Keys and Credentials
- Note: Merchant needs to submit all the required documents first for KYC purposes before it can access the api and consumer keys.

Please see sample code below and parameter's definition.

Header Tokenization Request Parameter - JSON Body

Sandbox: https://devpesaswap-csharp.azurewebsites.net/api/tokenization
Production: https://api.pesaswap.com/api/tokenization

Method: POST

Parameter	Description	Mandatory
ConsumerKey	This serves as an api username. You can request this key from administrator or please contact us for more details.	Yes
ApiKey	This serves as an api user password. You can request this key from administrator or please contact us for more details.	Yes

Sample Body in JSON

Description	Value
Body: JSON RAW Parameter	{ "ConsumerKey":"your-ConsumerKey", "ApiKey":"your-ApiKey" }

Successful request

Description

Sample Value

Success response

Token Expiration

1 Hour

Error Response

Description	Sample Value
Unauthorized	Http error 401

MPESA B2C API Call

Steps on how to connect MPESA B2C API.

MPESA B2C API - JSON Body

Sandbox: https://devpesaswap-csharp.azurewebsites.net/api/mpesa-b2c
Production: https://api.pesaswap.com/api/mpesa-b2c

Method: POST

Parameter	Description	Mandatory
PaybillDescription	your-PaybillDescription	Yes
Amount	Amount to payout.	Yes
CommandId	SalaryPayment	Yes
PartyB	Mpesa Receiver's phone	Yes
ExternalId	your-ExternalId	Yes

Sample Body in JSON

Description	Value
Body: JSON RAW Parameter	{ "PaybillDescription":"PaybillDescription", "Amount":10, "CommandId":"SalaryPayment", "PartyB": "254722102170", "ExternalId": "ExternalId" }

Sample Header

Description	Value
Content-Type	application/json
Authorization	Bearer eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJodHRwOi8vc2NoZW1hcy54bWxzb2FwLm9yZy93cy8yMDA1LzA1L2lkZW50aXR5L2NsYWltcy9uYW1lIjoiUG93ZXJlZCBCeSBKV1QgVGVjaG5vbG9neSIsImV4cCI6MTY0NzE0ODU1NCwiaXNzIjoiaHR0cHM6Ly9hcGkucGVzYXN3YXAuY29tLyIsImF1ZCI6Imh0dHBzOi8vYXBpLnBlc2Fzd2FwLmNvbS8ifQ.iNVIYmsGj10V5gjUPbEF7OPYfsodgp63DIiJaxEeyWY

Successful request

Description	Sample Value
Success response	{ "responseDescription": "Accept the service request successfully." }

Error Response

Description	Sample Value
Error response	{ "error": "Duplicate transaction_external_id." }

MPESA C2B API Call

Steps on how to connect MPESA C2B API.

MPESA C2B API - JSON Body

Sandbox: https://devpesaswap-csharp.azurewebsites.net/api/mpesa-c2b-billrefno
Production: https://api.pesaswap.com/api/mpesa-c2b-billrefno

Method: POST

Parameter	Description	Mandatory
PaybillDescription	your-PaybillDescription	Yes
Amount	Amount to payin.	Yes
CommandId	CustomerPayBillOnline	Yes
Msisdn	Mpesa phone	Yes
ExternalId	your-ExternalId	Yes
BillRefNumber	your-BillRefNumber	Yes

Sample Body in JSON

Description	Value
Body: JSON RAW Parameter	{ "PaybillDescription":"PaybillDescription", "Amount":10, "CommandId":"CustomerPayBillOnline", "Msisdn":"254708374140", "ExternalId": "ExternalId", "BillRefNumber": "BillRefNumber" }

Sample Header

Description	Value
Content-Type	application/json
Authorization	Bearer eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJodHRwOi8vc2NoZW1hcy54bWxzb2FwLm9yZy93cy8yMDA1LzA1L2lkZW50aXR5L2NsYWltcy9uYW1lIjoiUG93ZXJlZCBCeSBKV1QgVGVjaG5vbG9neSIsImV4cCI6MTY0NzE0ODU1NCwiaXNzIjoiaHR0cHM6Ly9hcGkucGVzYXN3YXAuY29tLyIsImF1ZCI6Imh0dHBzOi8vYXBpLnBlc2Fzd2FwLmNvbS8ifQ.iNVIYmsGj10V5gjUPbEF7OPYfsodgp63DIiJaxEeyWY

Successful request

Description	Sample Value
Success response	{ "responseDescription": "Success. Request accepted for processing." }

Error Response

Description	Sample Value
Error response	{ "error": "Duplicate ExternalId." }

MPESA LIPA API Call

Steps on how to connect MPESA LIPA API.

MPESA LIPA API - JSON Body

Sandbox: https://devpesaswap-csharp.azurewebsites.net/api/mpesa-lipa
Production: https://api.pesaswap.com/api/mpesa-lipa

Method: POST

Parameter	Description	Mandatory
PaybillDescription	your-PaybillDescription	Yes
Amount	Amount to payin.	Yes
PhoneNumber	Mpesa phone.	Yes
ExternalId	your-ExternalId	Yes
Comment	your-Comment or remarks	Yes

Sample Body in JSON

Description	Value
Body: JSON RAW Parameter	{ "PaybillDescription":"PaybillDescription", "Amount":10, "PhoneNumber":"254708374140", "ExternalId": "ExternalId", "Comment": "Comment" }

Sample Header

Description	Value
Content-Type	application/json
Authorization	Bearer eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJodHRwOi8vc2NoZW1hcy54bWxzb2FwLm9yZy93cy8yMDA1LzA1L2lkZW50aXR5L2NsYWltcy9uYW1lIjoiUG93ZXJlZCBCeSBKV1QgVGVjaG5vbG9neSIsImV4cCI6MTY0NzE0ODU1NCwiaXNzIjoiaHR0cHM6Ly9hcGkucGVzYXN3YXAuY29tLyIsImF1ZCI6Imh0dHBzOi8vYXBpLnBlc2Fzd2FwLmNvbS8ifQ.iNVIYmsGj10V5gjUPbEF7OPYfsodgp63DIiJaxEeyWY

Successful request

Description	Sample Value
Success response	{ "responseDescription": "Success. Request accepted for processing." }

Error Response

Description	Sample Value
Error response	{ "error": "Duplicate ExternalId." }

MPESA REVERSAL API Call

Steps on how to connect MPESA REVERSAL API.

MPESA REVERSAL API - JSON Body

Sandbox: https://devpesaswap-csharp.azurewebsites.net/api/mpesa-reversal
Production: https://api.pesaswap.com/api/mpesa-reversal

Method: POST

Parameter	Description	Mandatory
SourceExternalId	The original transaction you want to reverse or refund	Yes
ExternalId	your-ExternalId	Yes
ReceiverParty	Paybill for shortcode, or store code for tillcode	Yes
Amount	Amount to reverse	Yes

Sample Body in JSON

Description	Value
Body: JSON RAW Parameter	{ "SourceExternalId":"SourceExternalId", "ExternalId": "ExternalId", "ReceiverParty":"123456", "Amount":10 }

Sample Header

Description	Value
Content-Type	application/json
Authorization	Bearer eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJodHRwOi8vc2NoZW1hcy54bWxzb2FwLm9yZy93cy8yMDA1LzA1L2lkZW50aXR5L2NsYWltcy9uYW1lIjoiUG93ZXJlZCBCeSBKV1QgVGVjaG5vbG9neSIsImV4cCI6MTY0NzE0ODU1NCwiaXNzIjoiaHR0cHM6Ly9hcGkucGVzYXN3YXAuY29tLyIsImF1ZCI6Imh0dHBzOi8vYXBpLnBlc2Fzd2FwLmNvbS8ifQ.iNVIYmsGj10V5gjUPbEF7OPYfsodgp63DIiJaxEeyWY

Successful request

Description	Sample Value
Success response	{ "responseDescription": "Accept the service request successfully." }

Error Response

Description	Sample Value
Error response	{ "error": "Duplicate ExternalId." }

Header tokenization

Download the header tokenization postman collection api here.

Header Tokenization API Call

Steps on how to generate header token.

Please login to production site or sandbox site portal as merchant.

To view the consumer and api keys and other credentials, click the user icon on upper right menu and select API Keys and Credentials
- Note: Merchant needs to submit all the required documents first for KYC purposes before it can access the api and consumer keys.

Please see sample code below and parameter's definition.

Header Tokenization Request Parameter - JSON Body

Sandbox: https://devpesaswap-csharp.azurewebsites.net/api/tokenization
Production: https://api.pesaswap.com/api/tokenization

Method: POST

Parameter	Description	Mandatory
ConsumerKey	This serves as an api username. You can request this key from administrator or please contact us for more details.	Yes
ApiKey	This serves as an api user password. You can request this key from administrator or please contact us for more details.	Yes

Sample Body in JSON

Description	Value
Body: JSON RAW Parameter	{ "ConsumerKey":"your-ConsumerKey", "ApiKey":"your-ApiKey" }

Successful request

Description

Sample Value

Success response

Token Expiration

1 Hour

Error Response

Description	Sample Value
Unauthorized	Http error 401

Transaction API

The Pesaswap Transaction API provides the users what they need to know about their transactions especially the current status of their payment. Would it be Completed, Pending or Failed and other important details.

Completed status means the payment has been collected successfully from the customer. If it's still Pending status, the payment has been successfully processed on MPesa end but still waiting for the customer to execute the actual payment on their phone. Once it is Failed, means customer reject the payment call. For this case, you can send another api payment call to the customer.

The Pesaswap Transaction API has sandbox environment which you can request from Pesaswap Administrator for testing purposes. sandbox environment serves as a simulation of how API's work in production. Sandbox and Production keys are two different keys

How to connect into Pesaswap Transaction API?

You needed the API and Consumer Key.

Consumer and API Key, These are the keys to be used by merchants to connect into Pesaswap Transaction API. It should be included in the request body to determine if merchant has valid access to our api.

How to get the keys needed for Pesaswap Transaction API? Please contact us for more infos about the API.

Transaction Query Filter by "transaction_external_id" Request Parameters

Method: GET

Parameter	Description	Mandatory
consumer_key	This serves as an api username. You can request this key from administrator or please contact us for more details.	Yes
api_key	This serves as an api user password. You can request this key from administrator or please contact us for more details.	Yes
transaction_external_id	This will serve as the primary key for transaction's query. Pesaswap assumed that user's saved and inlcude this key after sending any of those mobile banking api payment request.	Yes

How to connect into Pesaswap Mobile Banking API?

You needed the API and Consumer Key.

Sandbox: https://devpesaswap.azurewebsites.net/api/get-transaction-record

Production: https://www.pesaswap.com/api/get-transaction-record

1
2
3
4
5

6
7
8
9
10
11
12
13
14

											$url = BASE URL;

											$dataArray = array('consumer_key'=>'',

											'api_key'=>'',

											'transaction_external_id'=>''

											);

											$ch = curl_init();

											$data = http_build_query($dataArray);

											$getUrl = $url."?".$data;

											curl_setopt($ch, CURLOPT_SSL_VERIFYPEER, FALSE);

											curl_setopt($ch, CURLOPT_FOLLOWLOCATION, TRUE);

											curl_setopt($ch, CURLOPT_RETURNTRANSFER, TRUE);

											curl_setopt($ch, CURLOPT_URL, $getUrl);

											curl_setopt($ch, CURLOPT_TIMEOUT, 80);

											$response = curl_exec($ch);

Transaction Query Filter by "transaction_external_id" Request Response - successful request

Name	Description	Sample Value
transaction_external_id	Unique ID generated by api users.	66f3d48093343538bca540a094c86e4e
transaction_id	Transaction ID from mpesa endpoint.	ABC56B5U0D, null
amount	Transaction amount	10
status	Status of the payment transaction.	Pending, Failed, Completed
processor	Payment processor	mpesa, mastercard
method	Payment method	lipa / mpesa express, c2b, b2c
command_id	Payment category	CustomerPayBillOnline
customer	Name of the customer.	John Doe, John Delgado Doe, null

Transaction Query Filter by "transaction_external_id" request response - record not found

Name	Description	Sample Value
	Record not found on pesaswap database.	Record not found.

Transaction Query Filter by "transaction_external_id" Error Response

Name	Description	Sample Value
error	An error will be shown if parameter is not correct.	{ "error": "Invalid Credentials. Please Check your consumer_key and api_key." }

Transaction Query Filter by "transaction_id" Request Parameters

Method: GET

Parameter	Description	Mandatory
consumer_key	This serves as an api username. You can request this key from administrator or please contact us for more details.	Yes
api_key	This serves as an api user password. You can request this key from administrator or please contact us for more details.	Yes
transaction_id	This is the mpesa transaction_id. NOTE: This is only available when the transaction status is Completed. If not Completed, this field is still empty. We recommend to use Transaction Query Filter by "transaction_external_id" above to check the status of the transaction.	Yes

How to connect into Pesaswap Mobile Banking API?

You needed the API and Consumer Key.

Sandbox: https://devpesaswap.azurewebsites.net/api/get-transaction-record/filter-by-transaction-id

Production: https://www.pesaswap.com/api/get-transaction-record/filter-by-transaction-id

1
2
3
4
5

6
7
8
9
10
11
12
13
14

											$url = BASE URL;

											$dataArray = array('consumer_key'=>'',

											'api_key'=>'',

											'transaction_id'=>''

											);

											$ch = curl_init();

											$data = http_build_query($dataArray);

											$getUrl = $url."?".$data;

											curl_setopt($ch, CURLOPT_SSL_VERIFYPEER, FALSE);

											curl_setopt($ch, CURLOPT_FOLLOWLOCATION, TRUE);

											curl_setopt($ch, CURLOPT_RETURNTRANSFER, TRUE);

											curl_setopt($ch, CURLOPT_URL, $getUrl);

											curl_setopt($ch, CURLOPT_TIMEOUT, 80);

											$response = curl_exec($ch);

Transaction Query Filter by "transaction_id" Request Response - successful request

Name	Description	Sample Value
transaction_external_id	Unique ID generated by api users.	66f3d48093343538bca540a094c86e4e
transaction_id	Transaction ID from mpesa endpoint.	ABC56B5U0D, null
transaction_type	Transaction type.	sales, refund(reversal)
amount	Transaction amount	10
status	Status of the payment transaction.	Pending, Failed, Completed
processor	Payment processor	mpesa, mastercard
method	Payment method	lipa / mpesa express, c2b, b2c
command_id	Payment category	CustomerPayBillOnline
customer	Name of the customer.	John Doe, John Delgado Doe, null
phone	Customer phone number. Used by credit card payment.	254720879123
address1	Main address of the customer.	(Actual Address)
address2	Extended address of the customer.	(Actual Extended Address)
city	City address of the customer.	(Actual City)
state_code	State code address of the customer.	(Actual state_code)
postal_code	Postal code address of the customer.	(Actual postal_code)
country_code	Country code address of the customer.	(Actual country_code)
credit_card_number_last_four	Last four degit of credit card number.	(valid credit card number)
credit_card_type	Name of card company(bank).	Mastercard, Discover, etc.
credit_card_key	Security key.	CVC, CVV.
routing	Routing(bank).	Valid Routing(bank).
rebill_routing	Rebill routing(bank).	Valid rebill routing(bank).
tax	Applied transaction tax.	Valid tax number.
order_id	Order ID for credit card transaction.	Unique varchar value as possible.
order_description	Order description for credit card transaction.	Order description.
shipping_firstname	Shipping firstname for credit card transaction.	Shipping firstname.
shipping_email	Shipping email for credit card transaction.	Shipping email.
shipping_phone	Shipping phone for credit card transaction.	Shipping phone.
shipping_phone	Shipping phone for credit card transaction.	Shipping phone.
shipping_address1	Shipping address for credit card transaction.	Shipping address.
shipping_address2	Extended Shipping address for credit card transaction.	Extended Shipping address.
shipping_city	Shipping city for credit card transaction.	Shipping city.
shipping_state_code	Shipping state code for credit card transaction.	Shipping state code.
shipping_postal_code	Shipping postal code for credit card transaction.	Shipping postal code.
shipping_country	Shipping country for credit card transaction.	Shipping country.
Initiator	MPesa initiator, one of reversal parameter.	Initiator.
InitiatorName	MPesa initiator, one of B2C parameter.	InitiatorName.
PartyA	MPesa short code. Usually origin.	PartyA.
PartyB	MPesa short code. Usually receiver.	PartyB.
Remarks	MPesa remarks for transaction.	Remarks.
Occasion	MPesa occasion for transaction, similar to remarks.	Occasion.
Msisdn	MPesa Msisdn for transaction, usually phone number.	Msisdn.
BillRefNumber	Use as mpesa payment account number.	LP331
ShortCode	Mpesa shortcode.	ShortCode(601400).
SenderIdentifier	Mpesa SenderIdentifier(for B2B).	SenderIdentifier
RecieverIdentifierType	Mpesa RecieverIdentifierType(for B2B).	RecieverIdentifierType
AccountReference	Mpesa AccountReference.	AccountReference
BusinessShortCode	Mpesa BusinessShortCode.	BusinessShortCode(another short code.)
Password	Mpesa Password. User for access token.	Password.
TransactionType	TransactionType(N/A).	TransactionType(N/A).
PhoneNumber	MPesa phone number.	MPesa phone number.
CallBackURL	MPesa CallBackURL(N/A).	MPesa CallBackURL(N/A).
TransactionDesc	Mpesa transaction description.	Mpesa transaction description.
mpesa_result_desc	Mpesa response description.	Mpesa response description..
paybill_description	Unique GUID derived from mpesa settings.	Unique GUID.
mpesa_customer	Customer integrated from mpesa endpoint.	Mpesa customer.
created_at	Actual transaction date.	Actual transaction date.

Transaction Query Filter by "transaction_id" request response - record not found

Name	Description	Sample Value
	Record not found on pesaswap database.	Record not found.

Transaction Query Filter by "transaction_id" Error Response

Name	Description	Sample Value
error	An error will be shown if parameter is not correct.	{ "error": "Invalid Credentials. Please Check your consumer_key and api_key." }

Transaction Query All Request Parameters

Method: GET

Parameter	Description	Mandatory
consumer_key	This serves as an api username. You can request this key from administrator or please contact us for more details.	Yes
api_key	This serves as an api user password. You can request this key from administrator or please contact us for more details.	Yes
start_date	Transaction start date.	Yes
end_date	Transaction end date.	Yes
skip	Number of records to skip.	Yes
take	Number of records to display.	Yes

How to connect into Pesaswap Mobile Banking API?

You needed the API and Consumer Key.

Sandbox: https://devpesaswap.azurewebsites.net/api/view-all-transactions-record

Production: https://www.pesaswap.com/api/view-all-transactions-record

1
2
3
4

5
6
7
8
9
10
11
12
13

											$url = BASE URL;

											$dataArray = array('consumer_key'=>'',

											'api_key'=>''

											'start_date'=>'mm/dd/yyyy'

											'end_date'=>'mm/dd/yyyy'

											'skip'=>'0'

											'take'=>'100'

											);

											$ch = curl_init();

											$data = http_build_query($dataArray);

											$getUrl = $url."?".$data;

											curl_setopt($ch, CURLOPT_SSL_VERIFYPEER, FALSE);

											curl_setopt($ch, CURLOPT_FOLLOWLOCATION, TRUE);

											curl_setopt($ch, CURLOPT_RETURNTRANSFER, TRUE);

											curl_setopt($ch, CURLOPT_URL, $getUrl);

											curl_setopt($ch, CURLOPT_TIMEOUT, 80);

											$response = curl_exec($ch);

Transaction Query All Request Response - successful request

Name	Description	Sample Value
transaction_external_id	Unique ID generated by api users.	66f3d48093343538bca540a094c86e4e
transaction_id	Transaction ID from mpesa endpoint.	ABC56B5U0D, null
transaction_type	Transaction type.	sales, refund(reversal)
amount	Transaction amount	10
status	Status of the payment transaction.	Pending, Failed, Completed
processor	Payment processor	mpesa, mastercard
method	Payment method	lipa / mpesa express, c2b, b2c
command_id	Payment category	CustomerPayBillOnline
customer	Name of the customer.	John Doe, John Delgado Doe, null
phone	Customer phone number. Used by credit card payment.	254720879123
address1	Main address of the customer.	(Actual Address)
address2	Extended address of the customer.	(Actual Extended Address)
city	City address of the customer.	(Actual City)
state_code	State code address of the customer.	(Actual state_code)
postal_code	Postal code address of the customer.	(Actual postal_code)
country_code	Country code address of the customer.	(Actual country_code)
credit_card_number_last_four	Last four degit of credit card number.	(valid credit card number)
credit_card_type	Name of card company(bank).	Mastercard, Discover, etc.
credit_card_key	Security key.	CVC, CVV.
routing	Routing(bank).	Valid Routing(bank).
rebill_routing	Rebill routing(bank).	Valid rebill routing(bank).
tax	Applied transaction tax.	Valid tax number.
order_id	Order ID for credit card transaction.	Unique varchar value as possible.
order_description	Order description for credit card transaction.	Order description.
shipping_firstname	Shipping firstname for credit card transaction.	Shipping firstname.
shipping_email	Shipping email for credit card transaction.	Shipping email.
shipping_phone	Shipping phone for credit card transaction.	Shipping phone.
shipping_phone	Shipping phone for credit card transaction.	Shipping phone.
shipping_address1	Shipping address for credit card transaction.	Shipping address.
shipping_address2	Extended Shipping address for credit card transaction.	Extended Shipping address.
shipping_city	Shipping city for credit card transaction.	Shipping city.
shipping_state_code	Shipping state code for credit card transaction.	Shipping state code.
shipping_postal_code	Shipping postal code for credit card transaction.	Shipping postal code.
shipping_country	Shipping country for credit card transaction.	Shipping country.
Initiator	MPesa initiator, one of reversal parameter.	Initiator.
InitiatorName	MPesa initiator, one of B2C parameter.	InitiatorName.
PartyA	MPesa short code. Usually origin.	PartyA.
PartyB	MPesa short code. Usually receiver.	PartyB.
Remarks	MPesa remarks for transaction.	Remarks.
Occasion	MPesa occasion for transaction, similar to remarks.	Occasion.
Msisdn	MPesa Msisdn for transaction, usually phone number.	Msisdn.
BillRefNumber	Use as mpesa payment account number.	LP331
ShortCode	Mpesa shortcode.	ShortCode(601400).
SenderIdentifier	Mpesa SenderIdentifier(for B2B).	SenderIdentifier
RecieverIdentifierType	Mpesa RecieverIdentifierType(for B2B).	RecieverIdentifierType
AccountReference	Mpesa AccountReference.	AccountReference
BusinessShortCode	Mpesa BusinessShortCode.	BusinessShortCode(another short code.)
Password	Mpesa Password. User for access token.	Password.
TransactionType	TransactionType(N/A).	TransactionType(N/A).
PhoneNumber	MPesa phone number.	MPesa phone number.
CallBackURL	MPesa CallBackURL(N/A).	MPesa CallBackURL(N/A).
TransactionDesc	Mpesa transaction description.	Mpesa transaction description.
mpesa_result_desc	Mpesa response description.	Mpesa response description..
paybill_description	Unique GUID derived from mpesa settings.	Unique GUID.
mpesa_customer	Customer integrated from mpesa endpoint.	Mpesa customer.
created_at	Actual transaction date.	Actual transaction date.

Transaction Query All request response - record not found

Name	Description	Sample Value
	Record not found on pesaswap database.	Record not found.

Transaction Query All Error Response

Name	Description	Sample Value
error	An error will be shown if parameter is not correct.	{ "error": "Invalid Credentials. Please Check your consumer_key and api_key." }

View Card Transaction Filter by RequestId (Iveri View Card Transaction)

Method: POST

Parameter	Description	Mandatory
consumer_key	This serves as an api username. You can request this key from administrator or please contact us for more details.	Yes
api_key	This serves as an api user password. You can request this key from administrator or please contact us for more details.	Yes
request_id	Card transaction request id.	Yes

How to connect into Pesaswap View Card Transaction (Iveri View Card Transaction)?

You needed the API and Consumer Key.

Sandbox: https://devpesaswap.azurewebsites.net/api/view/iveri-transaction

Production: https://www.pesaswap.com/api/view/iveri-transaction

1
2
3
4
5

6
7
8
9
10
11
12
13
14

												$url = BASE URL;

												$dataArray = array('consumer_key'=>'',

												'api_key'=>'',

												'request_id'=>''

												);

												$ch = curl_init();

												$data = http_build_query($dataArray);

												$getUrl = $url."?".$data;

												curl_setopt($ch, CURLOPT_SSL_VERIFYPEER, FALSE);

												curl_setopt($ch, CURLOPT_FOLLOWLOCATION, TRUE);

												curl_setopt($ch, CURLOPT_RETURNTRANSFER, TRUE);

												curl_setopt($ch, CURLOPT_URL, $getUrl);

												curl_setopt($ch, CURLOPT_TIMEOUT, 80);

												$response = curl_exec($ch);

View Card Transaction Filter by RequestId (Iveri View Card Transaction) - successful request

Json Response

{ "Version": "2.0", "Direction": "Response", "Transaction": { "DeviceSerialNumber": "", "MerchantTrace": "bd3f9680-6d99-11ea-9312-55871d88f5a3", "Amount": "1217500", "AuthorisationCode": "961091", "BudgetPeriod": "0", "Currency": "KES", "ExpiryDate": "072023", "MerchantReference": "bd3f9480-6d99-11ea-9fa3-b5482571cefb", "Terminal": "Default", "TransactionIndex": "27b18798-7104-46d2-899d-00b29fcf08dc", "MerchantUSN": "4000009004009", "Acquirer": "IMNaradaIMKenya", "AcquirerReference": "20200325:008406770626", "AcquirerDate": "20200324", "AcquirerTime": "083605", "DisplayAmount": "KSh 12,175.00", "BIN": "5", "PAN": "5173........5752", "PANMode": "Keyed,CVV", "ReconReference": "000212", "DeviceCycle": "", "ApplicationID": "6fb55598-97e1-4b6c-9b5d-2a7765e2709e", "Command": "Debit", "Mode": "Live", "RequestID": "f4f207f8-5e40-4000-a046-66f680470599", "Result": { "Status": "0", "Code": "0", "Description": "", "Source": "", "AppServer": "PRODGW2012APP1", "DBServer": "PRODGW2012DB2", "Gateway": "HOST" } } }

View Card Transaction Filter by RequestId (Iveri View Card Transaction) - Error Response

Name	Description	Sample Value
error	An error will be shown if parameter is not correct.	{ "error": "Invalid Credentials. Please Check your consumer_key and api_key." }
Message	Request Id is be incorrect.	The request is invalid.
error	Request Id is be incorrect.	Please check the request_id.

View Card Transaction Filter by Application Id (Iveri View Card Transaction)

Method: POST

Parameter	Description	Mandatory
consumer_key	This serves as an api username. You can request this key from administrator or please contact us for more details.	Yes
api_key	This serves as an api user password. You can request this key from administrator or please contact us for more details.	Yes
application_id	Iveri Application Id.	Yes

How to connect into Pesaswap View Card Transaction Filter By Application Id (Iveri View Card Transaction)?

You needed the API and Consumer Key.

Sandbox: https://devpesaswap.azurewebsites.net/api/view/iveri-transaction/filter-by-application-id

Production: https://www.pesaswap.com/api/view/iveri-transaction/filter-by-application-id

1
2
3
4
5

6
7
8
9
10
11
12
13
14

												$url = BASE URL;

												$dataArray = array('consumer_key'=>'',

												'api_key'=>'',

												'application_id'=>''

												);

												$ch = curl_init();

												$data = http_build_query($dataArray);

												$getUrl = $url."?".$data;

												curl_setopt($ch, CURLOPT_SSL_VERIFYPEER, FALSE);

												curl_setopt($ch, CURLOPT_FOLLOWLOCATION, TRUE);

												curl_setopt($ch, CURLOPT_RETURNTRANSFER, TRUE);

												curl_setopt($ch, CURLOPT_URL, $getUrl);

												curl_setopt($ch, CURLOPT_TIMEOUT, 80);

												$response = curl_exec($ch);

View Card Transaction Filter by Application Id (Iveri View Card Transaction) - successful request

Json Array Response - Record for the last 7 days (2 sample records here).

[ { "Version": "2.0", "Direction": "Response", "Transaction": { "MerchantTrace": "46c8813c-09ad-4b48-bbf5-4a4b320d6654", "Amount": "10", "AuthorisationCode": "", "BudgetPeriod": "0", "CCNumber": "4054........9237", "Currency": "KES", "ExpiryDate": "072020", "MerchantReference": "41f1167c-9112-46ca-a69d-b0e856271f4y", "Terminal": "Default", "TransactionIndex": "d9226804-ad6d-4fd9-aa5d-a3ff26e804f2", "MerchantUSN": "4000009004009", "Acquirer": "IMNaradaIMKenya", "AcquirerReference": "20200402:009213688939", "AcquirerDate": "20200401", "AcquirerTime": "154100", "DisplayAmount": "KSh 0.10", "BIN": "4", "PAN": "4054........9237", "PANMode": "Keyed,CVV", "ReconReference": "000217", "ApplicationID": "6fb55598-97e1-4b6c-9b5d-2a7765e2709e", "Command": "Debit", "RequestID": "0c96eaac-38ac-460b-81bd-9c0d0b917d4d", "Result": { "Status": "-1", "Code": "-4", "Description": "Failed", "Source": "IMNaradaIMKenya", "AppServer": "PRODGW2012APP1", "DBServer": "PRODGW2012DB2", "Gateway": "HOST" } } }, { "Version": "2.0", "Direction": "Response", "Transaction": { "MerchantTrace": "46c8813c-09ad-4b48-bbf5-4a4b320d6654", "Amount": "10", "AuthorisationCode": "", "BudgetPeriod": "0", "CCNumber": "4054........9237", "Currency": "KES", "ExpiryDate": "072020", "MerchantReference": "41f1167c-9112-46ca-a69d-b0e856271f4y", "Terminal": "Default", "TransactionIndex": "d9226804-ad6d-4fd9-aa5d-a3ff26e804f2", "MerchantUSN": "4000009004009", "Acquirer": "IMNaradaIMKenya", "AcquirerReference": "20200402:009213688939", "AcquirerDate": "20200401", "AcquirerTime": "154142", "DisplayAmount": "KSh 0.10", "BIN": "4", "PAN": "4054........9237", "PANMode": "Keyed,CVV", "ReconReference": "000218", "ApplicationID": "6fb55598-97e1-4b6c-9b5d-2a7765e2709e", "Command": "Debit", "RequestID": "6164a6d9-07b1-4b3c-bad4-3b98f4fed047", "Result": { "Status": "-1", "Code": "-4", "Description": "Failed", "Source": "IMNaradaIMKenya", "AppServer": "PRODGW2012APP1", "DBServer": "PRODGW2012DB2", "Gateway": "HOST" } } } ]

View Card Transaction Filter by RequestId (Iveri View Card Transaction) - Error Response

Name	Description	Sample Value
error	An error will be shown if parameter is not correct.	{ "error": "Invalid Credentials. Please Check your consumer_key and api_key." }
error	Incorrect application id.	Please check the application_id.

Reconciliation API Request Parameters

Other than automated throwing of callback response, we also have a manual trigger via api call called reconciliation api.

Method: POST

Parameter	Description	Mandatory
consumer_key	This serves as an api username. You can request this key from administrator or please contact us for more details.	Yes
api_key	This serves as an api user password. You can request this key from administrator or please contact us for more details.	Yes
transaction_external_id	This will serve as the primary key for transaction's query. Pesaswap assumed that user's saved and inlcude this key after sending any of those mobile banking api payment request.	Yes

How to connect into Reconciliation API?

You needed the API and Consumer Key.

Sandbox: https://devpesaswap.azurewebsites.net/api/reconcile-transaction

Production: https://www.pesaswap.com/api/reconcile-transaction

1
2
3
4
5

6
7
8
9
10
11
12
13
14

											$url = BASE URL;

											$dataArray = array('consumer_key'=>'',

											'api_key'=>'',

											'transaction_external_id'=>''

											);

											$ch = curl_init();

											$data = http_build_query($dataArray);

											$getUrl = $url."?".$data;

											curl_setopt($ch, CURLOPT_SSL_VERIFYPEER, FALSE);

											curl_setopt($ch, CURLOPT_FOLLOWLOCATION, TRUE);

											curl_setopt($ch, CURLOPT_RETURNTRANSFER, TRUE);

											curl_setopt($ch, CURLOPT_URL, $getUrl);

											curl_setopt($ch, CURLOPT_TIMEOUT, 80);

											$response = curl_exec($ch);

Reconciliation API successful request

Name	Description	Sample Value
success	Success response.	{ "success": "Callback has been sent successfully." }

Reconciliation API Error Response

Name	Description	Sample Value
error	An error will be shown if parameter is not correct.	{ "error": "Invalid Credentials. Please Check your consumer_key and api_key." }

Customer API

Customer's played an important role in ecommerce especially in sales or payment transactions. For monitoring purposes most of the time companies wanted to record their customers too. That's the reason why we provided you a customer API call.

The Pesaswap Customer API has sandbox environment which you can request from Pesaswap Administrator for testing purposes. sandbox environment serves as a simulation of how API's work in production. Sandbox and Production keys are two different keys

How to connect into Pesaswap Customer API?

You needed the API and Consumer Key.

Consumer and API Key, These are the keys to be used by merchants to connect into Pesaswap Customer API. It should be included in the request body to determine if merchant has valid access to our api.

How to get the keys needed for Pesaswap Customer API? Please contact us for more infos about the API.

Create Customer Request Parameters

Method: POST

Parameter	Description	Mandatory
consumer_key	This serves as an api username. You can request this key from administrator or please contact us for more details.	Yes
api_key	This serves as an api user password. You can request this key from administrator or please contact us for more details.	Yes
firstname	Customer's first name	Yes
lastname	Customer's last name	Yes
email	must be an email	Yes
phone	valid mobile number	Yes
address1	Customer's valid address	No
address2	Customer's valid address, could be address extension	No
state	Country's state, must be state code	No
country	Customer's country, must be country code	No
external_id	Must be GUID/UUID. Note: API user must save this to their end. If not provided, pesaswap will autogerate and include this on the response if all fields has been filled-up properly.	No

How to connect into Pesaswap Customer API?

You needed the API and Consumer Key.

Sandbox: https://devpesaswap.azurewebsites.net/api/pesaswap/create/customer

Production: https://www.pesaswap.com/api/pesaswap/create/customer

1
2
3
4

5
6
7
8
9
10
11
12
13
14
15
16
17

18
19
20
21
22
23

											$url = BASE URL;

											$curl_init();

											curl_setopt($curl, CURLOPT_URL, $url);
											curl_setopt($curl, CURLOPT_HTTPHEADER, array('Content-Type:application/json'));

											$curl_post_data = array(

											'consumer_key' => '',

											'api_key' => '',

											'firstname' => '',

											'lastname' => '',

											'email' => '',

											'phone' => '',

											'address1' => '',

											'address2' => '',

											'state' => '',

											'country' => '',

											'external_id' => ''

											);

											$data_string = json_encode($curl_post_data);

											curl_setopt($curl, CURLOPT_RETURNTRANSFER, true);

											curl_setopt($curl, CURLOPT_POST, true);

											curl_setopt($curl, CURLOPT_POSTFIELDS, $data_string);

											$curl_response = curl_exec($curl);

											$response = json_decode($curl_response,true);

Create Customer Request Response - successful request

Name	Description	Sample Value
external_id	External ID, a unique GUID.	FC3CAC60-ACEC-11E9-B3E4-CF823C818EBC
firstname	Customer firstname.	firstname
lastname	Customer lastname.	lastname
email	Customer email.	Valid email
phone	Customer phone.	Valid phone.
address1	Customer address.	Address.
address2	Customer extended address.	Address.
country	Customer country code.	country code.

Create Customer Error Response

Name	Description	Sample Value
error	An error will be shown if parameter is not correct.	{ "error": "Invalid Credentials. Please Check your consumer_key and api_key." }

Update Customer Request Parameters

Method: POST

Parameter	Description	Mandatory
consumer_key	This serves as an api username. You can request this key from administrator or please contact us for more details.	Yes
api_key	This serves as an api user password. You can request this key from administrator or please contact us for more details.	Yes
firstname	Customer's first name	Yes
lastname	Customer's last name	Yes
email	must be an email	Yes
phone	valid mobile number	Yes
address1	Customer's valid address	No
address2	Customer's valid address, could be address extension	No
state	Country's state, must be state code	No
country	Customer's country, must be country code	No
external_id	This will serve as the primary key in updating customer's info. Pesaswap assumed that user's saved this key after sending Create Customer API's request.	Yes

How to connect into Pesaswap Customer API?

You needed the API and Consumer Key.

Sandbox: https://devpesaswap.azurewebsites.net/api/pesaswap/update/customer

Production: https://www.pesaswap.com/api/pesaswap/update/customer

1
2
3
4

5
6
7
8
9
10
11
12
13
14
15
16
17

18
19
20
21
22
23

											$url = BASE URL;

											$curl_init();

											curl_setopt($curl, CURLOPT_URL, $url);
											curl_setopt($curl, CURLOPT_HTTPHEADER, array('Content-Type:application/json'));

											$curl_post_data = array(

											'consumer_key' => '',

											'api_key' => '',

											'firstname' => '',

											'lastname' => '',

											'email' => '',

											'phone' => '',

											'address1' => '',

											'address2' => '',

											'state' => '',

											'country' => '',

											'external_id' => ''

											);

											$data_string = json_encode($curl_post_data);

											curl_setopt($curl, CURLOPT_RETURNTRANSFER, true);

											curl_setopt($curl, CURLOPT_POST, true);

											curl_setopt($curl, CURLOPT_POSTFIELDS, $data_string);

											$curl_response = curl_exec($curl);

											$response = json_decode($curl_response,true);

Update Customer Request Response - successful request

Name	Description	Sample Value
external_id	External ID, a unique GUID.	FC3CAC60-ACEC-11E9-B3E4-CF823C818EBC
firstname	Customer firstname.	firstname
lastname	Customer lastname.	lastname
email	Customer email.	Valid email
phone	Customer phone.	Valid phone.
address1	Customer address.	Address.
address2	Customer extended address.	Address.
country	Customer country code.	country code.

Update Customer Error Response

Name	Description	Sample Value
error	An error will be shown if parameter is not correct.	{ "error": "Invalid Credentials. Please Check your consumer_key and api_key." }

Customer Query Request Parameters

Method: GET

Parameter	Description	Mandatory
consumer_key	This serves as an api username. You can request this key from administrator or please contact us for more details.	Yes
api_key	This serves as an api user password. You can request this key from administrator or please contact us for more details.	Yes
external_id	This will serve as the primary key for customer's query. Pesaswap assumed that user's saved this key after sending Create Customer API's request.	Yes

How to connect into Pesaswap Mobile Banking API?

You needed the API and Consumer Key.

Sandbox: https://devpesaswap.azurewebsites.net/api/pesaswap/query/customer

Production: https://www.pesaswap.com/api/pesaswap/query/customer

1
2
3
4
5

6
7
8
9
10
11
12
13
14

											$url = BASE URL;

											$dataArray = array('consumer_key'=>'',

											'api_key'=>'',

											'external_id'=>''

											);

											$ch = curl_init();

											$data = http_build_query($dataArray);

											$getUrl = $url."?".$data;

											curl_setopt($ch, CURLOPT_SSL_VERIFYPEER, FALSE);

											curl_setopt($ch, CURLOPT_FOLLOWLOCATION, TRUE);

											curl_setopt($ch, CURLOPT_RETURNTRANSFER, TRUE);

											curl_setopt($ch, CURLOPT_URL, $getUrl);

											curl_setopt($ch, CURLOPT_TIMEOUT, 80);

											$response = curl_exec($ch);

Customer Query Filter Request Response - successful request

Name	Description	Sample Value
external_id	External ID, a unique GUID.	FC3CAC60-ACEC-11E9-B3E4-CF823C818EBC
firstname	Customer firstname.	firstname
lastname	Customer lastname.	lastname
email	Customer email.	Valid email
phone	Customer phone.	Valid phone.
address1	Customer address.	Address.
address2	Customer extended address.	Address.
country	Customer country code.	country code.

Customer Query Filter Error Response

Name	Description	Sample Value
error	An error will be shown if parameter is not correct.	{ "error": "Invalid Credentials. Please Check your consumer_key and api_key." }

Payment Request

Also known as a request for payment, is a usual request made by a company, individual, or any business sector for approval of payment for goods or services. It is often used for purchases when an invoice is not provided.

If you needed a utility software that will send an invoice or payment request via email or phone number, Pesawap Payment Request API is the perfect choice for you. This tool is very easy to use. Fully powered RESTFul API that is compatible for WebApp, WebForms(Desktop) and even Mobile App. Payment method is user-friendly. 1.) Create a request via Pesaswap Payment Request API 2.) Customer or Payor will receive payment infos and a link to our Payment IFrame to their email or phone number. 3.) Using the link we sent, customer will now pay using Lipa na Mpesa Express , B2C / Paybill or even via Credit Card.

The Pesaswap Payment Request API has sandbox environment which you can request from Pesaswap Administrator for testing purposes. sandbox environment serves as a simulation of how API's work in production. Sandbox and Production keys are two different keys

How to connect into Pesaswap Payment Request API?

You needed the API and Consumer Key as well as the Paybill Description.

Consumer and API Key, These are the keys to be used by merchants to connect into Pesaswap Payment Request API. It should be included in the request body to determine if merchant has valid access to our api.

How to get the keys needed for Pesaswap Payment Request API? Please contact us for more infos about the API.

Send Payment Request Parameters

Method: POST

Parameter	Description	Mandatory
consumer_key	This serves as an api username. You can request this key from administrator or please contact us for more details.	Yes
api_key	This serves as an api user password. You can request this key from administrator or please contact us for more details.	Yes
paybill_description	Every api must have an admin settings. You can request this key from administrator or please contact us for more details.	Yes
description	Transaction description. IE. Payment for goods.	Yes
range	1 - One time payment. Also known as instant payment method. Once triggered, payment request will be received instantly by the customer or payor through their email or phone number.	Yes
billing_date	Ideally transaction current date. format: mm/dd/yyyy. IE. 10/23/2019	Yes
last_billing_date	Ideally transaction current date. format: mm/dd/yyyy. IE. 10/23/2019	Yes
external_id	Customer external_id. This must be generated on api user's end and must be included on Pesaswap Create Customer API Call. Note: If this is provided, phone is no longer needed(exclude in the parameter). You can send request to multiple customers by using comma(,) as delimiter. IE. customer_external_id#1, customer_external_id#2. It means you are sending the payment request to two(2) different customer.	No
phone_number	Assuming you don't have customer's yet on Pesaswap End.You can still send Payment Request through phone numbers(Maximum of 9). Note: You must exclude the external_id to let the pesaswap api know that you will send a request to their phones. You can also send request to multiple phones by using comma(,) as delimiter. IE. 254708374148, 254708374149. It means you are sending the payment request to two(2) different phones.	No
total_amount	Amount to be paid.	Yes

How to connect into Pesaswap Payment Request API?

You needed the API and Consumer Key as well as the Paybill Description.

Sandbox: https://devpesaswap.azurewebsites.net/api/payment/request

Production: https://www.pesaswap.com/api/payment/request

1
2
3
4

5
6
7
8
9
10
11
12
13
14

15
16
17
18
19
20

											$url = BASE URL;

											$curl_init();

											curl_setopt($curl, CURLOPT_URL, $url);
											curl_setopt($curl, CURLOPT_HTTPHEADER, array('Content-Type:application/json'));

											$curl_post_data = array(

											'consumer_key' => '',

											'api_key' => '',

											'paybill_description' => '',

											'description' => '',

											'range' => '1',

											'external_id' => 'external_id#1,external_id#2',

											'billing_date' => '10/23/2019',

											'last_billing_date' => '10/23/2019',

											'total_amount' => ''
											);

											$data_string = json_encode($curl_post_data);

											curl_setopt($curl, CURLOPT_RETURNTRANSFER, true);

											curl_setopt($curl, CURLOPT_POST, true);

											curl_setopt($curl, CURLOPT_POSTFIELDS, $data_string);

											$curl_response = curl_exec($curl);

											$response = json_decode($curl_response,true);

1
2
3
4

5
6
7
8
9
10
11
12
13
14

15
16
17
18
19
20

											$url = BASE URL;

											$curl_init();

											curl_setopt($curl, CURLOPT_URL, $url);
											curl_setopt($curl, CURLOPT_HTTPHEADER, array('Content-Type:application/json'));

											$curl_post_data = array(

											'consumer_key' => '',

											'api_key' => '',

											'paybill_description' => '',

											'description' => '',

											'range' => '1',

											'phone_number' => '254708374148,254708374149',

											'billing_date' => '10/23/2019',

											'last_billing_date' => '10/23/2019',

											'total_amount' => ''
											);

											$data_string = json_encode($curl_post_data);

											curl_setopt($curl, CURLOPT_RETURNTRANSFER, true);

											curl_setopt($curl, CURLOPT_POST, true);

											curl_setopt($curl, CURLOPT_POSTFIELDS, $data_string);

											$curl_response = curl_exec($curl);

											$response = json_decode($curl_response,true);

Send Payment Request Response - successful request

Name	Description	Sample Value
success	Multiple customer	Payment Request has been created successfully to customer.
success	Multiple phone	Payment Request has been successfully sent to phone number.

Send Payment Request Error Response

Name	Description	Sample Value
error	An error will be shown if parameter phone_number is empty for multiple phone api call.	Phone number is required.
error	An error will be shown if parameter external_id is not exist for multiple customer api call.	external_id does not exist:750719F0-9364-11E9-B2DD-5399F21EC503s
error	An error will be shown if parameter total_amount is not a whole number.	Invalid total_amount. Please enter whole number.

Recurring Billing

An advance feature of payement request. Also known as automated or scheduled payment request. Instead of performing one time fee or one time payment for a subscription type business(IE. Daily, weekly, Monthly, Quarterly, Semi-Annually, Annually, Terms), We strongly advise the API users to use Pesaswap Recurring Billing API to avoid the hassle of creating a payment request over and over again with similar details. The Pesaswap Recurring Billing API will be responsible of sending a payment request to the customer's email or phone base on the range set by the api users.

The Pesaswap Recurring Billing API has sandbox environment which you can request from Pesaswap Administrator for testing purposes. sandbox environment serves as a simulation of how API's work in production. Sandbox and Production keys are two different keys

How to connect into Pesaswap Recurring Billing API?

You needed the API and Consumer Key.

Consumer and API Key, These are the keys to be used by merchants to connect into Pesaswap Recurring Billing API. It should be included in the request body to determine if merchant has valid access to our api.

How to get the keys needed for Pesaswap Recurring Billing API? Please contact us for more infos about the API.

Daily Fee Recurring Billing Request Parameters

Method: POST

Parameter	Description	Mandatory
consumer_key	This serves as an api username. You can request this key from administrator or please contact us for more details.	Yes
api_key	This serves as an api user password. You can request this key from administrator or please contact us for more details.	Yes
paybill_description	Every api must have an admin settings. You can request this key from administrator or please contact us for more details.	Yes
description	Transaction description. IE. Payment for goods.	Yes
range	2 - Daily Fee.	Yes
billing_date	The first billing date. Scheduler started sending automated payment request on this date on a daily basis. NOTE: This must be beyond the current date. format: mm/dd/yyyy. IE. 10/24/2019	Yes
last_billing_date	The last billing date. The sending of automated payment request will stop until this date base on range format: mm/dd/yyyy. IE. 10/25/2019	Yes
external_id	Customer external_id. This must be generated on api user's end and must be included on Pesaswap Create Customer API Call. Note: If this is provided, phone is no longer needed(exclude in the parameter). You can send request to multiple customers by using comma(,) as delimiter. IE. customer_external_id#1, customer_external_id#2. It means you are sending the payment request to two(2) different customer.	No
phone_number	Assuming you don't have customer's yet on Pesaswap End.You can still send Payment Request through phone numbers(Maximum of 9). Note: You must exclude the external_id to let the pesaswap api know that you will send a request to their phones. You can also send request to multiple phones by using comma(,) as delimiter. IE. 254708374148, 254708374149. It means you are sending the payment request to two(2) different phones.	No
total_amount	In recurring billing, The total amount will be devided base on the number of scheduled payment or range. IE. If Daily Fee set on 10/24/2019 with last billing date of 10/25/2019(2 days) with the total amount of 60, therefore the daily billing amount is equal to 30.	Yes

How to connect into Pesaswap Recurring Billing API?

You needed the API and Consumer Key as well as the Paybill Description.

Sandbox: https://devpesaswap.azurewebsites.net/api/payment/request/recurring/billing

Production: https://www.pesaswap.com/api/payment/request/recurring/billing

1
2
3
4

5
6
7
8
9
10
11
12
13
14

15
16
17
18
19
20

											$url = BASE URL;

											$curl_init();

											curl_setopt($curl, CURLOPT_URL, $url);
											curl_setopt($curl, CURLOPT_HTTPHEADER, array('Content-Type:application/json'));

											$curl_post_data = array(

											'consumer_key' => '',

											'api_key' => '',

											'paybill_description' => '',

											'description' => '',

											'range' => '2',

											'external_id' => 'external_id#1,external_id#2',

											'billing_date' => '10/24/2019',

											'last_billing_date' => '10/25/2019',

											'total_amount' => ''
											);

											$data_string = json_encode($curl_post_data);

											curl_setopt($curl, CURLOPT_RETURNTRANSFER, true);

											curl_setopt($curl, CURLOPT_POST, true);

											curl_setopt($curl, CURLOPT_POSTFIELDS, $data_string);

											$curl_response = curl_exec($curl);

											$response = json_decode($curl_response,true);

1
2
3
4

5
6
7
8
9
10
11
12
13
14

15
16
17
18
19
20

											$url = BASE URL;

											$curl_init();

											curl_setopt($curl, CURLOPT_URL, $url);
											curl_setopt($curl, CURLOPT_HTTPHEADER, array('Content-Type:application/json'));

											$curl_post_data = array(

											'consumer_key' => '',

											'api_key' => '',

											'paybill_description' => '',

											'description' => '',

											'range' => '2',

											'phone_number' => '254708374148,254708374149',

											'billing_date' => '10/24/2019',

											'last_billing_date' => '10/25/2019',

											'total_amount' => ''
											);

											$data_string = json_encode($curl_post_data);

											curl_setopt($curl, CURLOPT_RETURNTRANSFER, true);

											curl_setopt($curl, CURLOPT_POST, true);

											curl_setopt($curl, CURLOPT_POSTFIELDS, $data_string);

											$curl_response = curl_exec($curl);

											$response = json_decode($curl_response,true);

Payment Request Daily Fee Recurring Billing Response - successful request

Name	Description	Sample Value
success	Multiple customer	Payment Request has been created successfully to customer.
success	Multiple phone	Payment Request has been successfully sent to phone number.

Payment Request Daily Fee Recurring Billing Error Response

Name	Description	Sample Value
error	An error will be shown if parameter phone_number is empty for multiple phone api call.	Phone number is required.
error	An error will be shown if parameter external_id is not exist for multiple customer api call.	external_id does not exist:750719F0-9364-11E9-B2DD-5399F21EC503s
error	An error will be shown if parameter total_amount is not a whole number.	Invalid total_amount. Please enter whole number.
error	An error will be shown if the billing_date is not beyond current date.	First billing date must beyond the current date.
error	An error will be shown if the last_billing_date is not beyond billing_date.	Last billing date must beyond the first billing date.

Weekly Fee Recurring Billing Request Parameters

Method: POST

Parameter	Description	Mandatory
consumer_key	This serves as an api username. You can request this key from administrator or please contact us for more details.	Yes
api_key	This serves as an api user password. You can request this key from administrator or please contact us for more details.	Yes
paybill_description	Every api must have an admin settings. You can request this key from administrator or please contact us for more details.	Yes
description	Transaction description. IE. Payment for goods.	Yes
range	3 - Weekly Fee.	Yes
billing_date	The first billing date. Scheduler started sending automated payment request on this date on a weekly basis. NOTE: This must be beyond the current date. format: mm/dd/yyyy. IE. 10/24/2019	Yes
last_billing_date	The last billing date. The sending of automated payment request will stop until this date base on range format: mm/dd/yyyy. IE. 10/31/2019	Yes
external_id	Customer external_id. This must be generated on api user's end and must be included on Pesaswap Create Customer API Call. Note: If this is provided, phone is no longer needed(exclude in the parameter). You can send request to multiple customers by using comma(,) as delimiter. IE. customer_external_id#1, customer_external_id#2. It means you are sending the payment request to two(2) different customer.	No
phone_number	Assuming you don't have customer's yet on Pesaswap End.You can still send Payment Request through phone numbers(Maximum of 9). Note: You must exclude the external_id to let the pesaswap api know that you will send a request to their phones. You can also send request to multiple phones by using comma(,) as delimiter. IE. 254708374148, 254708374149. It means you are sending the payment request to two(2) different phones.	No
total_amount	In recurring billing, The total amount will be devided base on the number of scheduled payment or range. IE. If Weekly Fee set on 10/24/2019 with last billing date of 10/31/2019(2 weeks) with the total amount of 60, therefore the weekly billing amount is equal to 30.	Yes

How to connect into Pesaswap Recurring Billing API?

You needed the API and Consumer Key as well as the Paybill Description.

Sandbox: https://devpesaswap.azurewebsites.net/api/payment/request/recurring/billing

Production: https://www.pesaswap.com/api/payment/request/recurring/billing

1
2
3
4

5
6
7
8
9
10
11
12
13
14

15
16
17
18
19
20

											$url = BASE URL;

											$curl_init();

											curl_setopt($curl, CURLOPT_URL, $url);
											curl_setopt($curl, CURLOPT_HTTPHEADER, array('Content-Type:application/json'));

											$curl_post_data = array(

											'consumer_key' => '',

											'api_key' => '',

											'paybill_description' => '',

											'description' => '',

											'range' => '3',

											'external_id' => 'external_id#1,external_id#2',

											'billing_date' => '10/24/2019',

											'last_billing_date' => '11/31/2019',

											'total_amount' => ''
											);

											$data_string = json_encode($curl_post_data);

											curl_setopt($curl, CURLOPT_RETURNTRANSFER, true);

											curl_setopt($curl, CURLOPT_POST, true);

											curl_setopt($curl, CURLOPT_POSTFIELDS, $data_string);

											$curl_response = curl_exec($curl);

											$response = json_decode($curl_response,true);

1
2
3
4

5
6
7
8
9
10
11
12
13
14

15
16
17
18
19
20

											$url = BASE URL;

											$curl_init();

											curl_setopt($curl, CURLOPT_URL, $url);
											curl_setopt($curl, CURLOPT_HTTPHEADER, array('Content-Type:application/json'));

											$curl_post_data = array(

											'consumer_key' => '',

											'api_key' => '',

											'paybill_description' => '',

											'description' => '',

											'range' => '3',

											'phone_number' => '254708374148,254708374149',

											'billing_date' => '10/24/2019',

											'last_billing_date' => '10/31/2019',

											'total_amount' => ''
											);

											$data_string = json_encode($curl_post_data);

											curl_setopt($curl, CURLOPT_RETURNTRANSFER, true);

											curl_setopt($curl, CURLOPT_POST, true);

											curl_setopt($curl, CURLOPT_POSTFIELDS, $data_string);

											$curl_response = curl_exec($curl);

											$response = json_decode($curl_response,true);

Payment Request Weekly Fee Recurring Billing Response - successful request

Name	Description	Sample Value
success	Multiple customer	Payment Request has been created successfully to customer.
success	Multiple phone	Payment Request has been successfully sent to phone number.

Payment Request Weekly Fee Recurring Billing Error Response

Name	Description	Sample Value
error	An error will be shown if parameter phone_number is empty for multiple phone api call.	Phone number is required.
error	An error will be shown if parameter external_id is not exist for multiple customer api call.	external_id does not exist:750719F0-9364-11E9-B2DD-5399F21EC503s
error	An error will be shown if parameter total_amount is not a whole number.	Invalid total_amount. Please enter whole number.
error	An error will be shown if the billing_date is not beyond current date.	First billing date must beyond the current date.
error	An error will be shown if the last_billing_date is not beyond billing_date.	Last billing date must beyond the first billing date.

Monthly Fee Recurring Billing Request Parameters

Method: POST

Parameter	Description	Mandatory
consumer_key	This serves as an api username. You can request this key from administrator or please contact us for more details.	Yes
api_key	This serves as an api user password. You can request this key from administrator or please contact us for more details.	Yes
paybill_description	Every api must have an admin settings. You can request this key from administrator or please contact us for more details.	Yes
description	Transaction description. IE. Payment for goods.	Yes
range	4 - Monthly Fee.	Yes
billing_date	The first billing date. Scheduler started sending automated payment request on this date on a weekly basis. NOTE: This must be beyond the current date. format: mm/dd/yyyy. IE. 10/24/2019	Yes
last_billing_date	The last billing date. The sending of automated payment request will stop until this date base on range format: mm/dd/yyyy. IE. 11/24/2019	Yes
external_id	Customer external_id. This must be generated on api user's end and must be included on Pesaswap Create Customer API Call. Note: If this is provided, phone is no longer needed(exclude in the parameter). You can send request to multiple customers by using comma(,) as delimiter. IE. customer_external_id#1, customer_external_id#2. It means you are sending the payment request to two(2) different customer.	No
phone_number	Assuming you don't have customer's yet on Pesaswap End.You can still send Payment Request through phone numbers(Maximum of 9). Note: You must exclude the external_id to let the pesaswap api know that you will send a request to their phones. You can also send request to multiple phones by using comma(,) as delimiter. IE. 254708374148, 254708374149. It means you are sending the payment request to two(2) different phones.	No
total_amount	In recurring billing, The total amount will be devided base on the number of scheduled payment or range. IE. If Monthly Fee set on 10/24/2019 with last billing date of 11/24/2019(2 months) with the total amount of 60, therefore the monthly billing amount is equal to 30.	Yes

How to connect into Pesaswap Recurring Billing API?

You needed the API and Consumer Key as well as the Paybill Description.

Sandbox: https://devpesaswap.azurewebsites.net/api/payment/request/recurring/billing

Production: https://www.pesaswap.com/api/payment/request/recurring/billing

1
2
3
4

5
6
7
8
9
10
11
12
13
14

15
16
17
18
19
20

											$url = BASE URL;

											$curl_init();

											curl_setopt($curl, CURLOPT_URL, $url);
											curl_setopt($curl, CURLOPT_HTTPHEADER, array('Content-Type:application/json'));

											$curl_post_data = array(

											'consumer_key' => '',

											'api_key' => '',

											'paybill_description' => '',

											'description' => '',

											'range' => '4',

											'external_id' => 'external_id#1,external_id#2',

											'billing_date' => '10/24/2019',

											'last_billing_date' => '11/24/2019',

											'total_amount' => ''
											);

											$data_string = json_encode($curl_post_data);

											curl_setopt($curl, CURLOPT_RETURNTRANSFER, true);

											curl_setopt($curl, CURLOPT_POST, true);

											curl_setopt($curl, CURLOPT_POSTFIELDS, $data_string);

											$curl_response = curl_exec($curl);

											$response = json_decode($curl_response,true);

1
2
3
4

5
6
7
8
9
10
11
12
13
14

15
16
17
18
19
20

											$url = BASE URL;

											$curl_init();

											curl_setopt($curl, CURLOPT_URL, $url);
											curl_setopt($curl, CURLOPT_HTTPHEADER, array('Content-Type:application/json'));

											$curl_post_data = array(

											'consumer_key' => '',

											'api_key' => '',

											'paybill_description' => '',

											'description' => '',

											'range' => '4',

											'phone_number' => '254708374148,254708374149',

											'billing_date' => '10/24/2019',

											'last_billing_date' => '11/24/2019',

											'total_amount' => ''
											);

											$data_string = json_encode($curl_post_data);

											curl_setopt($curl, CURLOPT_RETURNTRANSFER, true);

											curl_setopt($curl, CURLOPT_POST, true);

											curl_setopt($curl, CURLOPT_POSTFIELDS, $data_string);

											$curl_response = curl_exec($curl);

											$response = json_decode($curl_response,true);

Payment Request Monthly Fee Recurring Billing Response - successful request

Name	Description	Sample Value
success	Multiple customer	Payment Request has been created successfully to customer.
success	Multiple phone	Payment Request has been successfully sent to phone number.

Payment Request Monthly Fee Recurring Billing Error Response

Name	Description	Sample Value
error	An error will be shown if parameter phone_number is empty for multiple phone api call.	Phone number is required.
error	An error will be shown if parameter external_id is not exist for multiple customer api call.	external_id does not exist:750719F0-9364-11E9-B2DD-5399F21EC503s
error	An error will be shown if parameter total_amount is not a whole number.	Invalid total_amount. Please enter whole number.
error	An error will be shown if the billing_date is not beyond current date.	First billing date must beyond the current date.
error	An error will be shown if the last_billing_date is not beyond billing_date.	Last billing date must beyond the first billing date.

Quarterly Fee Recurring Billing Request Parameters

Method: POST

Parameter	Description	Mandatory
consumer_key	This serves as an api username. You can request this key from administrator or please contact us for more details.	Yes
api_key	This serves as an api user password. You can request this key from administrator or please contact us for more details.	Yes
paybill_description	Every api must have an admin settings. You can request this key from administrator or please contact us for more details.	Yes
description	Transaction description. IE. Payment for goods.	Yes
range	5 - Quarterly Fee (Every 3 months).	Yes
billing_date	The first billing date. Scheduler started sending automated payment request on this date on a quarterly basis. NOTE: This must be beyond the current date. format: mm/dd/yyyy. IE. 10/24/2019	Yes
last_billing_date	The last billing date. The sending of automated payment request will stop until this date base on range format: mm/dd/yyyy. IE. 01/24/2020	Yes
external_id	Customer external_id. This must be generated on api user's end and must be included on Pesaswap Create Customer API Call. Note: If this is provided, phone is no longer needed(exclude in the parameter). You can send request to multiple customers by using comma(,) as delimiter. IE. customer_external_id#1, customer_external_id#2. It means you are sending the payment request to two(2) different customer.	No
phone_number	Assuming you don't have customer's yet on Pesaswap End.You can still send Payment Request through phone numbers(Maximum of 9). Note: You must exclude the external_id to let the pesaswap api know that you will send a request to their phones. You can also send request to multiple phones by using comma(,) as delimiter. IE. 254708374148, 254708374149. It means you are sending the payment request to two(2) different phones.	No
total_amount	In recurring billing, The total amount will be devided base on the number of scheduled payment or range. IE. If Quarterly Fee set on 10/24/2019 with last billing date of 01/24/2020(2 quarters) with the total amount of 60, therefore the quarterly billing amount is equal to 30.	Yes

How to connect into Pesaswap Recurring Billing API?

You needed the API and Consumer Key as well as the Paybill Description.

Sandbox: https://devpesaswap.azurewebsites.net/api/payment/request/recurring/billing

Production: https://www.pesaswap.com/api/payment/request/recurring/billing

1
2
3
4

5
6
7
8
9
10
11
12
13
14

15
16
17
18
19
20

											$url = BASE URL;

											$curl_init();

											curl_setopt($curl, CURLOPT_URL, $url);
											curl_setopt($curl, CURLOPT_HTTPHEADER, array('Content-Type:application/json'));

											$curl_post_data = array(

											'consumer_key' => '',

											'api_key' => '',

											'paybill_description' => '',

											'description' => '',

											'range' => '5',

											'external_id' => 'external_id#1,external_id#2',

											'billing_date' => '10/24/2019',

											'last_billing_date' => '01/24/2020',

											'total_amount' => ''
											);

											$data_string = json_encode($curl_post_data);

											curl_setopt($curl, CURLOPT_RETURNTRANSFER, true);

											curl_setopt($curl, CURLOPT_POST, true);

											curl_setopt($curl, CURLOPT_POSTFIELDS, $data_string);

											$curl_response = curl_exec($curl);

											$response = json_decode($curl_response,true);

1
2
3
4

5
6
7
8
9
10
11
12
13
14

15
16
17
18
19
20

											$url = BASE URL;

											$curl_init();

											curl_setopt($curl, CURLOPT_URL, $url);
											curl_setopt($curl, CURLOPT_HTTPHEADER, array('Content-Type:application/json'));

											$curl_post_data = array(

											'consumer_key' => '',

											'api_key' => '',

											'paybill_description' => '',

											'description' => '',

											'range' => '5',

											'phone_number' => '254708374148,254708374149',

											'billing_date' => '10/24/2019',

											'last_billing_date' => '01/24/2020',

											'total_amount' => ''
											);

											$data_string = json_encode($curl_post_data);

											curl_setopt($curl, CURLOPT_RETURNTRANSFER, true);

											curl_setopt($curl, CURLOPT_POST, true);

											curl_setopt($curl, CURLOPT_POSTFIELDS, $data_string);

											$curl_response = curl_exec($curl);

											$response = json_decode($curl_response,true);

Payment Request Quarterly Fee Recurring Billing Response - successful request

Name	Description	Sample Value
success	Multiple customer	Payment Request has been created successfully to customer.
success	Multiple phone	Payment Request has been successfully sent to phone number.

Payment Request Quarterly Fee Recurring Billing Error Response

Name	Description	Sample Value
error	An error will be shown if parameter phone_number is empty for multiple phone api call.	Phone number is required.
error	An error will be shown if parameter external_id is not exist for multiple customer api call.	external_id does not exist:750719F0-9364-11E9-B2DD-5399F21EC503s
error	An error will be shown if parameter total_amount is not a whole number.	Invalid total_amount. Please enter whole number.
error	An error will be shown if the billing_date is not beyond current date.	First billing date must beyond the current date.
error	An error will be shown if the last_billing_date is not beyond billing_date.	Last billing date must beyond the first billing date.

Semi-Annually Fee Recurring Billing Request Parameters

Method: POST

Parameter	Description	Mandatory
consumer_key	This serves as an api username. You can request this key from administrator or please contact us for more details.	Yes
api_key	This serves as an api user password. You can request this key from administrator or please contact us for more details.	Yes
paybill_description	Every api must have an admin settings. You can request this key from administrator or please contact us for more details.	Yes
description	Transaction description. IE. Payment for goods.	Yes
range	6 - Semi-Annually Fee (Every 6 months).	Yes
billing_date	The first billing date. Scheduler started sending automated payment request on this date on a quarterly basis. NOTE: This must be beyond the current date. format: mm/dd/yyyy. IE. 10/24/2019	Yes
last_billing_date	The last billing date. The sending of automated payment request will stop until this date base on range format: mm/dd/yyyy. IE. 01/24/2020	Yes
external_id	Customer external_id. This must be generated on api user's end and must be included on Pesaswap Create Customer API Call. Note: If this is provided, phone is no longer needed(exclude in the parameter). You can send request to multiple customers by using comma(,) as delimiter. IE. customer_external_id#1, customer_external_id#2. It means you are sending the payment request to two(2) different customer.	No
phone_number	Assuming you don't have customer's yet on Pesaswap End.You can still send Payment Request through phone numbers(Maximum of 9). Note: You must exclude the external_id to let the pesaswap api know that you will send a request to their phones. You can also send request to multiple phones by using comma(,) as delimiter. IE. 254708374148, 254708374149. It means you are sending the payment request to two(2) different phones.	No
total_amount	In recurring billing, The total amount will be devided base on the number of scheduled payment or range. IE. If Semi-Annually Fee set on 10/24/2019 with last billing date of 04/24/2020(2 Semis) with the total amount of 60, therefore the Semi-Annually billing amount is equal to 30.	Yes

How to connect into Pesaswap Recurring Billing API?

You needed the API and Consumer Key as well as the Paybill Description.

Sandbox: https://devpesaswap.azurewebsites.net/api/payment/request/recurring/billing

Production: https://www.pesaswap.com/api/payment/request/recurring/billing

1
2
3
4

5
6
7
8
9
10
11
12
13
14

15
16
17
18
19
20

											$url = BASE URL;

											$curl_init();

											curl_setopt($curl, CURLOPT_URL, $url);
											curl_setopt($curl, CURLOPT_HTTPHEADER, array('Content-Type:application/json'));

											$curl_post_data = array(

											'consumer_key' => '',

											'api_key' => '',

											'paybill_description' => '',

											'description' => '',

											'range' => '6',

											'external_id' => 'external_id#1,external_id#2',

											'billing_date' => '10/24/2019',

											'last_billing_date' => '04/24/2020',

											'total_amount' => ''
											);

											$data_string = json_encode($curl_post_data);

											curl_setopt($curl, CURLOPT_RETURNTRANSFER, true);

											curl_setopt($curl, CURLOPT_POST, true);

											curl_setopt($curl, CURLOPT_POSTFIELDS, $data_string);

											$curl_response = curl_exec($curl);

											$response = json_decode($curl_response,true);

1
2
3
4

5
6
7
8
9
10
11
12
13
14

15
16
17
18
19
20

											$url = BASE URL;

											$curl_init();

											curl_setopt($curl, CURLOPT_URL, $url);
											curl_setopt($curl, CURLOPT_HTTPHEADER, array('Content-Type:application/json'));

											$curl_post_data = array(

											'consumer_key' => '',

											'api_key' => '',

											'paybill_description' => '',

											'description' => '',

											'range' => '6',

											'phone_number' => '254708374148,254708374149',

											'billing_date' => '10/24/2019',

											'last_billing_date' => '04/24/2020',

											'total_amount' => ''
											);

											$data_string = json_encode($curl_post_data);

											curl_setopt($curl, CURLOPT_RETURNTRANSFER, true);

											curl_setopt($curl, CURLOPT_POST, true);

											curl_setopt($curl, CURLOPT_POSTFIELDS, $data_string);

											$curl_response = curl_exec($curl);

											$response = json_decode($curl_response,true);

Payment Request Semi-Annually Fee Recurring Billing Response - successful request

Name	Description	Sample Value
success	Multiple customer	Payment Request has been created successfully to customer.
success	Multiple phone	Payment Request has been successfully sent to phone number.

Payment Request Semi-Annually Fee Recurring Billing Error Response

Name	Description	Sample Value
error	An error will be shown if parameter phone_number is empty for multiple phone api call.	Phone number is required.
error	An error will be shown if parameter external_id is not exist for multiple customer api call.	external_id does not exist:750719F0-9364-11E9-B2DD-5399F21EC503s
error	An error will be shown if parameter total_amount is not a whole number.	Invalid total_amount. Please enter whole number.
error	An error will be shown if the billing_date is not beyond current date.	First billing date must beyond the current date.
error	An error will be shown if the last_billing_date is not beyond billing_date.	Last billing date must beyond the first billing date.

Annually Fee Recurring Billing Request Parameters

Method: POST

Parameter	Description	Mandatory
consumer_key	This serves as an api username. You can request this key from administrator or please contact us for more details.	Yes
api_key	This serves as an api user password. You can request this key from administrator or please contact us for more details.	Yes
paybill_description	Every api must have an admin settings. You can request this key from administrator or please contact us for more details.	Yes
description	Transaction description. IE. Payment for goods.	Yes
range	7 - Annually Fee (Yearly).	Yes
billing_date	The first billing date. Scheduler started sending automated payment request on this date on annually basis. NOTE: This must be beyond the current date. format: mm/dd/yyyy. IE. 10/24/2019	Yes
last_billing_date	The last billing date. The sending of automated payment request will stop until this date base on range format: mm/dd/yyyy. IE. 10/24/2020	Yes
external_id	Customer external_id. This must be generated on api user's end and must be included on Pesaswap Create Customer API Call. Note: If this is provided, phone is no longer needed(exclude in the parameter). You can send request to multiple customers by using comma(,) as delimiter. IE. customer_external_id#1, customer_external_id#2. It means you are sending the payment request to two(2) different customer.	No
phone_number	Assuming you don't have customer's yet on Pesaswap End.You can still send Payment Request through phone numbers(Maximum of 9). Note: You must exclude the external_id to let the pesaswap api know that you will send a request to their phones. You can also send request to multiple phones by using comma(,) as delimiter. IE. 254708374148, 254708374149. It means you are sending the payment request to two(2) different phones.	No
total_amount	In recurring billing, The total amount will be devided base on the number of scheduled payment or range. IE. If the Annually Fee set on 10/24/2019 with last billing date of 10/24/2020(2 years) with the total amount of 60, therefore the Annually billing amount is equal to 30.	Yes

How to connect into Pesaswap Recurring Billing API?

You needed the API and Consumer Key as well as the Paybill Description.

Sandbox: https://devpesaswap.azurewebsites.net/api/payment/request/recurring/billing

Production: https://www.pesaswap.com/api/payment/request/recurring/billing

1
2
3
4

5
6
7
8
9
10
11
12
13
14

15
16
17
18
19
20

											$url = BASE URL;

											$curl_init();

											curl_setopt($curl, CURLOPT_URL, $url);
											curl_setopt($curl, CURLOPT_HTTPHEADER, array('Content-Type:application/json'));

											$curl_post_data = array(

											'consumer_key' => '',

											'api_key' => '',

											'paybill_description' => '',

											'description' => '',

											'range' => '7',

											'external_id' => 'external_id#1,external_id#2',

											'billing_date' => '10/24/2019',

											'last_billing_date' => '10/24/2020',

											'total_amount' => ''
											);

											$data_string = json_encode($curl_post_data);

											curl_setopt($curl, CURLOPT_RETURNTRANSFER, true);

											curl_setopt($curl, CURLOPT_POST, true);

											curl_setopt($curl, CURLOPT_POSTFIELDS, $data_string);

											$curl_response = curl_exec($curl);

											$response = json_decode($curl_response,true);

1
2
3
4

5
6
7
8
9
10
11
12
13
14

15
16
17
18
19
20

											$url = BASE URL;

											$curl_init();

											curl_setopt($curl, CURLOPT_URL, $url);
											curl_setopt($curl, CURLOPT_HTTPHEADER, array('Content-Type:application/json'));

											$curl_post_data = array(

											'consumer_key' => '',

											'api_key' => '',

											'paybill_description' => '',

											'description' => '',

											'range' => '7',

											'phone_number' => '254708374148,254708374149',

											'billing_date' => '10/24/2019',

											'last_billing_date' => '10/24/2020',

											'total_amount' => ''
											);

											$data_string = json_encode($curl_post_data);

											curl_setopt($curl, CURLOPT_RETURNTRANSFER, true);

											curl_setopt($curl, CURLOPT_POST, true);

											curl_setopt($curl, CURLOPT_POSTFIELDS, $data_string);

											$curl_response = curl_exec($curl);

											$response = json_decode($curl_response,true);

Payment Request Annually Fee Recurring Billing Response - successful request

Name	Description	Sample Value
success	Multiple customer	Payment Request has been created successfully to customer.
success	Multiple phone	Payment Request has been successfully sent to phone number.

Payment Request Annually Fee Recurring Billing Error Response

Name	Description	Sample Value
error	An error will be shown if parameter phone_number is empty for multiple phone api call.	Phone number is required.
error	An error will be shown if parameter external_id is not exist for multiple customer api call.	external_id does not exist:750719F0-9364-11E9-B2DD-5399F21EC503s
error	An error will be shown if parameter total_amount is not a whole number.	Invalid total_amount. Please enter whole number.
error	An error will be shown if the billing_date is not beyond current date.	First billing date must beyond the current date.
error	An error will be shown if the last_billing_date is not beyond billing_date.	Last billing date must beyond the first billing date.

Terms Fee Recurring Billing Request Parameters

Method: POST

Parameter	Description	Mandatory
consumer_key	This serves as an api username. You can request this key from administrator or please contact us for more details.	Yes
api_key	This serves as an api user password. You can request this key from administrator or please contact us for more details.	Yes
paybill_description	Every api must have an admin settings. You can request this key from administrator or please contact us for more details.	Yes
description	Transaction description. IE. Payment for goods.	Yes
range	8 - Terms (Dynamic).	Yes
billing_date	The first billing date. Scheduler started sending automated payment request on this date on a quarterly basis. NOTE: This must be beyond the current date. format: mm/dd/yyyy. IE. 10/24/2019	Yes
last_billing_date	The last billing date. The sending of automated payment request will stop until this date base on range format: mm/dd/yyyy. IE. 10/24/2019	Yes
external_id	Customer external_id. This must be generated on api user's end and must be included on Pesaswap Create Customer API Call. Note: If this is provided, phone is no longer needed(exclude in the parameter). You can send request to multiple customers by using comma(,) as delimiter. IE. customer_external_id#1, customer_external_id#2. It means you are sending the payment request to two(2) different customer.	No
phone_number	Assuming you don't have customer's yet on Pesaswap End.You can still send Payment Request through phone numbers(Maximum of 9). Note: You must exclude the external_id to let the pesaswap api know that you will send a request to their phones. You can also send request to multiple phones by using comma(,) as delimiter. IE. 254708374148, 254708374149. It means you are sending the payment request to two(2) different phones.	No
total_amount	In terms fee recurring billing, ideally total amount will be the billing amount. IE. Usually terms billing_date is equal to last billing date. If the total amount is equal to 60, then the billing amount is also 60. Note: If you set the last billing date beyond the billing date, it will generate billing every single day. IE. Billing date is 10/24/2020 and Last Billing Date is 10/26/2020 therefore, it will send a payent request three times amounting to 60 each day.	Yes

How to connect into Pesaswap Recurring Billing API?

You needed the API and Consumer Key as well as the Paybill Description.

Sandbox: https://devpesaswap.azurewebsites.net/api/payment/request/recurring/billing

Production: https://www.pesaswap.com/api/payment/request/recurring/billing

1
2
3
4

5
6
7
8
9
10
11
12
13
14

15
16
17
18
19
20

											$url = BASE URL;

											$curl_init();

											curl_setopt($curl, CURLOPT_URL, $url);
											curl_setopt($curl, CURLOPT_HTTPHEADER, array('Content-Type:application/json'));

											$curl_post_data = array(

											'consumer_key' => '',

											'api_key' => '',

											'paybill_description' => '',

											'description' => '',

											'range' => '8',

											'external_id' => 'external_id#1,external_id#2',

											'billing_date' => '01/24/2020',

											'last_billing_date' => '01/24/2020',

											'total_amount' => ''
											);

											$data_string = json_encode($curl_post_data);

											curl_setopt($curl, CURLOPT_RETURNTRANSFER, true);

											curl_setopt($curl, CURLOPT_POST, true);

											curl_setopt($curl, CURLOPT_POSTFIELDS, $data_string);

											$curl_response = curl_exec($curl);

											$response = json_decode($curl_response,true);

1
2
3
4

5
6
7
8
9
10
11
12
13
14

15
16
17
18
19
20

											$url = BASE URL;

											$curl_init();

											curl_setopt($curl, CURLOPT_URL, $url);
											curl_setopt($curl, CURLOPT_HTTPHEADER, array('Content-Type:application/json'));

											$curl_post_data = array(

											'consumer_key' => '',

											'api_key' => '',

											'paybill_description' => '',

											'description' => '',

											'range' => '8',

											'phone_number' => '254708374148,254708374149',

											'billing_date' => '01/24/2020',

											'last_billing_date' => '01/24/2020',

											'total_amount' => ''
											);

											$data_string = json_encode($curl_post_data);

											curl_setopt($curl, CURLOPT_RETURNTRANSFER, true);

											curl_setopt($curl, CURLOPT_POST, true);

											curl_setopt($curl, CURLOPT_POSTFIELDS, $data_string);

											$curl_response = curl_exec($curl);

											$response = json_decode($curl_response,true);

Payment Request Terms Fee Recurring Billing Response - successful request

Name	Description	Sample Value
success	Multiple customer	Payment Request has been created successfully to customer.
success	Multiple phone	Payment Request has been successfully sent to phone number.

Payment Request Terms Fee Recurring Billing Error Response

Name	Description	Sample Value
error	An error will be shown if parameter phone_number is empty for multiple phone api call.	Phone number is required.
error	An error will be shown if parameter external_id is not exist for multiple customer api call.	external_id does not exist:750719F0-9364-11E9-B2DD-5399F21EC503s
error	An error will be shown if parameter total_amount is not a whole number.	Invalid total_amount. Please enter whole number.
error	An error will be shown if the billing_date is not beyond current date.	First billing date must beyond the current date.
error	An error will be shown if the last_billing_date is not beyond billing_date.	Last billing date must beyond the first billing date.

Wallet API - Recommended

Download the Wallet API postman collection here.

Header Tokenization API Call

Steps on how to generate header token.

Please login to production site or sandbox site portal as merchant.

To view the consumer and api keys and other credentials, click the user icon on upper right menu and select API Keys and Credentials
- Note: Merchant needs to submit all the required documents first for KYC purposes before it can access the api and consumer keys.

Please see sample code below and parameter's definition.

Header Tokenization Request Parameter - JSON Body

Sandbox: https://devpesaswap-csharp.azurewebsites.net/api/tokenization
Production: https://api.pesaswap.com/api/tokenization

Method: POST

Parameter	Description	Mandatory
ConsumerKey	This serves as an api username. You can request this key from administrator or please contact us for more details.	Yes
ApiKey	This serves as an api user password. You can request this key from administrator or please contact us for more details.	Yes

Sample Body in JSON

Description	Value
Body: JSON RAW Parameter	{ "ConsumerKey":"your-ConsumerKey", "ApiKey":"your-ApiKey" }

Successful request

Description

Sample Value

Success response

Token Expiration

1 Hour

Error Response

Description	Sample Value
Unauthorized	Http error 401

Airtel Collection Payment WALLET API

Steps on how to connect Airtel Collection Payment WALLET API.

Airtel Collection Payment WALLET API - JSON Body

Sandbox: https://devpesaswap-csharp.azurewebsites.net/api/wallet/airtel-collection-payment
Production: https://api.pesaswap.com/api/wallet/airtel-collection-payment

Method: POST

Parameter	Description	Mandatory
MerchantIdentifier	your-MerchantIdentifier	Yes
TransactionExternalId	your-TransactionExternalId	Yes
Msisdn	Airtel phone number	Yes
Amount	amount to be paid	Yes
Country	KE	Yes
Currency	KES	Yes

Sample Body in JSON

Description	Value
Body: JSON RAW Parameter	{ "MerchantIdentifier":"MerchantIdentifier", "TransactionExternalId": "your-TransactionExternalId", "Msisdn":"789743304", "Amount":10, "Country": "KE", "Currency": "KES" }

Sample Header

Description	Value
Content-Type	application/json
Authorization	Bearer eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJodHRwOi8vc2NoZW1hcy54bWxzb2FwLm9yZy93cy8yMDA1LzA1L2lkZW50aXR5L2NsYWltcy9uYW1lIjoiUG93ZXJlZCBCeSBKV1QgVGVjaG5vbG9neSIsImV4cCI6MTY0NzE0ODU1NCwiaXNzIjoiaHR0cHM6Ly9hcGkucGVzYXN3YXAuY29tLyIsImF1ZCI6Imh0dHBzOi8vYXBpLnBlc2Fzd2FwLmNvbS8ifQ.iNVIYmsGj10V5gjUPbEF7OPYfsodgp63DIiJaxEeyWY

Successful request

Description	Sample Value
Success response	{ "responseDescription": "Success." }

Error Response

Description	Sample Value
Error response	{ "error": "Duplicate transaction_external_id." }

Airtel Disbursement Payment WALLET API

Steps on how to connect Airtel Disbursement Payment WALLET API.

Airtel Disbursement Payment WALLET API - JSON Body

Sandbox: https://devpesaswap-csharp.azurewebsites.net/api/wallet/airtel-disburse-payment
Production: https://api.pesaswap.com/api/wallet/airtel-disburse-payment

Method: POST

Parameter	Description	Mandatory
MerchantIdentifier	your-MerchantIdentifier	Yes
TransactionExternalId	your-TransactionExternalId	Yes
Msisdn	Airtel phone number	Yes
Amount	amount to be transferred.	Yes
Country	KE	Yes
Currency	KES	Yes

Sample Body in JSON

Description	Value
Body: JSON RAW Parameter	{ "MerchantIdentifier":"MerchantIdentifier", "TransactionExternalId": "your-TransactionExternalId", "Msisdn":"789743304", "Amount":10, "Country": "KE", "Currency": "KES" }

Sample Header

Description	Value
Content-Type	application/json
Authorization	Bearer eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJodHRwOi8vc2NoZW1hcy54bWxzb2FwLm9yZy93cy8yMDA1LzA1L2lkZW50aXR5L2NsYWltcy9uYW1lIjoiUG93ZXJlZCBCeSBKV1QgVGVjaG5vbG9neSIsImV4cCI6MTY0NzE0ODU1NCwiaXNzIjoiaHR0cHM6Ly9hcGkucGVzYXN3YXAuY29tLyIsImF1ZCI6Imh0dHBzOi8vYXBpLnBlc2Fzd2FwLmNvbS8ifQ.iNVIYmsGj10V5gjUPbEF7OPYfsodgp63DIiJaxEeyWY

Successful request

Description	Sample Value
Success response	{ "responseDescription": "24510993434. Ksh 1 deposited to Hellen kimanza 0751435103 on 18/03/22 at 02:28 PM. New float balance is Ksh 57,610." }

Error Response

Description	Sample Value
Error response	{ "error": "Duplicate transaction_external_id." }

Balance Summary WALLET API

Steps on how to connect Balance Summary WALLET API.

Balance Summary WALLET API - JSON Body

Sandbox: https://devpesaswap-csharp.azurewebsites.net/api/wallet/balance-summary
Production: https://api.pesaswap.com/api/wallet/balance-summary

Method: GET

Parameter	Description	Mandatory
MerchantIdentifier	your-MerchantIdentifier	Yes

Sample Body in JSON

Description	Value
Body: JSON RAW Parameter	{ "MerchantIdentifier":"MerchantIdentifier", "OriginalTransactionExternalId": "your-OriginalTransactionExternalId", "TransactionExternalId": "your-TransactionExternalId" }

Sample Header

Description	Value
Content-Type	application/json
Authorization	Bearer eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJodHRwOi8vc2NoZW1hcy54bWxzb2FwLm9yZy93cy8yMDA1LzA1L2lkZW50aXR5L2NsYWltcy9uYW1lIjoiUG93ZXJlZCBCeSBKV1QgVGVjaG5vbG9neSIsImV4cCI6MTY0NzE0ODU1NCwiaXNzIjoiaHR0cHM6Ly9hcGkucGVzYXN3YXAuY29tLyIsImF1ZCI6Imh0dHBzOi8vYXBpLnBlc2Fzd2FwLmNvbS8ifQ.iNVIYmsGj10V5gjUPbEF7OPYfsodgp63DIiJaxEeyWY

Successful request

Description	Sample Value
Success response	{ "result": [ { "sales": 10000, "refund": 0, "b2CReversal": 0, "fundsTransfer": 2500, "payout": 0, "remainingBalance": 7500 } ] }

Error Response

Description	Sample Value
Error response	{ "result": "Invalid merchant identifier." }

Checkout Page With Cybersource Wallet

Another secured payment checkout page is via cybersource. Please see details below.

Steps on how to connect and setup the Card Payment Checkout Page With Cybersource

Please login to production site or sandbox site portal as merchant.

To view the merchant_identifier , click the user icon on upper right menu and select API Key and Credentials.
- Note: Merchant needs to submit all the required documents first for KYC purposes before it can access the merchant_identifier.

homePageUrl - Also known as landing or redirection page when you click the "Refresh Page" button after cybersource payment processes has been done. It just redirect to your ideal page.

Create your own checkout page. How to do it? Please download the sample Iframe Code here. Replace the value of merchant_identifier and homePageUrl. You can design your own css for iframe as well.

Sample Checkout Page Via Cybersource Using an Iframe

Sandbox: https://devpesaswap.azurewebsites.net/cybersource/payment-info

Production: https://www.pesaswap.com/checkout/cybersource/payment-info

Parameter

Description	Value	Mandatory
merchant_identifier	Please login to production site or sandbox site portal as merchant. To view the merchant_identifier , click the user icon on upper right menu and select API Key and Credentials. Note: Merchant needs to submit all the required documents first for KYC purposes before it can access the merchant_identifier.	Yes
transaction_external_id	Prefer GUID/UUID. Serves as a primary key for transaction and will be used for record integration, from Pesaswap to user’s end.	Optional
customer_external_id	Must be GUID/UUID. Though it is optional, we strongly suggest to include this on api call for you to monitor the payment from your specific customers.	Optional
is_wallet	1	Yes for Pesaswap Wallet

Complete Iframe SRC Link

Description	Value
Iframe sample link	{{base_url}}?merchant_identifier=your-cybersource-identifier &&transaction_external_id=your-transaction-external-id &&customer_external_id=your-customer-external-id &&is_wallet=1

How to customize your logo?

How to change the checkout page logo into your own logo?
Login as merchant to pesaswap. On sidebar menu, select Checkout Page . Select Upload Logo . Browse your logo and click Save.

Checkout Page With Iveri

Pesaswap offer a more secured and hassle free Credit Card payment called the checkout page. The user can just call the checkout page on their template through iframe, supply the required parameters and use it for card payment. It can cater both 3d secured enrolled and unenrolled card. Please see details below.

Steps on how to connect and setup the Card Payment Checkout Page With Iveri

Please login to production site or sandbox site portal as merchant.

To view the consumer and api keys, click the user icon on upper right menu and select API Key and Credentials.
- Note: Merchant needs to submit all the required documents first for KYC purposes before it can access the api and consumer keys.

To view the customer_external_id:
1. Click [Customers] sidebar menu, use search engine if needed.
2. Click [eye] icon on the list
3. Look for [Exernal ID] field.

Generate token using tokenization api. Sample Code below.
Create an IFRAME or an HTML IFrame and supply the required parameter needed for the checkout page.
Please see sample code below and parameter's definition.

Pesaswap Tokenization

Tokenization is part of the checkout process. It is also serve as an identity of a merchant for a secured payment process.

Method: POST

Sandbox: https://devpesaswap.azurewebsites.net/api/generate-checkout-token

Production: https://www.pesaswap.com/api/generate-checkout-token

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

											$url = BASE URL;

											$curl_init();

											curl_setopt($curl, CURLOPT_URL, $url);
											curl_setopt($curl, CURLOPT_HTTPHEADER, array('Content-Type:application/json'));

											$curl_post_data = array(

											'consumer_key' => '',

											'api_key' => ''

											);

											$data_string = json_encode($curl_post_data);

											curl_setopt($curl, CURLOPT_RETURNTRANSFER, true);

											curl_setopt($curl, CURLOPT_POST, true);

											curl_setopt($curl, CURLOPT_POSTFIELDS, $data_string);

											$curl_response = curl_exec($curl);

											$response = json_decode($curl_response,true);

Pesaswap Tokenization Parameter

Description	Value	Mandatory
Consumer Key	Merchant Consumer Key	Yes
API Key	Merchant API Key	Yes

Pesaswap Tokenization Success Response

Description	Value
The ‘token’ will be generated which will be used in one of the checkout page parameters. It will expire in 1 hour prior to the time of creation.	{ "token": "0f3b9af0-219a-11ea-992e-ff8147e8420a", "expiration": "yyyy-mm-dd hh:mm:ss" }

Pesaswap Tokenization Error Response

Description	Value
An error will be raised if tokenization failes.	{ "error": "Invalid Credentials. Please Check your consumer_key and api_key." }

Checkout Page Using an Iframe

The checkout page could be grabbed and used using an iframe in your webapp or mobile page.

Sandbox: https://devpesaswap.azurewebsites.net/checkout/v1

Production: https://www.pesaswap.com/checkout/v1

Parameter

Description	Value	Mandatory
token	Generated from api call (tokenization)	Yes
currency	Money currency	Yes
amount	Amount to be processes	Yes
transaction_external_id	Prefer GUID/UUID. Serves as a primary key for transaction and will be used for record integration, from Pesaswap to user’s end.	Yes
customer_external_id	An existing customer’s GUID/UUID saved on Pesaswap endpoint which serves as a primary key.	No - for 3d secured enrolled card Yes - for un-enrolled 3d secured card - required for fraud.net fraud manager.

Success Response

Description	Value
Once payment has been succeeded, you will be redirected to success template.	Payment has been succeeded.

Error Response

Description	Value
You will be redirected to error template if something is not correct.	Sample message: transaction_external_id already exist!, Missing PAN., etc.

Sample Html Code

Html Code
Download sample html iframe code.

Sample Checkout Page Via Iveri Using an Iframe

Checkout page

Complete Iframe SRC Link

Description	Value
Iframe sample link	{{base_url}}?token=your-token&& currency=KES&&amount=1&&transaction_external_id=your-transaction_external_id&&customer_external_id=your-customer_external_id&&is_wallet=1

How to customize your logo?

How to change the checkout page logo into your own logo?
Login as merchant to pesaswap. On sidebar menu, select Checkout Page . Select Upload Logo . Browse your logo and click Save.

MPESA LIPA WALLET API

Steps on how to connect MPESA LIPA WALLET API.

MPESA LIPA WALLET API - JSON Body

Sandbox: https://devpesaswap-csharp.azurewebsites.net/api/wallet/mpesa-lipa
Production: https://api.pesaswap.com/api/wallet/mpesa-lipa

Method: POST

Parameter	Description	Mandatory
MerchantIdentifier	your-MerchantIdentifier	Yes
TransactionExternalId	your-TransactionExternalId	Yes
Amount	Amount to be paid.	Yes
PhoneNumber	Mpesa Receiver's phone	Yes
Comment	your-comment or remark	Yes

Sample Body in JSON

Description	Value
Body: JSON RAW Parameter	{ "MerchantIdentifier":"MerchantIdentifier", "TransactionExternalId": "your-TransactionExternalId", "Amount":10, "PhoneNumber":"254123456789", "Comment": "your-Comment" }

Sample Header

Description	Value
Content-Type	application/json
Authorization	Bearer eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJodHRwOi8vc2NoZW1hcy54bWxzb2FwLm9yZy93cy8yMDA1LzA1L2lkZW50aXR5L2NsYWltcy9uYW1lIjoiUG93ZXJlZCBCeSBKV1QgVGVjaG5vbG9neSIsImV4cCI6MTY0NzE0ODU1NCwiaXNzIjoiaHR0cHM6Ly9hcGkucGVzYXN3YXAuY29tLyIsImF1ZCI6Imh0dHBzOi8vYXBpLnBlc2Fzd2FwLmNvbS8ifQ.iNVIYmsGj10V5gjUPbEF7OPYfsodgp63DIiJaxEeyWY

Successful request

Description	Sample Value
Success response	{ "responseDescription": "Success. Request accepted for processing." }

Error Response

Description	Sample Value
Error response	{ "error": "Duplicate transaction_external_id." }

MPESA B2C WALLET API

Steps on how to connect MPESA B2C WALLET API.

MPESA B2C WALLET API - JSON Body

Sandbox: https://devpesaswap-csharp.azurewebsites.net/api/wallet/mpesa-b2c
Production: https://api.pesaswap.com/api/wallet/mpesa-b2c

Method: POST

Parameter	Description	Mandatory
MerchantIdentifier	your-MerchantIdentifier	Yes
TransactionExternalId	your-TransactionExternalId	Yes
Amount	Amount to payout.	Yes
CommandId	ie. SalaryPayment	Yes
PartyB	receiver's mpesa phone number	Yes

Sample Body in JSON

Description	Value
Body: JSON RAW Parameter	{ "MerchantIdentifier":"MerchantIdentifier", "TransactionExternalId": "your-TransactionExternalId", "Amount":10, "CommandId":"SalaryPayment", "PartyB": "254123456789" }

Sample Header

Description	Value
Content-Type	application/json
Authorization	Bearer eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJodHRwOi8vc2NoZW1hcy54bWxzb2FwLm9yZy93cy8yMDA1LzA1L2lkZW50aXR5L2NsYWltcy9uYW1lIjoiUG93ZXJlZCBCeSBKV1QgVGVjaG5vbG9neSIsImV4cCI6MTY0NzE0ODU1NCwiaXNzIjoiaHR0cHM6Ly9hcGkucGVzYXN3YXAuY29tLyIsImF1ZCI6Imh0dHBzOi8vYXBpLnBlc2Fzd2FwLmNvbS8ifQ.iNVIYmsGj10V5gjUPbEF7OPYfsodgp63DIiJaxEeyWY

Successful request

Description	Sample Value
Success response	{ "responseDescription": "Accept the service request successfully." }

Error Response

Description	Sample Value
Error response	{ "error": "Duplicate transaction_external_id." }

Refund WALLET API

Steps on how to connect Refund WALLET API.

Refund WALLET API - JSON Body

Sandbox: https://devpesaswap-csharp.azurewebsites.net/api/wallet/refund
Production: https://api.pesaswap.com/api/wallet/refund

Method: POST

Parameter	Description	Mandatory
MerchantIdentifier	your-MerchantIdentifier	Yes
OriginalTransactionExternalId	your-OriginalTransactionExternalId	Yes
TransactionExternalId	your-TransactionExternalId	Yes

Sample Body in JSON

Description	Value
Body: JSON RAW Parameter	{ "MerchantIdentifier":"MerchantIdentifier", "OriginalTransactionExternalId": "your-OriginalTransactionExternalId", "TransactionExternalId": "your-TransactionExternalId" }

Sample Header

Description	Value
Content-Type	application/json
Authorization	Bearer eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJodHRwOi8vc2NoZW1hcy54bWxzb2FwLm9yZy93cy8yMDA1LzA1L2lkZW50aXR5L2NsYWltcy9uYW1lIjoiUG93ZXJlZCBCeSBKV1QgVGVjaG5vbG9neSIsImV4cCI6MTY0NzE0ODU1NCwiaXNzIjoiaHR0cHM6Ly9hcGkucGVzYXN3YXAuY29tLyIsImF1ZCI6Imh0dHBzOi8vYXBpLnBlc2Fzd2FwLmNvbS8ifQ.iNVIYmsGj10V5gjUPbEF7OPYfsodgp63DIiJaxEeyWY

Successful request

Description	Sample Value
Success response	{ "responseDescription": "Success. Request accepted for processing." }

Error Response

Description	Sample Value
Error response	{ "error": "Duplicate transaction_external_id." }

Transactions List WALLET API

Steps on how to connect Transactions List WALLET API.

Transactions List WALLET API - JSON Body

Sandbox: https://devpesaswap-csharp.azurewebsites.net/api/wallet/transactions
Production: https://api.pesaswap.com/api/wallet/transactions

Method: GET

Parameter	Description	Mandatory
MerchantIdentifier	your-MerchantIdentifier	Yes
TransactionExternalId	your-TransactionExternalId	No
FromDate	yyyy-mm-dd	No
ToDate	yyyy-mm-dd	No
Status	1-Completed, 2-Failed, 3-Pending	No
Skip	0	No
Take	10	No

Sample Body in JSON

Description	Value
Body: JSON RAW Parameter	{ "MerchantIdentifier":"MerchantIdentifier", "TransactionExternalId": "your-TransactionExternalId", "FromDate": "2020-04-01", "ToDate": "2022-04-28", "Status": 2, "Skip": 0, "Take": 100 }

Sample Header

Description	Value
Content-Type	application/json
Authorization	Bearer eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJodHRwOi8vc2NoZW1hcy54bWxzb2FwLm9yZy93cy8yMDA1LzA1L2lkZW50aXR5L2NsYWltcy9uYW1lIjoiUG93ZXJlZCBCeSBKV1QgVGVjaG5vbG9neSIsImV4cCI6MTY0NzE0ODU1NCwiaXNzIjoiaHR0cHM6Ly9hcGkucGVzYXN3YXAuY29tLyIsImF1ZCI6Imh0dHBzOi8vYXBpLnBlc2Fzd2FwLmNvbS8ifQ.iNVIYmsGj10V5gjUPbEF7OPYfsodgp63DIiJaxEeyWY

Successful request

Description

Sample Value

Success response

{
"result": [
{ "transactionExternalId": "_test1232",
"transactionId": "N2N2FKQ9DRGVVUNARCOG",
"businessName": "top",
"type": "sales",
"status": "Failed",
"description": "The Request ID is invalid/Already processed.",
"amount": 1,
"currency": "KES",
"customer": "",
"mpesaCustomer": "",
"method": "airtel collection",
"phone": "789743304",
"dateCreated": "2022-04-21T17:06:07",
"eaDate": "2022-04-21T20:06:07" },
],
}

Error Response

Description	Sample Value
Error response	{ "result": "Invalid merchant identifier." }

Woocommerce

Open-source software like woocommerce is very popular now a days where everyone can setup their own online store particularly wordpress users.

Pesaswap leverage the REST api as 1.) Pesaswap Collection (Mpesa, Airtel, MTN-Momo) and 2.) Pesaswap Card Checkout in a form of Woocommerce Plugin.

Pesaswap Woocommerce Plugin

Steps on how to use Woocommerce Plugin

Please login to production site or sandbox site portal as merchant.

To view the settings, click the user icon on upper right menu and select API Keys and Credentials

Please find the Woocommerce Plugin Settings located at LOWER part of the page page where you can download the plugin as well.
1. Pesaswap Collection (Mpesa, Airtel, MTN-Momo) Woocommerce Plugin
2. Pesaswap Card Checkout Woocommerce Plugin

Checkout Page With Iveri

Steps on how to connect and setup the Card Payment Checkout Page With Iveri

Please login to production site or sandbox site portal as merchant.

To view the consumer and api keys, click the user icon on upper right menu and select API Key
- Note: Merchant needs to submit all the required documents first for KYC purposes before it can access the api and consumer keys.

To view the customer_external_id:
1. Click [Customers] sidebar menu, use search engine if needed.
2. Click [eye] icon on the list
3. Look for [Exernal ID] field.

Generate token using tokenization api. Sample Code below.
Create an IFRAME or an HTML IFrame and supply the required parameter needed for the checkout page.
Please see sample code below and parameter's definition.

Pesaswap Tokenization

Tokenization is part of the checkout process. It is also serve as an identity of a merchant for a secured payment process.

Method: POST

Sandbox: https://devpesaswap.azurewebsites.net/api/generate-checkout-token

Production: https://www.pesaswap.com/api/generate-checkout-token

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

												$url = BASE URL;

												$curl_init();

												curl_setopt($curl, CURLOPT_URL, $url);
												curl_setopt($curl, CURLOPT_HTTPHEADER, array('Content-Type:application/json'));

												$curl_post_data = array(

												'consumer_key' => '',

												'api_key' => ''

												);

												$data_string = json_encode($curl_post_data);

												curl_setopt($curl, CURLOPT_RETURNTRANSFER, true);

												curl_setopt($curl, CURLOPT_POST, true);

												curl_setopt($curl, CURLOPT_POSTFIELDS, $data_string);

												$curl_response = curl_exec($curl);

												$response = json_decode($curl_response,true);

Pesaswap Tokenization Parameter

Description	Value	Mandatory
Consumer Key	Merchant Consumer Key	Yes
API Key	Merchant API Key	Yes

Pesaswap Tokenization Success Response

Description	Value
The ‘token’ will be generated which will be used in one of the checkout page parameters. It will expire in 1 hour prior to the time of creation.	{ "token": "0f3b9af0-219a-11ea-992e-ff8147e8420a", "expiration": "yyyy-mm-dd hh:mm:ss" }

Pesaswap Tokenization Error Response

Description	Value
An error will be raised if tokenization failes.	{ "error": "Invalid Credentials. Please Check your consumer_key and api_key." }

Checkout Page Using an Iframe

The checkout page could be grabbed and used using an iframe in your webapp or mobile page.

Sandbox: https://devpesaswap.azurewebsites.net/three-d-secure/checkout/v2

Production: https://www.pesaswap.com/three-d-secure/checkout/v2

Parameter

Description	Value	Mandatory
token	Generated from api call (tokenization)	Yes
currency	Money currency	Yes
amount	Amount to be processes	Yes
transaction_external_id	Prefer GUID/UUID. Serves as a primary key for transaction and will be used for record integration, from Pesaswap to user’s end.	Yes
customer_external_id	An existing customer’s GUID/UUID saved on Pesaswap endpoint which serves as a primary key.	No - for 3d secured enrolled card Yes - for un-enrolled 3d secured card - required for fraud.net fraud manager.

Success Response

Description	Value
Once payment has been succeeded, you will be redirected to success template.	Payment has been succeeded.

Error Response

Description	Value
You will be redirected to error template if something is not correct.	Sample message: transaction_external_id already exist!, Missing PAN., etc.

Sample Html Code

Html Code
Download sample html iframe code.

Sample Checkout Page Via Iveri Using an Iframe

Checkout page

How to customize your logo?

How to change the checkout page logo into your own logo?
Login as merchant to pesaswap. On sidebar menu, select Checkout Page . Select Upload Logo . Browse your logo and click Save.

Checkout Page With Cybersource

Another secured payment checkout page is via cybersource. Please see details below.

Steps on how to connect and setup the Card Payment Checkout Page With Cybersource

Please login to production site or sandbox site portal as merchant.

To view the merchant_identifier , click the user icon on upper right menu and select API Key
- Note: Merchant needs to submit all the required documents first for KYC purposes before it can access the merchant_identifier.

homePageUrl - Also known as landing or redirection page when you click the "Refresh Page" button after cybersource payment processes has been done. It just redirect to your ideal page.

Create your own checkout page. How to do it? Please download the sample Iframe Code here. Replace the value of merchant_identifier and homePageUrl. You can design your own css for iframe as well.

Sample Checkout Page Via Cybersource Using an Iframe

Sandbox: https://devpesaswap.azurewebsites.net/cybersource/payment-info

Production: https://www.pesaswap.com/checkout/cybersource/payment-info

Parameter

Description	Value	Mandatory
merchant_identifier	Please login to production site or sandbox site portal as merchant. To view the merchant_identifier , click the user icon on upper right menu and select API Key Note: Merchant needs to submit all the required documents first for KYC purposes before it can access the merchant_identifier.	Yes
transaction_external_id	Prefer GUID/UUID. Serves as a primary key for transaction and will be used for record integration, from Pesaswap to user’s end.	Optional
customer_external_id	Must be GUID/UUID. Though it is optional, we strongly suggest to include this on api call for you to monitor the payment from your specific customers.	Optional

Complete Iframe SRC Link

Description	Value
Iframe sample link	{{base_url}}?merchant_identifier=your-cybersource-identifier &&transaction_external_id=your-transaction-external-id &&customer_external_id=your-customer-external-id

How to customize your logo?

How to change the checkout page logo into your own logo?
Login as merchant to pesaswap. On sidebar menu, select Checkout Page . Select Upload Logo . Browse your logo and click Save.

Regular Card Payment API

How to connect Pesaswap Regular Card Payment API?

You needed the Endpoint(Live or Sandbox) API Key and Consumer Key.

Pesaswap offered a REST API for regular card payment(un-enrolled 3d-secure card) with Fraud.Net banking API in the middle as a fraud manager.

Regular Card Payment API Request Parameters

Method: POST

Parameter	Description	Mandatory
consumer_key	This serves as an api username. You can request this key from administrator or please contact us for more details.	Yes
api_key	This serves as an api user password. You can request this key from administrator or please contact us for more details.	Yes
currency	Money currency. IE. KES	Yes
amount	Amount to be paid.	Yes
expiry_date	Card expiration date. format(mmyyyy).	Yes
card_security_code	Cvv or cvc.	Yes
credit_card_number	credit or debit card number.	Yes
customer_external_id	Must be GUID/UUID. API user is required to integrate their customer to pesaswap platform. Customer API docs here.	Yes
transaction_external_id	A GUID / UUID format. This will be used for future queries like knowing what's the actual status of your payment transaction. We have three(3) transaction statuses. Pending, Completed and Failed.	Yes
environment	test or live.	Yes

How to connect into Pesaswap Regular Card Payment API?

You needed the API and Consumer Key.

Sandbox: https://devpesaswap.azurewebsites.net/api/regular/card-payment

Production: https://www.pesaswap.com/api/regular/card-payment

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

											$url = BASE URL;

											$curl_init();

											curl_setopt($curl, CURLOPT_URL, $url);
											curl_setopt($curl, CURLOPT_HTTPHEADER, array('Content-Type:application/json'));




											$curl_post_data = array(

											'consumer_key' => ' ',

											'api_key' => ' ',

											'currency' => 'KES',

											'amount' => ' ',


											'expiry_date' => 'mmyyyy',

											'card_security_code' => ' ',

											'credit_card_number' => ' ',


											'customer_external_id' => ' ',

											'transaction_external_id' => ' ',

											'environment' => ' '
											);



											$data_string = json_encode($curl_post_data);

											curl_setopt($curl, CURLOPT_RETURNTRANSFER, true);

											curl_setopt($curl, CURLOPT_POST, true);

											curl_setopt($curl, CURLOPT_POSTFIELDS, $data_string);

											$curl_response = curl_exec($curl);

											$response = json_decode($curl_response,true);





Card Payment API Response - successful request

Name	Description	Sample Value
success	Successful response.	{ "success": "Payment Successful." }

Card Payment API Error Response

Name	Description	Sample Value
error	An error will be shown if parameter is not correct.	{ "error": "Invalid Credentials. Please Check your consumer_key and api_key." }

Test Cards

Card Number	Card Type	Expiry	CVV	Network
4000000000000002	Visa	01/****	111	Regular
4242424242424242	MasterCard	01/****	111	Regular
5200000000000007	MasterCard	01/****	111	3d Secure
3520000000000922	JCB J/Secure	01/****	111	3d Secure
340000000003961	American Express	01/****	111	3d Secure
3005000000006246	Diners Club	01/****	111	3d Secure
6011000000000004	Discover	01/****	111	3d Secure

3d Secure Test OTP Creds

Credential
test123

Coupons

How to connect Pesaswap Coupon Payment API?

You needed the Endpoint(Live or Sandbox), API Key, Consumer Key.

Pesaswap offered a more secured and hassle free Credit Card payment called the checkout page. The user can just call the checkout page on their template through iframe, supply the required parameters and use it for card payment. It comes with two(2) versions or UI. For detailed infos, please download the checkout page manual.

Coupon Payment Query Request Parameters

Method: POST

Parameter	Description	Mandatory
consumer_key	This serves as an api username. You can request this key from administrator or please contact us for more details.	Yes
api_key	This serves as an api user password. You can request this key from administrator or please contact us for more details.	Yes
identifier	A unique identifier generated from pesaswap end. This will be the basis of which coupon will be used for the payment.	Yes
amount	Coupon amount. Should not be greater than the set amount on pesaswap end.	Yes
customer_external_id	Must be GUID/UUID. Though it is optional, we strongly suggest to include this on api call for you to monitor the payment from your specific customers.	No
transaction_external_id	A GUID / UUID format. This will be used for future queries like knowing what's the actual status of your payment transaction. We have three(3) transaction statuses. Pending, Completed and Failed.	Yes

How to connect into Pesaswap Coupon Payment API?

You needed the API and Consumer Key.

Sandbox: https://devpesaswap.azurewebsites.net/api/coupon/payment

Production: https://www.pesaswap.com/api/coupon/payment

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

											$url = BASE URL;

											$curl_init();

											curl_setopt($curl, CURLOPT_URL, $url);
											curl_setopt($curl, CURLOPT_HTTPHEADER, array('Content-Type:application/json'));




											$curl_post_data = array(

											'consumer_key' => '',

											'api_key' => '',

											'identifier' => '',

											'amount' => '',

											'customer_external_id' => '',

											'transaction_external_id' => ''
											);



											$data_string = json_encode($curl_post_data);

											curl_setopt($curl, CURLOPT_RETURNTRANSFER, true);

											curl_setopt($curl, CURLOPT_POST, true);

											curl_setopt($curl, CURLOPT_POSTFIELDS, $data_string);

											$curl_response = curl_exec($curl);

											$response = json_decode($curl_response,true);





Coupon Payment Request Response - successful request

Name	Description	Sample Value
success	Successful response.	{ "success": "Coupon Payment Successful." }

Coupon Payment Filter Error Response

Name	Description	Sample Value
error	An error will be shown if parameter is not correct.	{ "error": "Invalid Credentials. Please Check your consumer_key and api_key." }
error	An error will be shown if Coupon does not exist.	{ "error": "Coupon does not exist, duration issue or in used." }
error	An error will be shown if amount is invalid.	{ "error": "Request Amount:1500 is Greater than coupon amount:1000" }

Coupon Query Request Parameters

Method: GET

Parameter	Description	Mandatory
consumer_key	This serves as an api username. You can request this key from administrator or please contact us for more details.	Yes
api_key	This serves as an api user password. You can request this key from administrator or please contact us for more details.	Yes
status	If the status is provided, it will implement status filter. Note(1 - Active, 2 - Inactive, 3 -Used).	No
identifier	If the identifier is provided, it will implement identifier filter.	No

How to connect into Pesaswap Coupon Query API?

You needed the API and Consumer Key.

Sandbox: https://devpesaswap.azurewebsites.net/api/coupon/query

Production: https://www.pesaswap.com/api/coupon/query

1
2
3
4
5

6
7
8
9
10
11
12
13
14
15

									$url = BASE URL;

									$dataArray = array('consumer_key'=>'',

									'api_key'=>'',

									'status'=>'1'

									'identifier'=>'Nbg92'

									);

									$ch = curl_init();

									$data = http_build_query($dataArray);

									$getUrl = $url."?".$data;

									curl_setopt($ch, CURLOPT_SSL_VERIFYPEER, FALSE);

									curl_setopt($ch, CURLOPT_FOLLOWLOCATION, TRUE);

									curl_setopt($ch, CURLOPT_RETURNTRANSFER, TRUE);

									curl_setopt($ch, CURLOPT_URL, $getUrl);

									curl_setopt($ch, CURLOPT_TIMEOUT, 80);

									$response = curl_exec($ch);

Coupon Query Filter Request Response - successful request

Name	Description	Sample Value
	Return the list of array/json objects	[{ "merchant": "Top Merchant", "description": "Coupon one", "amount": "100", "period_start_date": "2020-01-27", "period_end_date": "2020-01-31", "guid": "42EA3140-40EB-11EA-8AC4-77A894670934", "identifier": null, "status": "Used" }]

Coupon Query Filter Error Response

Name	Description	Sample Value
error	An error will be shown if parameter is not correct.	{ "error": "Invalid Credentials. Please Check your consumer_key and api_key." }

Interswitch Balance Inquiry Request Parameters

Method: GET

Parameter	Description	Mandatory
consumer_key	This serves as an api username. You can request this key from administrator or please contact us for more details.	Yes
api_key	This serves as an api user password. You can request this key from administrator or please contact us for more details.	Yes
wallet_account	Interswitch wallet account	Yes

How to connect into Pesaswap-Interswitch Balance Inquiry API?

You needed the API and Consumer Key.

Sandbox: https://devpesaswap.azurewebsites.net/api/interswitch/balance-inquiry

Production: https://www.pesaswap.com/api/interswitch/balance-inquiry

1
2
3
4
5

6
7
8
9
10
11
12
13
14
15

									$url = BASE URL;


									$dataArray = array('consumer_key'=>'',

									'api_key'=>'',

									'wallet_account'=>''

									);



									$ch = curl_init();

									$data = http_build_query($dataArray);

									$getUrl = $url."?".$data;

									curl_setopt($ch, CURLOPT_SSL_VERIFYPEER, FALSE);

									curl_setopt($ch, CURLOPT_FOLLOWLOCATION, TRUE);

									curl_setopt($ch, CURLOPT_RETURNTRANSFER, TRUE);

									curl_setopt($ch, CURLOPT_URL, $getUrl);

									curl_setopt($ch, CURLOPT_TIMEOUT, 80);

									$response = curl_exec($ch);



Balance Inquiry Request Response - successful request

Name	Description	Sample Value
	Return the list of array/json objects	{ "responseCode": "00", "responseMessage": "Approved or completed successfully", "availableBalance": 4988208.76, "ledgerBalance": 4988208.76 }

Balance Inquiry Error Response

Name	Description	Sample Value
error	An error will be shown if parameter is not correct.	{ "error": "Invalid Credentials. Please Check your consumer_key and api_key." }

Transaction Inquiry Request Parameters

Method: GET

Parameter	Description	Mandatory
consumer_key	This serves as an api username. You can request this key from administrator or please contact us for more details.	Yes
api_key	This serves as an api user password. You can request this key from administrator or please contact us for more details.	Yes
wallet_account	Interswitch wallet account	Yes

How to connect into Pesaswap-Interswitch transaction reference Inquiry API?

You needed the API and Consumer Key.

Sandbox: https://devpesaswap.azurewebsites.net/api/interswitch/transaction-inquiry

Production: https://www.pesaswap.com/api/interswitch/transaction-inquiry

1
2
3
4
5

6
7
8
9
10
11
12
13
14
15

									$url = BASE URL;


									$dataArray = array('consumer_key'=>'',

									'api_key'=>'',

									'transaction_reference'=>''

									);



									$ch = curl_init();

									$data = http_build_query($dataArray);

									$getUrl = $url."?".$data;

									curl_setopt($ch, CURLOPT_SSL_VERIFYPEER, FALSE);

									curl_setopt($ch, CURLOPT_FOLLOWLOCATION, TRUE);

									curl_setopt($ch, CURLOPT_RETURNTRANSFER, TRUE);

									curl_setopt($ch, CURLOPT_URL, $getUrl);

									curl_setopt($ch, CURLOPT_TIMEOUT, 80);

									$response = curl_exec($ch);



Transaction Inquiry Request Response - successful request

Name	Description	Sample Value
	Return the list of array/json objects	{ "responseCode": "00", "responseMessage": "Successful", "transaction": { "transactionType": "9005", "provider": "MPESA PAYBILL", "walletAccount": "8880000000000073", "beneficiaryAccount": "0722000000", "beneficiaryCard": "0722000000", "traceNumber": "243014", "rrn": "110457306441", "settleCurrency": "404", "settleAmount": "200.00", "providerID": "702", "beneficiaryDetails": "0722000000 - JOHN DOE", "responseCode": "00", "responseMessage": "Approved or completed successfully", "senderName": "Test Institution", "amount": "200.00", "reference": "142607387541012", "fee": "0.00", "transactionDate": "2021-04-14 18:48:26.21", "narration": "Payment", "providerReference": "MCQ4821JJJ", "issuerName": "SMART AC", "currency": "404", "transactionState": "1" } }

Transaction Inquiry Error Response

Name	Description	Sample Value
error	An error will be shown if parameter is not correct.	{ "error": "Invalid Credentials. Please Check your consumer_key and api_key." }
error	An error will be shown if parameter is not correct.	{ "responseCode": "25", "responseMessage": "Transaction(s) not found" }

Wallet details Request Parameters

Method: GET

Parameter	Description	Mandatory
consumer_key	This serves as an api username. You can request this key from administrator or please contact us for more details.	Yes
api_key	This serves as an api user password. You can request this key from administrator or please contact us for more details.	Yes
wallet_account	Interswitch wallet account	Yes

How to connect into Pesaswap-Interswitch wallet details API?

You needed the API and Consumer Key.

Sandbox: https://devpesaswap.azurewebsites.net/api/interswitch/wallet-details

Production: https://www.pesaswap.com/api/interswitch/wallet-details

1
2
3
4
5

6
7
8
9
10
11
12
13
14
15

									$url = BASE URL;


									$dataArray = array('consumer_key'=>'',

									'api_key'=>'',

									'wallet_account'=>''

									);



									$ch = curl_init();

									$data = http_build_query($dataArray);

									$getUrl = $url."?".$data;

									curl_setopt($ch, CURLOPT_SSL_VERIFYPEER, FALSE);

									curl_setopt($ch, CURLOPT_FOLLOWLOCATION, TRUE);

									curl_setopt($ch, CURLOPT_RETURNTRANSFER, TRUE);

									curl_setopt($ch, CURLOPT_URL, $getUrl);

									curl_setopt($ch, CURLOPT_TIMEOUT, 80);

									$response = curl_exec($ch);



Wallet Details Request Response - successful request

Name	Description	Sample Value
	Return the list of array/json objects	{ "responseCode": "00", "responseMessage": "Success", "wallet": { "product": "SMART_PT_CLS_PR", "customerNumber": "100000000136", "lastName": "SMART KADI TEST", "mobile": "254703053224", "email": "support.ke@interswitchgroup.com", "currency": "404", "walletAccount": "8880000000000073", "walletCard": "888000*0073", "walletCardSerno": 1410117 } }

Wallet details Error Response

Name	Description	Sample Value
error	An error will be shown if parameter is not correct.	{ "error": "Invalid Credentials. Please Check your consumer_key and api_key." }
error	An error will be shown if parameter is not correct.	{ "responseCode": "1", "responseMessage": "Entity not found" }

Wallet transaction Request Parameters

Method: POST

Parameter	Description	Mandatory
consumer_key	This serves as an api username. You can request this key from administrator or please contact us for more details.	Yes
api_key	This serves as an api user password. You can request this key from administrator or please contact us for more details.	Yes
wallet_account	Interswitch wallet account	Yes
beneficiary_account	Interswitch beneficiary account	Yes
provider	Interswitch provider's list	Yes
sender_name	Sender's name	Yes
amount	Amount to process	Yes
narration	A.K.A remarks	Yes

How to connect into Pesaswap-Interswitch wallet transaction API?

You needed the API and Consumer Key.

Sandbox: https://devpesaswap.azurewebsites.net/api/interswitch/wallet-transaction

Production: https://www.pesaswap.com/api/interswitch/wallet-transaction

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22

									$url = BASE URL;

									$curl_init();

									curl_setopt($curl, CURLOPT_URL, $url);
									curl_setopt($curl, CURLOPT_HTTPHEADER, array('Content-Type:application/json'));




									$curl_post_data = array(

									'consumer_key' => '',

									'api_key' => '',

									'wallet_account' => '',

									'sender_name' => '',

									'beneficiary_account' => '',

									'provider' => '',

									'amount' => '',

									'narration' => ''

									);



									$data_string = json_encode($curl_post_data);

									curl_setopt($curl, CURLOPT_RETURNTRANSFER, true);

									curl_setopt($curl, CURLOPT_POST, true);

									curl_setopt($curl, CURLOPT_POSTFIELDS, $data_string);

									$curl_response = curl_exec($curl);

									$response = json_decode($curl_response,true);





Wallet transaction Request Response - successful request

Name	Description	Sample Value
	Return the list of array/json objects	{ "responseCode": "00", "responseMessage": "Approved or completed successfully", "rrn": "111058697832", "beneficiaryDetails": "0722000000 - JOHN DOE", "reference": "162076545386384", "fee": 0, "availableBalance": 4988122.52, "ledgerBalance": 4988122.52, "providerReference": "MCQ1128GSM" }

Wallet transaction Error Response

Name	Description	Sample Value
error	An error will be shown if parameter is not correct.	{ "error": "Invalid Credentials. Please Check your consumer_key and api_key." }

Wallet provider Request Parameters

Method: GET

Parameter	Description	Mandatory
consumer_key	This serves as an api username. You can request this key from administrator or please contact us for more details.	Yes
api_key	This serves as an api user password. You can request this key from administrator or please contact us for more details.	Yes

How to connect into Pesaswap-Interswitch wallet provider API?

You needed the API and Consumer Key.

Sandbox: https://devpesaswap.azurewebsites.net/api/interswitch/get-wallet-provider

Production: https://www.pesaswap.com/api/interswitch/get-wallet-provider

1
2
3
4
5

6
7
8
9
10
11
12
13
14

								$url = BASE URL;

								$dataArray = array('consumer_key'=>'',

								'api_key'=>''

								);

								$ch = curl_init();

								$data = http_build_query($dataArray);

								$getUrl = $url."?".$data;

								curl_setopt($ch, CURLOPT_SSL_VERIFYPEER, FALSE);

								curl_setopt($ch, CURLOPT_FOLLOWLOCATION, TRUE);

								curl_setopt($ch, CURLOPT_RETURNTRANSFER, TRUE);

								curl_setopt($ch, CURLOPT_URL, $getUrl);

								curl_setopt($ch, CURLOPT_TIMEOUT, 80);

								$response = curl_exec($ch);

Wallet provider Request Response - successful request

Name	Description	Sample Value
	Return the list of array/json objects	{ "responseCode": "00", "responseMessage": "Successful", "providers": [ { "transactionType": "9002", "providerID": "901", "providerName": "KCB BANK", "category": "BANK" }, { "transactionType": "9002", "providerID": "902", "providerName": "STANDARD CHARTERED BANK", "category": "BANK" }, { "transactionType": "9002", "providerID": "903", "providerName": "BARCLAYS BANK", "category": "BANK" }, { "transactionType": "9002", "providerID": "905", "providerName": "BANK OF INDIA", "category": "BANK" }, { "transactionType": "9002", "providerID": "906", "providerName": "BANK OF BARODA", "category": "BANK" }, { "transactionType": "9002", "providerID": "907", "providerName": "NCBA", "category": "BANK" }, { "transactionType": "9002", "providerID": "910", "providerName": "PRIME BANK", "category": "BANK" }, { "transactionType": "9002", "providerID": "911", "providerName": "COOP BANK", "category": "BANK" }, { "transactionType": "9002", "providerID": "912", "providerName": "NATIONAL BANK", "category": "BANK" }, { "transactionType": "9002", "providerID": "914", "providerName": "ORIENTAL BANK", "category": "BANK" }, { "transactionType": "9002", "providerID": "916", "providerName": "CITI BANK", "category": "BANK" }, { "transactionType": "9002", "providerID": "917", "providerName": "HABIB BANK AG ZURICH", "category": "BANK" }, { "transactionType": "9002", "providerID": "918", "providerName": "MEB", "category": "BANK" }, { "transactionType": "9002", "providerID": "919", "providerName": "BANK OF AFRICA", "category": "BANK" }, { "transactionType": "9002", "providerID": "923", "providerName": "CONSOLIDATED BANK", "category": "BANK" }, { "transactionType": "9002", "providerID": "925", "providerName": "CREDIT BANK", "category": "BANK" }, { "transactionType": "9002", "providerID": "926", "providerName": "TRANSNATIONAL BANK", "category": "BANK" }, { "transactionType": "9002", "providerID": "930", "providerName": "CHASE BANK", "category": "BANK" }, { "transactionType": "9002", "providerID": "931", "providerName": "CFC STANBIC BANK", "category": "BANK" }, { "transactionType": "9002", "providerID": "935", "providerName": "ABC BANK", "category": "BANK" }, { "transactionType": "9002", "providerID": "942", "providerName": "GIRO BANK", "category": "BANK" }, { "transactionType": "9002", "providerID": "943", "providerName": "ECO BANK", "category": "BANK" }, { "transactionType": "9002", "providerID": "949", "providerName": "EQUATORIAL COMMERCIAL BANK", "category": "BANK" }, { "transactionType": "9002", "providerID": "950", "providerName": "PARAMOUNT BANK", "category": "BANK" }, { "transactionType": "9002", "providerID": "953", "providerName": "GTB BANK", "category": "BANK" }, { "transactionType": "9002", "providerID": "954", "providerName": "VICTORIA BANK", "category": "BANK" }, { "transactionType": "9002", "providerID": "959", "providerName": "DEVELOPMENT BANK", "category": "BANK" }, { "transactionType": "9002", "providerID": "960", "providerName": "FIDELITY BANK", "category": "BANK" }, { "transactionType": "9002", "providerID": "961", "providerName": "HOUSING FINANCE", "category": "BANK" }, { "transactionType": "9002", "providerID": "963", "providerName": "DTB BANK", "category": "BANK" }, { "transactionType": "9002", "providerID": "966", "providerName": "SIDIAN BANK", "category": "BANK" }, { "transactionType": "9002", "providerID": "968", "providerName": "EQUITY BANK", "category": "BANK" }, { "transactionType": "9002", "providerID": "970", "providerName": "FAMILY BANK", "category": "BANK" }, { "transactionType": "9002", "providerID": "972", "providerName": "GULF AFRICA BANK", "category": "BANK" }, { "transactionType": "9002", "providerID": "976", "providerName": "UBA BANK", "category": "BANK" }, { "transactionType": "9002", "providerID": "998", "providerName": "KWFT BANK", "category": "BANK" }, { "transactionType": "9002", "providerID": "999", "providerName": "POST BANK", "category": "BANK" }, { "transactionType": "9004", "providerID": "701", "providerName": "MPESA WALLET", "category": "MMO" }, { "transactionType": "9005", "providerID": "702", "providerName": "MPESA PAYBILL", "category": "MMO" }, { "transactionType": "9006", "providerID": "703", "providerName": "MPESA TILL", "category": "MMO" }, { "transactionType": "9004", "providerID": "700", "providerName": "TKASH WALLET", "category": "MMO" }, { "transactionType": "9004", "providerID": "704", "providerName": "AIRTEL WALLET", "category": "MMO" }, { "transactionType": "9000", "providerID": "888005", "providerName": "ISW WALLET", "category": "ISW" }, { "transactionType": "9002", "providerID": "975", "providerName": "DIB BANK", "category": "BANK" } ] }

Wallet provider Error Response

Name	Description	Sample Value
error	An error will be shown if parameter is not correct.	{ "error": "Invalid Credentials. Please Check your consumer_key and api_key." }

Callback

Pesaswap could send to you the transaction records you needed the moment there will be changes of the transaction status from our end. We can relay it to you using your callback URL.

Callback Setup

For the merchant to receive the updated data from the gateway, they need to establish the requirement below.

Step 1: Your callback URL . Ideally a public page on your webApp where the gateway can throw the updated records if there is significant changes of the transaction status. IE. from Pending to Completed, or Failed.

Step 2: Please inform the Pesaswap Admin so that your callback URL will be added on the platform.

Step 3: How to get the record? The gateway will send to you this format. [your-callback-url]?data={json-string-formatted-data} So all you to do is to grab the values of [data] variable/parameter. Typical grabbing of data in a GET request method with the parameter name of [data].

Step 4: Decode the data from json-string-format to your ideal data format.
Step 5: Expected data format to receive below.

Name

Sample Value

data

{\"id\":636,\"business_name\":\"ABC Merchant\",\"transaction_external_id\":\"98470880-145c-11eb-993e-e9178dbfc53a\",\"transaction_id\":null,\"amount\":\"1\",\"status\":\"Failed\",\"mpesa_result_desc\":null,\"processor\":\"I&M Bank\",\"method\":\"CardPayment\",\"command_id\":null,\"customer\":\"Name Lastname\",\"send_to_callback_url\":\"https:\\/\\/devpesaswap.azurewebsites.net\\/mysite-callback.php\"}

Callback With Basic Header Auth - Expected Data to Receive

This will require consumer_key and api_key (base64 encoded) for the payload.

Method: Get

Header

Description	Value
Content-Type	application/json
Authorization	"Basic " + "base64_encode(consumer_key:api_key)"

Details

Description

Value

data

Callback With Extended Header Auth - Expected Data to Receive

This will require consumer_key, api_key, external_id and amount (base64 encoded) for the payload. Note: amount format should be two decimal places IE. 1234.00 without commas.

Method: Get

Header

Description	Value
Content-Type	application/json
Authorization	"Basic " + "base64_encode(consumer_key:api_key:external_id:amount)"

Details

Description

Value

data

Card Limit

A setting to determine if a merchant is allowed to use regular card payment api.

Merchant	Description	Value	Tags
Assign specific Merchant	regular_card_payment_limit_amount	set limit amount	iveri-regular-card-payment-limit-amount

Checkout Page

Checkout Page redirection url success page and error page can be customized by providing the custom url.

Merchant	Description	Value	Tags
Merchant required	success_page	Merchant success page or site	checkout-page
Merchant required	error_page	Merchant error page or site	checkout-page

Coop Bank

Settings for coop bank.

Merchant	Description	Value	Tags
Null(Leave it blank)	token_endpoint	https://openapi-sit.co-opbank.co.ke/token	coop-bank
Null(Leave it blank)	consumer_key	valid consumer_key	coop-bank
Null(Leave it blank)	consumer_secret	valid consumer_secret	coop-bank
Null(Leave it blank)	FundsTransfer_endpoint	https://openapi-sit.co-opbank.co.ke/FundsTransfer/External/A2A/PesaLink/1.0.0et	coop-bank
Null(Leave it blank)	status_query_endpoint	https://openapi-sit.co-opbank.co.ke/Enquiry/TransactionStatus/2.0.0	coop-bank
Null(Leave it blank)	callback_url	https://www.pesaswap.com/fundstransfer.php	coop-bank
Null(Leave it blank)	send_to_mpesa_endpoint	https://openapi-sit.co-opbank.co.ke/FundsTransfer/External/A2M/Mpesa/1.0.0	coop-bank
Null(Leave it blank)	account_balance_query_endpoint	https://openapi-sit.co-opbank.co.ke/Enquiry/AccountBalance/1.0.0	coop-bank

Fraud.Net

Fraud.Net is the 3rd party fraud prevention api tool being used in card payment to prevent fraudulent transactions.

Merchant	Description	Value	Tags
Null(Leave it blank)	fraud_net_ecommerce_order_endpoint	https://8007.api-production.fraud.net/v2/risk/order/ecommerce	fraud-net
Null(Leave it blank)	fraud_net_access_key	access key	fraud-net
Null(Leave it blank)	fraud_net_secret_key	secret key	fraud-net
Null(Leave it blank)	fraud_net_banking_endpoint	https://8006.api-production.fraud.net/v2/risk/transaction/bank	fraud-net
Null(Leave it blank)	fraud_net_access_key_banking	banking access key	fraud-net
Null(Leave it blank)	fraud_net_secret_key_banking	banking secret key	fraud-net

Fraud.Net Default Customer

Fraud.Net required customer's info. We can set the customer's default for the card payment api to use, NOTE: This is only for checkout page v2, currently the implementation is suspended.

Merchant	Description	Value	Tags
Assign specific Merchant	fraud_net_default_customer_external_id	fraud.net customer external id	fraud_net_default_customer_external_id

Flag SMS

Flag SMS is the SMS service provider. Currently can only cater Kenyan numbers.

Merchant	Description	Value	Tags
Null(Leave it blank)	flag_sms_api_passwd	api password	flag-sms
Null(Leave it blank)	flag_sms_api_source	source name	flag-sms
Null(Leave it blank)	flag_sms_api_user	api user	flag-sms
Null(Leave it blank)	flag_sms_api_endpoint	https://sms.flag42.com/api/index.php	flag-sms
Null(Leave it blank)	flag_sms_api_send_sms	true or false (if true, sms will be sent, else, sms will NOT be sent)	flag-sms

Iveri Live

A setting for iveri live payment.

Merchant	Description	Value	Tags
Assign specific Merchant	Version	2.0	iveri
Assign specific Merchant	CertificateID	Valid CertificateID	iveri
Assign specific Merchant	ProductType	Enterprise	iveri
Assign specific Merchant	ProductVersion	mPress	iveri
Assign specific Merchant	Direction	Request	iveri
Assign specific Merchant	ApplicationID	Valid ApplicationID	iveri
Assign specific Merchant	Command	Debit	iveri
Assign specific Merchant	transaction_endpoint	https://portal.host.iveri.com/api/transactions	iveri
Assign specific Merchant	TermUrl	https://www.pesaswap.com/virtual-terminal/card-payment/three-d-secure	iveri
Assign specific Merchant	Mode	Live	iveri

Iveri Test

A setting for iveri sandbox or test environment.

Merchant	Description	Value	Tags
Assign specific Merchant	Version	2.0	iveri-test
Assign specific Merchant	CertificateID	Valid Sandbox CertificateID	iveri-test
Assign specific Merchant	ProductType	Enterprise	iveri-test
Assign specific Merchant	ProductVersion	mPress	iveri-test
Assign specific Merchant	Direction	Request	iveri-test
Assign specific Merchant	ApplicationID	Valid Sandbox ApplicationID	iveri-test
Assign specific Merchant	Command	Debit	iveri-test
Assign specific Merchant	transaction_endpoint	https://portal.host.iveri.com/api/transactions	iveri-test
Assign specific Merchant	TermUrl	https://devpesaswap.azurewebsites.net/virtual-terminal/card-payment/three-d-secure	iveri-test
Assign specific Merchant	Mode	Test	iveri-test

Iveri Query

A setting for iveri query.

Merchant	Description	Value	Tags
Assign specific Merchant	ViewTransactionRequestEndpoint	https://portal.host.iveri.com/api/transactions/	iveri-query
Assign specific Merchant	Usergroup	Valid Usergroup	iveri-query
Assign specific Merchant	UserName	Valid user name	iveri-query
Assign specific Merchant	ViewTransactionPassword	Valid password	iveri-query
Assign specific Merchant	azurefunctionendpoint	https://iveri-tokenization.azurewebsites.net/api/iveri-token-function?code=e7rOMgmhFPLqPBVfw3u/Bajw1sWtp77N0LXm5h4OuNqrhOHqfvO4xw==	iveri-query

Loyalty Card

Amount settings for loyalty card.

Merchant	Description	Value	Tags
Assign specific Merchant	loyalty_card_base_point	Assign an Amount	loyalty_card

Merchant Loan

Note: Applicable for all merchant but the amount of approval can be modified.

Merchant	Description	Value	Tags
Null(Leave it blank)	loan_basis_amount	Set principal sales amount. IE. if set in 100. It means, The merchant can start processing their loan if the sales reaches to 100.	merchant_loan
Null(Leave it blank)	loan_amount_rate	Set rate. Total percentage of loanable amount. IE. 75. It means, loanable amount is 75(base on 100 principal sales amount).	merchant_loan
Null(Leave it blank)	loan_amount_interest_rate	Set interest rate. Simply the interest rate of the loanable amount.	merchant_loan

Payout Notification

Payout email notification.

Merchant	Description	Value	Tags
Null(Leave it blank)	payout_notification	Set the date to start notifying via email. IE. 2022-07-01 or in (yyyy-mm-dd) format	payout-notification

Regular Card API Privilege

A setting to determine if a merchant is allowed to use regular card payment api.

Merchant	Description	Value	Tags
Assign specific Merchant	allow_regular_card_payment_api_call	true or false (true if allowed, false if not)	regular-card-payment

Sendgrid

Sendgrid email API using dynamic template.

Merchant	Description	Value	Tags
Null(Leave it blank)	mail_send_endpoint	https://api.sendgrid.com/v3/mail/send	sendgrid
Null(Leave it blank)	api_key	Sendgrid api_key	sendgrid
Null(Leave it blank)	from_email	Catch all email	sendgrid
Null(Leave it blank)	access_code_template_id	Access code valid template id	sendgrid
Null(Leave it blank)	reset_password_template_id	Reset password valid template id	sendgrid
Null(Leave it blank)	public_registration_template_id	Public registration valid template id	sendgrid
Null(Leave it blank)	contact_us_template_id	Contact us valid template id	sendgrid
Null(Leave it blank)	payment_request_template_id	Payment request valid template id	sendgrid
Null(Leave it blank)	payout_email_template_id	Payout request valid template id	sendgrid
Null(Leave it blank)	payout_confirmation_template_id	Payout confirmation valid template id	sendgrid
Null(Leave it blank)	withdrawal_request_template_id	Withdrawal request valid template id	sendgrid
Null(Leave it blank)	credit_offer_template_id	Credit offer valid template id	sendgrid
Null(Leave it blank)	member_access_code_template_id	Member access code valid template id	sendgrid
Null(Leave it blank)	payment_code_template_id	Pament code valid template id	sendgrid
Null(Leave it blank)	account_activation_template_id	Account activation valid template id	sendgrid

Service bus

Microservice who is responsible of processing api responses in the background.

Merchant	Description	Value	Tags
Null(Leave it blank)	service-bus-lipa	Sevicebus-endpoint/publish/lipa	service-bus
Null(Leave it blank)	service-bus-c2b	Sevicebus-endpoint/publish/c2b	service-bus
Null(Leave it blank)	service-bus-b2c	Sevicebus-endpoint/publish/b2c	service-bus
Null(Leave it blank)	service-bus-producer-endpoint	Sevicebus-endpoint/publish/producer	service-bus

Session Timeout In Minutes

A setting to determine if how much time the gateway will auto-logout if the system is in idle.

Merchant	Description	Value	Tags
Null(Leave it blank)	session-timeout-in-minutes	Set number of minutes	session-timeout-in-minutes

Webhook

Callback sender setup.

Merchant	Description	Value	Tags
Assign specific Merchant	callback_url	your-callback-url*mm/dd/yyyy	webhook-callback
Assign specific Merchant	header_auth	true (if implement digital signature) or false(if no header auth)	webhook-callback
If header_auth equal to 'true', add the value below.
Assign specific Merchant	consumer_key	Consumer key	webhook-callback
Assign specific Merchant	api_key	Api key	webhook-callback

Analytics Migrate Transactions

How to connect Pesaswap Analytics Migrate Transactions API?

You needed the Endpoint(Live or Sandbox), API Key, Consumer Key.

Analytics table is the cloned version of transactions table. To avoid traffic in transactions table, a microservice will migrate all the records to analytics table for reporting purposes.

Analytics Migrate Transactions Request Parameters

Method: GET

Parameter	Description	Mandatory
consumer_key	This serves as an api username. Note: Only master-admin keys will work.	Yes
api_key	This serves as an api user password. Note: Only master-admin keys will work.	Yes

How to connect into Pesaswap Analytics Migrate Transactions API?

You needed the API and Consumer Key.

Sandbox: https://devpesaswap.azurewebsites.net/api/analytics/migrate-transactions

Production: https://www.pesaswap.com/api/analytics/migrate-transactions

1
2
3
4
5
6
7
8
9
10
11

											$url = BASE URL;

											$dataArray = array('consumer_key'=>'your-key','api_key'=>'your-key');

											$curl = curl_init();

											$data = http_build_query($dataArray);

											$getUrl = $url."?".$data;

											curl_setopt($curl, CURLOPT_SSL_VERIFYPEER, FALSE);

											curl_setopt($curl, CURLOPT_FOLLOWLOCATION, TRUE);

											curl_setopt($curl, CURLOPT_RETURNTRANSFER, TRUE);

											curl_setopt($curl, CURLOPT_URL, $getUrl);

											curl_setopt($curl, CURLOPT_TIMEOUT, 80);

											$curl_response = curl_exec($curl);



Analytics Migrate Transactions Request Response - successful request

Sample Value
data inserted

Analytics Migrate Transactions Error Response

Name	Description	Sample Value
error	An error will be shown if parameter is not correct.	{ "error": "Invalid Credentials. Please Check your consumer_key and api_key." }

Mpesa Customer Mapping

How to connect Pesaswap Mpesa Customer Mapping API?

You needed the Endpoint(Live or Sandbox), API Key, Consumer Key.

Mpesa Customer Mapping is the process of mapping out mpesa customer versus Pesaswap recorded customer. If the mpesa customer exist in Pesaswap end, it will map the existing transactions pointing to that specific customer base on their primary infos like phone.

Mpesa Customer Mapping Request Parameters

Method: GET

Parameter	Description	Mandatory
consumer_key	This serves as an api username. Note: Only master-admin keys will work.	Yes
api_key	This serves as an api user password. Note: Only master-admin keys will work.	Yes

How to connect into Pesaswap Mpesa Customer Mapping API?

You needed the API and Consumer Key.

Sandbox: https://devpesaswap.azurewebsites.net/api/map-customer

Production: https://www.pesaswap.com/api/map-customer

1
2
3
4
5
6
7
8
9
10
11

											$url = BASE URL;

											$dataArray = array('consumer_key'=>'your-key','api_key'=>'your-key');

											$curl = curl_init();

											$data = http_build_query($dataArray);

											$getUrl = $url."?".$data;

											curl_setopt($curl, CURLOPT_SSL_VERIFYPEER, FALSE);

											curl_setopt($curl, CURLOPT_FOLLOWLOCATION, TRUE);

											curl_setopt($curl, CURLOPT_RETURNTRANSFER, TRUE);

											curl_setopt($curl, CURLOPT_URL, $getUrl);

											curl_setopt($curl, CURLOPT_TIMEOUT, 80);

											$curl_response = curl_exec($curl);



Mpesa Customer Mapping Request Response - successful request

Sample Value
Transaction Customer Mapping Done.

Mpesa Customer Mapping Error Response

Name	Description	Sample Value
error	An error will be shown if parameter is not correct.	{ "error": "Invalid Credentials. Please Check your consumer_key and api_key." }

Integrate Mpesa Lipa and C2B Customer

How to connect Pesaswap Integrate Mpesa Customer API?

You needed the Endpoint(Live or Sandbox), API Key, Consumer Key.

Integrate Mpesa Customer API is responsible for downloading specifically for lipa and c2b mpesa transactions customers if not exist in Pesaswap endpoint.

Integrate Mpesa Customer for Lipa and C2B Request Parameters

Method: GET

Parameter	Description	Mandatory
consumer_key	This serves as an api username. Note: Only master-admin keys will work.	Yes
api_key	This serves as an api user password. Note: Only master-admin keys will work.	Yes

How to connect into Pesaswap Integrate Mpesa Customer for Lipa and C2B API?

You needed the API and Consumer Key.

Sandbox: https://devpesaswap.azurewebsites.net/api/dashboard/mpesa/customer/integrate

Production: https://www.pesaswap.com/api/dashboard/mpesa/customer/integrate

1
2
3
4
5
6
7
8
9
10
11

											$url = BASE URL;

											$dataArray = array('consumer_key'=>'your-key','api_key'=>'your-key');

											$curl = curl_init();

											$data = http_build_query($dataArray);

											$getUrl = $url."?".$data;

											curl_setopt($curl, CURLOPT_SSL_VERIFYPEER, FALSE);

											curl_setopt($curl, CURLOPT_FOLLOWLOCATION, TRUE);

											curl_setopt($curl, CURLOPT_RETURNTRANSFER, TRUE);

											curl_setopt($curl, CURLOPT_URL, $getUrl);

											curl_setopt($curl, CURLOPT_TIMEOUT, 80);

											$curl_response = curl_exec($curl);



Integrate Mpesa Customer for Lipa and C2B Request Response - successful request

Sample Value
Mpesa customer integrated Done - c2b and till code lipa.

Integrate Mpesa Customer for Lipa and C2B Error Response

Name	Description	Sample Value
error	An error will be shown if parameter is not correct.	{ "error": "Invalid Credentials. Please Check your consumer_key and api_key." }

Integrate Mpesa B2C and Reversal Customer

How to connect Pesaswap Integrate Mpesa Customer API?

You needed the Endpoint(Live or Sandbox), API Key, Consumer Key.

Integrate Mpesa Customer API is responsible for downloading specifically b2c and reversal mpesa transactions customers if not exist in Pesaswap endpoint.

Integrate Mpesa Customer for B2C and Reversal Request Parameters

Method: GET

Parameter	Description	Mandatory
consumer_key	This serves as an api username. Note: Only master-admin keys will work.	Yes
api_key	This serves as an api user password. Note: Only master-admin keys will work.	Yes

How to connect into Pesaswap Integrate Mpesa Customer for B2C and Reversal API?

You needed the API and Consumer Key.

Sandbox: https://devpesaswap.azurewebsites.net/api/dashboard/mpesa/customer/integrate-b2c-reversal

Production: https://www.pesaswap.com/api/dashboard/mpesa/customer/integrate-b2c-reversal

1
2
3
4
5
6
7
8
9
10
11

											$url = BASE URL;

											$dataArray = array('consumer_key'=>'your-key','api_key'=>'your-key');

											$curl = curl_init();

											$data = http_build_query($dataArray);

											$getUrl = $url."?".$data;

											curl_setopt($curl, CURLOPT_SSL_VERIFYPEER, FALSE);

											curl_setopt($curl, CURLOPT_FOLLOWLOCATION, TRUE);

											curl_setopt($curl, CURLOPT_RETURNTRANSFER, TRUE);

											curl_setopt($curl, CURLOPT_URL, $getUrl);

											curl_setopt($curl, CURLOPT_TIMEOUT, 80);

											$curl_response = curl_exec($curl);



Integrate Mpesa Customer for B2C and Reversal Response - successful request

Sample Value
Mpesa customer integrated Done - execute_update_mpesa_customer_reversal_b2c.

Integrate Mpesa Customer for B2C and Reversal Error Response

Name	Description	Sample Value
error	An error will be shown if parameter is not correct.	{ "error": "Invalid Credentials. Please Check your consumer_key and api_key." }

Integrate Mpesa Transaction

How to connect Pesaswap Integrate Mpesa Transaction API?

You needed the Endpoint(Live or Sandbox), API Key, Consumer Key.

Integrate Mpesa Transaction API is responsible for downloading mpesa payments transactions if not done in Pesaswap endpoint. IE. Manual C2B payment which is done on mpesa endpoint.

Integrate Mpesa Transaction Request Parameters

Method: GET

Parameter	Description	Mandatory
consumer_key	This serves as an api username. Note: Only master-admin keys will work.	Yes
api_key	This serves as an api user password. Note: Only master-admin keys will work.	Yes

How to connect into Pesaswap Integrate Mpesa Transaction API?

You needed the API and Consumer Key.

Sandbox: https://devpesaswap.azurewebsites.net/api/integrate/mpesa/transaction

Production: https://www.pesaswap.com/api/integrate/mpesa/transaction

1
2
3
4
5
6
7
8
9
10
11

											$url = BASE URL;

											$dataArray = array('consumer_key'=>'your-key','api_key'=>'your-key');

											$curl = curl_init();

											$data = http_build_query($dataArray);

											$getUrl = $url."?".$data;

											curl_setopt($curl, CURLOPT_SSL_VERIFYPEER, FALSE);

											curl_setopt($curl, CURLOPT_FOLLOWLOCATION, TRUE);

											curl_setopt($curl, CURLOPT_RETURNTRANSFER, TRUE);

											curl_setopt($curl, CURLOPT_URL, $getUrl);

											curl_setopt($curl, CURLOPT_TIMEOUT, 80);

											$curl_response = curl_exec($curl);



Integrate Mpesa Transaction Response - successful request

Sample Value
Mpesa transaction integrated.

Integrate Mpesa Transaction Error Response

Name	Description	Sample Value
error	An error will be shown if parameter is not correct.	{ "error": "Invalid Credentials. Please Check your consumer_key and api_key." }

Payout Notification

How to connect Pesaswap Payout Notification API?

You needed the Endpoint(Live or Sandbox), API Key, Consumer Key.

Payout Notification API is responsible for sending email notifications for completed payouts.

Payout Notification Request Parameters

Method: GET

Parameter	Description	Mandatory
consumer_key	This serves as an api username. Note: Only master-admin keys will work.	Yes
api_key	This serves as an api user password. Note: Only master-admin keys will work.	Yes

How to connect into Pesaswap Payout Notification API?

You needed the API and Consumer Key.

Sandbox: https://devpesaswap.azurewebsites.net/api/payout/notification

Production: https://www.pesaswap.com/api/payout/notification

1
2
3
4
5
6
7
8
9
10
11

											$url = BASE URL;

											$dataArray = array('consumer_key'=>'your-key','api_key'=>'your-key');

											$curl = curl_init();

											$data = http_build_query($dataArray);

											$getUrl = $url."?".$data;

											curl_setopt($curl, CURLOPT_SSL_VERIFYPEER, FALSE);

											curl_setopt($curl, CURLOPT_FOLLOWLOCATION, TRUE);

											curl_setopt($curl, CURLOPT_RETURNTRANSFER, TRUE);

											curl_setopt($curl, CURLOPT_URL, $getUrl);

											curl_setopt($curl, CURLOPT_TIMEOUT, 80);

											$curl_response = curl_exec($curl);



Payout Notification Response - successful request

Sample Value
Payout notification done.

Payout Notification Error Response

Name	Description	Sample Value
error	An error will be shown if parameter is not correct.	{ "error": "Invalid Credentials. Please Check your consumer_key and api_key." }

Payout Scheduler

How to connect Pesaswap Payout Scheduler API?

You needed the Endpoint(Live or Sandbox), API Key, Consumer Key.

Payout Scheduler is responsible in sending payout notifications for existing recurring payouts.

Payout Scheduler Request Parameters

Method: POST

Parameter	Description	Mandatory
consumer_key	This serves as an api username. Note: Only master-admin keys will work.	Yes
api_key	This serves as an api user password. Note: Only master-admin keys will work.	Yes

How to connect into Pesaswap Payout Scheduler API?

You needed the API and Consumer Key.

Sandbox: https://devpesaswap.azurewebsites.net/api/payout/scheduler

Production: https://www.pesaswap.com/api/payout/scheduler

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

											$url = BASE URL;

											$curl_init();

											curl_setopt($curl, CURLOPT_URL, $url);
											curl_setopt($curl, CURLOPT_HTTPHEADER, array('Content-Type:application/json'));

											$curl_post_data = array(

											'consumer_key' => '',

											'api_key' => '',

											);

											$data_string = json_encode($curl_post_data);

											curl_setopt($curl, CURLOPT_RETURNTRANSFER, true);

											curl_setopt($curl, CURLOPT_POST, true);

											curl_setopt($curl, CURLOPT_POSTFIELDS, $data_string);

											$curl_response = curl_exec($curl);

											$response = json_decode($curl_response,true);

Payout Scheduler Response - successful request

Sample Value
{ "Response": "Payout scheduler run successfully" }

Payout Scheduler Error Response

Name	Description	Sample Value
error	An error will be shown if parameter is not correct.	{ "error": "Invalid Credentials. Please Check your consumer_key and api_key." }

Procees Fees

How to connect Pesaswap Procees Fees API?

You needed the Endpoint(Live or Sandbox), API Key, Consumer Key.

Procees Fees is responsible for merchant payin, payout and even processor fees computation base on fees settings.

Procees Fees Request Parameters

Method: POST

Parameter	Description	Mandatory
take	This serves as records limit to minimize the use of RAM.	Yes
consumer_key	This serves as an api username. Note: Only master-admin keys will work.	Yes
api_key	This serves as an api user password. Note: Only master-admin keys will work.	Yes

How to connect into Pesaswap Procees Fees API?

You needed the API and Consumer Key.

Sandbox: https://devpesaswap.azurewebsites.net/api/process/transaction-fees

Production: https://www.pesaswap.com/api/process/transaction-fees

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

											$url = BASE URL;

											$curl_init();

											curl_setopt($curl, CURLOPT_URL, $url);
											curl_setopt($curl, CURLOPT_HTTPHEADER, array('Content-Type:application/json'));




											$curl_post_data = array(

											'take' => '',

											'consumer_key' => '',

											'api_key' => '',

											);



											$data_string = json_encode($curl_post_data);

											curl_setopt($curl, CURLOPT_RETURNTRANSFER, true);

											curl_setopt($curl, CURLOPT_POST, true);

											curl_setopt($curl, CURLOPT_POSTFIELDS, $data_string);

											$curl_response = curl_exec($curl);



Procees Fees Response - successful request

Sample Value
fees has been processed.

Procees Fees Error Response

Name	Description	Sample Value
error	An error will be shown if parameter is not correct.	{ "error": "Invalid Credentials. Please Check your consumer_key and api_key." }

Payment Request Scheduler

How to connect Pesaswap Payment Request Scheduler API?

You needed the Endpoint(Live or Sandbox), API Key, Consumer Key.

Payment Request Scheduler API is responsible for sending email notifications for recurring payment.

Payment Request Scheduler Request Parameters

Method: GET

Parameter	Description	Mandatory
consumer_key	This serves as an api username. Note: Only master-admin keys will work.	Yes
api_key	This serves as an api user password. Note: Only master-admin keys will work.	Yes

How to connect into Pesaswap Payment Request Scheduler API?

You needed the API and Consumer Key.

Sandbox: https://devpesaswap.azurewebsites.net/api/payment/scheduler

Production: https://www.pesaswap.com/api/payment/scheduler

1
2
3
4
5
6
7
8
9
10
11
12

											$url = BASE URL;

											$dataArray = array('consumer_key'=>'your-key','api_key'=>'your-key');

											$curl = curl_init();

											$data = http_build_query($dataArray);

											$getUrl = $url."?".$data;

											curl_setopt($curl, CURLOPT_SSL_VERIFYPEER, FALSE);

											curl_setopt($curl, CURLOPT_FOLLOWLOCATION, TRUE);

											curl_setopt($curl, CURLOPT_RETURNTRANSFER, TRUE);

											curl_setopt($curl, CURLOPT_URL, $getUrl);

											curl_setopt($curl, CURLOPT_TIMEOUT, 80);

											$curl_response = curl_exec($curl);

											$response = json_decode($curl_response,true);



Payment Request Scheduler Response - successful request

Sample Value
{ "Response": "Scheduler run successfully" }

Payment Request Scheduler Error Response

Name	Description	Sample Value
error	An error will be shown if parameter is not correct.	{ "error": "Invalid Credentials. Please Check your consumer_key and api_key." }

Webhook Callback

How to connect Pesaswap Webhook Callback API?

You needed the Endpoint(Live or Sandbox), API Key, Consumer Key.

Webhook Callback API is responsible for sending asynchronous response through merchant's callback url's.

Webhook Callback Request Parameters

Method: GET

Parameter	Description	Mandatory
consumer_key	This serves as an api username. Note: Only master-admin keys will work.	Yes
api_key	This serves as an api user password. Note: Only master-admin keys will work.	Yes

How to connect into Pesaswap Webhook Callback API?

You needed the API and Consumer Key.

Sandbox: https://devpesaswap.azurewebsites.net/api/webhook-callback

Production: https://www.pesaswap.com/api/webhook-callback

1
2
3
4
5
6
7
8
9
10
11
12

											$url = BASE URL;

											$dataArray = array('consumer_key'=>'your-key','api_key'=>'your-key');

											$curl = curl_init();

											$data = http_build_query($dataArray);

											$getUrl = $url."?".$data;

											curl_setopt($curl, CURLOPT_SSL_VERIFYPEER, FALSE);

											curl_setopt($curl, CURLOPT_FOLLOWLOCATION, TRUE);

											curl_setopt($curl, CURLOPT_RETURNTRANSFER, TRUE);

											curl_setopt($curl, CURLOPT_URL, $getUrl);

											curl_setopt($curl, CURLOPT_TIMEOUT, 80);

											$curl_response = curl_exec($curl);

											$response = json_decode($curl_response,true);



Webhook Callback Response - successful request

Sample Value
{ "response": "webhook sent." }

Webhook Callback Error Response

Name	Description	Sample Value
error	An error will be shown if parameter is not correct.	{ "error": "Invalid Credentials. Please Check your consumer_key and api_key." }

Send Access Code - AI

How to connect Pesaswap Send Access Code API?

You needed the Endpoint(Live or Sandbox), API Key, Consumer Key.

Send Access Code is a utility api designed for AI on Pesaswap Chatbot specifically for account balance. When a merchant wants to inquire their paybill balance, they will be prompted for an access code. This API is responsible of sending code to merchant's email in the background.

Send Access Code Request Parameters

Method: POST

Parameter	Description	Mandatory
consumer_key	This serves as an api username. Note: Only master-admin keys will work.	Yes
api_key	This serves as an api user password. Note: Only master-admin keys will work.	Yes
paybill_number	Merchant's mpesa paybill or till code.	Yes

How to connect into Pesaswap Send Access Code API?

You needed the API and Consumer Key.

Sandbox: https://devpesaswap.azurewebsites.net/api/account/balance/access-code

Production: https://www.pesaswap.com/api/account/balance/access-code

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

											$url = BASE URL;

											$curl_init();

											curl_setopt($curl, CURLOPT_URL, $url);
											curl_setopt($curl, CURLOPT_HTTPHEADER, array('Content-Type:application/json'));




											$curl_post_data = array(

											'paybill_number' => '',

											'consumer_key' => '',

											'api_key' => '',

											);



											$data_string = json_encode($curl_post_data);

											curl_setopt($curl, CURLOPT_RETURNTRANSFER, true);

											curl_setopt($curl, CURLOPT_POST, true);

											curl_setopt($curl, CURLOPT_POSTFIELDS, $data_string);

											$curl_response = curl_exec($curl);



Send Access Code Response - successful request

Sample Value
{ "success": "success" }

Send Access Code Error Response

Name	Description	Sample Value
error	An error will be shown if parameter is not correct.	{ "error": "Invalid Credentials. Please Check your consumer_key and api_key." }

Account Balance - AI

How to connect Pesaswap Account Balance API?

You needed the Endpoint(Live or Sandbox), API Key, Consumer Key.

Account Balance is a utility api designed for AI on Pesaswap Chatbot specifically for viewing current mpesa account balance.

Account Balance Request Parameters

Method: GET

Parameter	Description	Mandatory
access code	An access code send to merchant's email	Yes

How to connect into Pesaswap Account Balance API?

You needed the API and Consumer Key.

Sandbox: https://devpesaswap.azurewebsites.net/api/account/balance/record/{access-code}

Production: https://www.pesaswap.com/api/account/balance/record/{access_code}

1
2
3
4
5
6
7
8
9
10
11
12

										$url = BASE URL;

										$dataArray = null;

										$curl = curl_init();

										$data = http_build_query($dataArray);

										$getUrl = $url."?".$data;

										curl_setopt($curl, CURLOPT_SSL_VERIFYPEER, FALSE);

										curl_setopt($curl, CURLOPT_FOLLOWLOCATION, TRUE);

										curl_setopt($curl, CURLOPT_RETURNTRANSFER, TRUE);

										curl_setopt($curl, CURLOPT_URL, $getUrl);

										curl_setopt($curl, CURLOPT_TIMEOUT, 80);

										$curl_response = curl_exec($curl);



Account Balance Response - successful request

Sample Value
{ 'id' : 1, 'paybill_number': 123456, 'working' : 1000, 'utility' :, 'charges : 1000, 'organization' : 'organization' }

Account Balance Error Response

Name	Description	Sample Value
error	An error will be shown if parameter is not correct.	{ "error": "Invalid Credentials. Please Check your consumer_key and api_key." }

Base 64 Code Generator

How to connect Pesaswap Base 64 Code Generator API?

You needed the Endpoint(Live or Sandbox), API Key, Consumer Key.

Base 64 Code Generator is a utility. This code is commonly used in generating access tokens.

Base 64 Code Generator Request Parameters

Method: POST

Parameter	Description	Mandatory
consumer_key	This serves as an api username. Note: Only master-admin keys will work.	Yes
api_key	This serves as an api user password. Note: Only master-admin keys will work.	Yes
username	username.	Yes
password	password.	Yes

How to connect into Pesaswap Base 64 Code Generator API?

You needed the API and Consumer Key.

Sandbox: https://devpesaswap.azurewebsites.net/api/Base64Generator

Production: https://www.pesaswap.com/api/Base64Generator

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

											$url = BASE URL;

											$curl_init();

											curl_setopt($curl, CURLOPT_URL, $url);
											curl_setopt($curl, CURLOPT_HTTPHEADER, array('Content-Type:application/json'));




											$curl_post_data = array(

											'username' => '',

											'password' => '',

											'consumer_key' => '',

											'api_key' => '',

											);



											$data_string = json_encode($curl_post_data);

											curl_setopt($curl, CURLOPT_RETURNTRANSFER, true);

											curl_setopt($curl, CURLOPT_POST, true);

											curl_setopt($curl, CURLOPT_POSTFIELDS, $data_string);

											$curl_response = curl_exec($curl);



Base 64 Code Generator Response - successful request

Sample Value
bFg5T0NCUEwyWENKUE9hc2FzVFpCYXNhczpjZTg1ZTlhOS1jM2FzYXNiNC00NWE5LWI2MjMtZDVjNzI2ZmIxNGE3YXM=

Base 64 Code Generator Error Response

Name	Description	Sample Value
error	An error will be shown if parameter is not correct.	{ "error": "Invalid Credentials. Please Check your consumer_key and api_key." }

Clear Analytics

How to connect Pesaswap Clear Analytics API?

You needed the Endpoint(Live or Sandbox), API Key, Consumer Key.

Clear Analytics is simply clearing the analytics table and ready for new migration again.

Clear Analytics Request Parameters

Method: GET

Parameter	Description	Mandatory
consumer_key	This serves as an api username. Note: Only master-admin keys will work.	Yes
api_key	This serves as an api user password. Note: Only master-admin keys will work.	Yes

How to connect into Pesaswap Clear Analytics API?

You needed the API and Consumer Key.

Sandbox: https://devpesaswap.azurewebsites.net/api/clear/analytics

Production: https://www.pesaswap.com/api/clear/analytics

1
2
3
4
5
6
7
8
9
10
11

											$url = BASE URL;

											$dataArray = array('consumer_key'=>'your-key','api_key'=>'your-key');

											$curl = curl_init();

											$data = http_build_query($dataArray);

											$getUrl = $url."?".$data;

											curl_setopt($curl, CURLOPT_SSL_VERIFYPEER, FALSE);

											curl_setopt($curl, CURLOPT_FOLLOWLOCATION, TRUE);

											curl_setopt($curl, CURLOPT_RETURNTRANSFER, TRUE);

											curl_setopt($curl, CURLOPT_URL, $getUrl);

											curl_setopt($curl, CURLOPT_TIMEOUT, 80);

											$curl_response = curl_exec($curl);



Clear Analytics Request Response - successful request

Sample Value
Record cleared.

Clear Analytics Error Response

Name	Description	Sample Value
error	An error will be shown if parameter is not correct.	{ "error": "Invalid Credentials. Please Check your consumer_key and api_key." }

Credit Offer Computation

How to connect Pesaswap Credit Offer Computation API?

You needed the Endpoint(Live or Sandbox), API Key, Consumer Key.

Credit Offer Computation API is responsible of merchant's loan computation. The API will compute loanable amount base on the current settings.

Credit Offer Computation Request Parameters

Method: POST

Parameter	Description	Mandatory
consumer_key	This serves as an api username. Note: Only master-admin keys will work.	Yes
api_key	This serves as an api user password. Note: Only master-admin keys will work.	Yes

How to connect into Pesaswap Credit Offer Computation API?

You needed the API and Consumer Key.

Sandbox: https://devpesaswap.azurewebsites.net/api/compute/credit/offer

Production: https://www.pesaswap.com/api/compute/credit/offer

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

											$url = BASE URL;

											$curl_init();

											curl_setopt($curl, CURLOPT_URL, $url);
											curl_setopt($curl, CURLOPT_HTTPHEADER, array('Content-Type:application/json'));

											$curl_post_data = array(

											'consumer_key' => '',

											'api_key' => '',

											);

											$data_string = json_encode($curl_post_data);

											curl_setopt($curl, CURLOPT_RETURNTRANSFER, true);

											curl_setopt($curl, CURLOPT_POST, true);

											curl_setopt($curl, CURLOPT_POSTFIELDS, $data_string);

											$curl_response = curl_exec($curl);

											$response = json_decode($curl_response,true);

Credit Offer Computation Response - successful request

Sample Value
{ "success": "Loan computation successfully ran." }

Credit Offer Computation Error Response

Name	Description	Sample Value
error	An error will be shown if parameter is not correct.	{ "error": "Invalid Credentials. Please Check your consumer_key and api_key." }

Merchant Analytics View

How to connect Pesaswap Merchant Analytics View API?

You needed the Endpoint(Live or Sandbox), API Key, Consumer Key.

Merchant Analytics View API is the responsible for viewing analytics record filtered by merchant.

Merchant Analytics View Request Parameters

Method: GET

Parameter	Description	Mandatory
consumer_key	This serves as an api username.	Yes
api_key	This serves as an api user password.	Yes
skip	Number of records to skip.	Yes
take	Number of records to view.	Yes

How to connect into Pesaswap Merchant Analytics View API?

You needed the API and Consumer Key.

Sandbox: https://devpesaswap.azurewebsites.net/api/analytics/view-all-transactions-record

Production: https://www.pesaswap.com/api/analytics/view-all-transactions-record

1
2
3
4
5
6
7
8
9
10
11

											$url = BASE URL;

											$dataArray = array('consumer_key'=>'your-key','api_key'=>'your-key','skip'=>'valid-number','take'=>'valid-number');

											$curl = curl_init();

											$data = http_build_query($dataArray);

											$getUrl = $url."?".$data;

											curl_setopt($curl, CURLOPT_SSL_VERIFYPEER, FALSE);

											curl_setopt($curl, CURLOPT_FOLLOWLOCATION, TRUE);

											curl_setopt($curl, CURLOPT_RETURNTRANSFER, TRUE);

											curl_setopt($curl, CURLOPT_URL, $getUrl);

											curl_setopt($curl, CURLOPT_TIMEOUT, 80);

											$curl_response = curl_exec($curl);



Merchant Analytics View Request Response - successful request

Sample Value
List of records in json format.

Merchant Analytics View Error Response

Name	Description	Sample Value
error	An error will be shown if parameter is not correct.	{ "error": "Invalid Credentials. Please Check your consumer_key and api_key." }

Master-Admin Analytics View

How to connect Pesaswap Master-Admin Analytics View API?

You needed the Endpoint(Live or Sandbox), API Key, Consumer Key.

Master-Admin Analytics View is responsible viewing analytics record for all merchant.

Master-Admin Analytics View Request Parameters

Method: GET

Parameter	Description	Mandatory
consumer_key	This serves as an api username. Note: Only master-admin keys will work.	Yes
api_key	This serves as an api user password. Note: Only master-admin keys will work.	Yes
skip	Number of records to skip.	Yes
take	Number of records to view.	Yes

How to connect into Pesaswap Master-Admin Analytics View API?

You needed the API and Consumer Key.

Sandbox: https://devpesaswap.azurewebsites.net/api/analytics/master-admin/view-all-transactions-record

Production: https://www.pesaswap.com/api/analytics/master-admin/view-all-transactions-records

1
2
3
4
5
6
7
8
9
10
11

											$url = BASE URL;

											$dataArray = array('consumer_key'=>'your-key','api_key'=>'your-key','skip'=>'valid-number','take'=>'valid-number');

											$curl = curl_init();

											$data = http_build_query($dataArray);

											$getUrl = $url."?".$data;

											curl_setopt($curl, CURLOPT_SSL_VERIFYPEER, FALSE);

											curl_setopt($curl, CURLOPT_FOLLOWLOCATION, TRUE);

											curl_setopt($curl, CURLOPT_RETURNTRANSFER, TRUE);

											curl_setopt($curl, CURLOPT_URL, $getUrl);

											curl_setopt($curl, CURLOPT_TIMEOUT, 80);

											$curl_response = curl_exec($curl);



Master-Admin Analytics View Request Response - successful request

Sample Value
List of records in json format.

Master-Admin Analytics View Error Response

Name	Description	Sample Value
error	An error will be shown if parameter is not correct.	{ "error": "Invalid Credentials. Please Check your consumer_key and api_key." }

View Mpesa Missing Transaction

How to connect Mpesa Missing Transaction API?

You needed the Endpoint(Live or Sandbox), API Key, Consumer Key.

Missing Transaction API is a utility api that compares the sql recorded transaction and imported mpesa excel file. It will show what is missing in sql, but available in excel file, and vice versa.

Mpesa Missing Transaction Request Parameters

Method: POST

Parameter	Description	Mandatory
consumer_key	This serves as an api username. Note: Only master-admin keys will work.	Yes
api_key	This serves as an api user password. Note: Only master-admin keys will work.	Yes
start_date	Gateway Start Date - must be matched in excel starting date	Yes
end_date	Gateway End Date - must be matched in excel starting date	Yes
case	1 = found in excel, not in gateway, 2 = found in gateway, not in excel	Yes
file	browse mpesa excel file	Yes
type	sales, payout, funds transfer Note: must match to excel file	Yes
mid	merchant primary key	Yes

How to connect into Mpesa Missing Transaction API?

You needed the API and Consumer Key.

Sandbox: https://devpesaswap.azurewebsites.net/api/mpesa-missing-transaction

Production: https://www.pesaswap.com/api/mpesa-missing-transaction

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22

											$url = BASE URL;

											$curl_init();

											curl_setopt($curl, CURLOPT_URL, $url);
											curl_setopt($curl, CURLOPT_HTTPHEADER, array('Content-Type:application/json'));

											$curl_post_data = array(

											'consumer_key' => '',

											'api_key' => '',

											'start_date' => 'mm/dd/yyyy',

											'end_date' => 'mm/dd/yyyy',

											'case' => '1',

											'file' => 'excelfile.xlsx',

											'type' => 'sales',

											'mid' => '123456',

											);

											$data_string = json_encode($curl_post_data);

											curl_setopt($curl, CURLOPT_RETURNTRANSFER, true);

											curl_setopt($curl, CURLOPT_POST, true);

											curl_setopt($curl, CURLOPT_POSTFIELDS, $data_string);

											$curl_response = curl_exec($curl);

											$response = json_decode($curl_response,true);

Mpesa Missing Transaction Response - successful request

Description	Sample Value
It will show an array of mpesa missing transaction ids	[ "PD8212345", "PD84PD821", "PD2121287" ]

Mpesa Missing Transaction Error Response

Name	Description	Sample Value
error	An error will be shown if parameter is not correct.	{ "error": "Invalid Credentials. Please Check your consumer_key and api_key." }

Transaction Daily Figure

How to connect Transaction Daily Figure API?

You needed the Endpoint(Live or Sandbox), API Key, Consumer Key.

Transaction Daily Figure is the utility api that shows the daily and total amount whithin the specific date range.

Transaction Daily Request Parameters

Method: POST

Parameter	Description	Mandatory
consumer_key	This serves as an api username. Note: Only master-admin keys will work.	Yes
api_key	This serves as an api user password. Note: Only master-admin keys will work.	Yes
start_date	Gateway Start Date - must be matched in excel starting date	Yes
end_date	Gateway End Date - must be matched in excel starting date	Yes
type	sales, payout, funds transfer , etc.	Yes
mid	merchant primary key	Yes

How to connect into Transaction Daily Figure API?

You needed the API and Consumer Key.

Sandbox: https://devpesaswap.azurewebsites.net/api/transactions-daily-figures

Production: https://www.pesaswap.com/api/transactions-daily-figures

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

											$url = BASE URL;

											$curl_init();

											curl_setopt($curl, CURLOPT_URL, $url);
											curl_setopt($curl, CURLOPT_HTTPHEADER, array('Content-Type:application/json'));




											$curl_post_data = array(

											'consumer_key' => '',

											'api_key' => '',

											'start_date' => 'mm/dd/yyyy',

											'end_date' => 'mm/dd/yyyy',

											'type' => 'sales',

											'mid' => '123456'

											);



											$data_string = json_encode($curl_post_data);

											curl_setopt($curl, CURLOPT_RETURNTRANSFER, true);

											curl_setopt($curl, CURLOPT_POST, true);

											curl_setopt($curl, CURLOPT_POSTFIELDS, $data_string);

											$curl_response = curl_exec($curl);

											$response = json_decode($curl_response,true);





Transaction Daily Figure Response - successful request

Description	Sample Value
It will show a json formatted amount of transactions base on specific date range.	{ "total amount": 6500, "daily amount": [ { "amount": 1000, "day": "2021-06-01" }, { "amount": 2000, "day": "2021-06-02" }, { "amount": 3500, "day": "2021-06-03" } ] }

Transaction Daily Figure Error Response

Name	Description	Sample Value
error	An error will be shown if parameter is not correct.	{ "error": "Invalid Credentials. Please Check your consumer_key and api_key." }

Transaction Figure

How to connect Pesaswap Transaction Figure API?

You needed the Endpoint(Live or Sandbox), API Key, Consumer Key.

Transaction Figure is the utility api that double check the transaction details like total amount, status, and even the count.

Transaction Figure Request Parameters

Method: GET

Parameter	Description	Mandatory
merchant_id	Merchant's primary key.	Yes
consumer_key	This serves as an api username. Note: Only master-admin keys will work.	Yes
api_key	This serves as an api user password. Note: Only master-admin keys will work.	Yes
processor_id	Processor's primary key.	Yes
transaction_type	IE. sales, payout, refund	Yes
timezone	EAT or UTC	Yes
period_start_date	start date of transaction.	Yes
period_end_date	end date of transaction.	Yes
status	1-completed, 2-failed, 3-pending, 4-duplicated	Yes

How to connect into Pesaswap Transaction Figure API?

You needed the API and Consumer Key.

Sandbox: https://devpesaswap.azurewebsites.net/api/transaction/figures

Production: https://www.pesaswap.com/api/transaction/figures

1
2
3
4
5
6
7
8
9
10
11
12
13

											$url = BASE URL;

											$dataArray = array('merchant_id'=>'',
																				'consumer_key'=>'your-key',
																				'api_key'=>'your-key',
																				'processor_id'=>'',
																				'transaction_type'=>'',
																				'timezone'=>'',
																				'period_start_date'=>'mm/dd/yyyy',
																				'period_end_date'=>'mm/dd/yyyy',
																				'status'=>'');

											$curl = curl_init();

											$data = http_build_query($dataArray);

											$getUrl = $url."?".$data;

											curl_setopt($curl, CURLOPT_SSL_VERIFYPEER, FALSE);

											curl_setopt($curl, CURLOPT_FOLLOWLOCATION, TRUE);

											curl_setopt($curl, CURLOPT_RETURNTRANSFER, TRUE);

											curl_setopt($curl, CURLOPT_URL, $getUrl);

											curl_setopt($curl, CURLOPT_TIMEOUT, 80);

											$curl_response = curl_exec($curl);



Transaction Figure Request Response - successful request

Sample Value
[ { "merchant": "Merchant Name", "processor": "mpesa", "total": 1000000, "status": "Completed", "transaction_count": 1000 } ]

Transaction Figure Error Response

Name	Description	Sample Value
error	An error will be shown if parameter is not correct.	{ "error": "Invalid Credentials. Please Check your consumer_key and api_key." }
